BODY / STEERING / SUSPENSION
5.5
COVER/PANEL REMOVAL
To remove, perform these steps:
Seat:
G Pull release lever at the rear of the seat
G Lift and pull seat rearward, disengaging
seat from tabs at the rear of the fuel tank
Side Panels
G Remove: Seat
G Disengage tabs at front and rear
Headlight Pod (See Page 5.5)
Front Cover
G Remove: Seat
G Disengage tabs at front and rear
G Lift panel out
Rear Rack
G Remove: Seat
G 2 bolts at rear of rack
G 2 bolts at front of rack
Rear Cab Assembly
G Remove: Seat
G Rear rack
G 1 screw, nut and washer at rear of inner
left footrest
G 4 screws at bottom of left rear mudflap
G 1 screw, nut and washer at rear of inner
right footrest
G 4 screws at bottom of right rear mudflap
G 4 bolts and flat washers from top of cab
assembly, under seat
G 2 screws at rear bottom of cab assembly
near tail light
G Disconnect taillight harness
Front Rack
G Remove: 4 screws, lock washers, and
flat washers
Front Cab Assembly
G Remove: Seat
G Side panels
G 2 screws at rear of cab at fuel tank
mount bracket
G Front rack
G Front bumper
G Front cover panel
G 3 screws from bottom left mudflap
G 3 screws from bottom right mudflap
G 1 inner screw from front cab to foot
rest on each side
G 2 screws under front panel

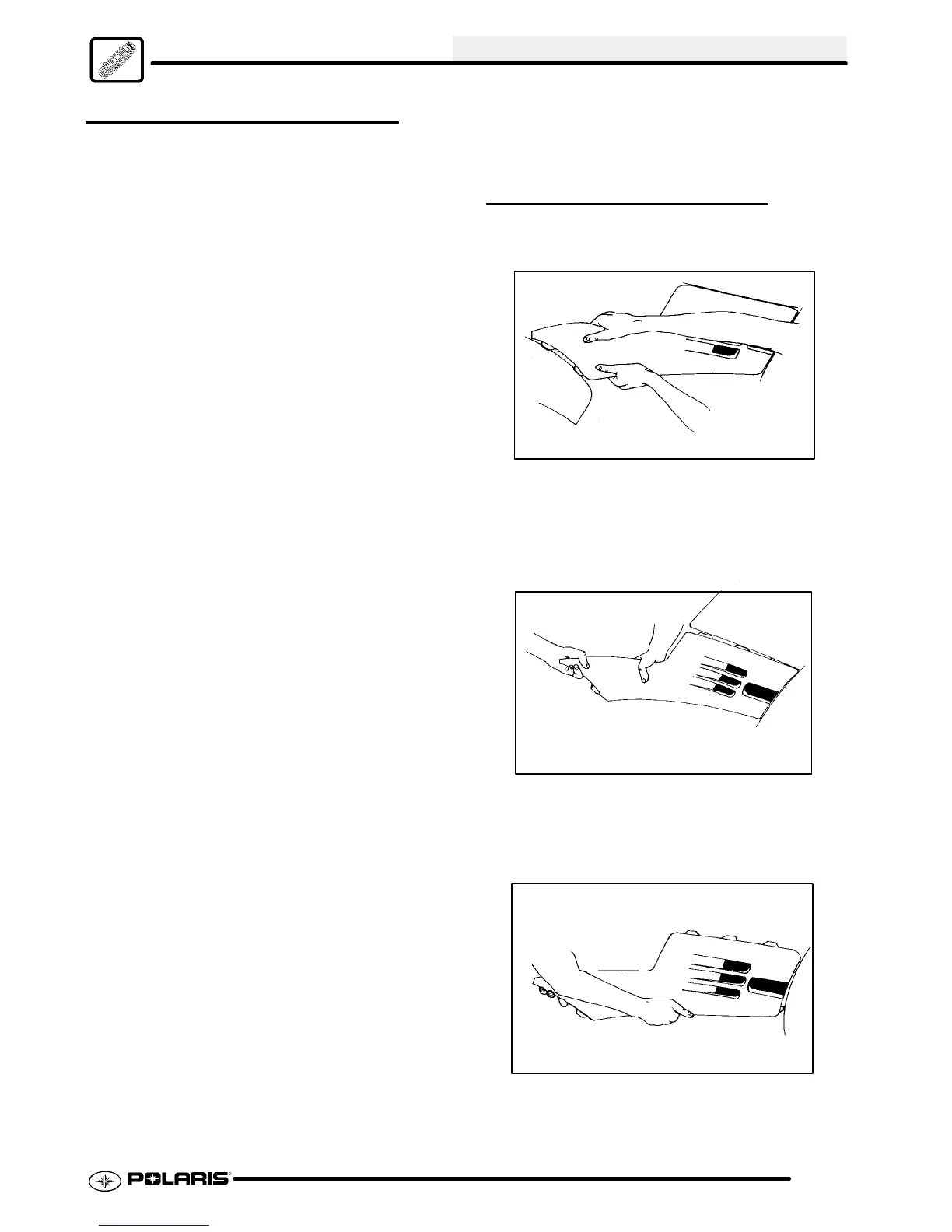

SIDE PANEL REMOVAL
1. Remove seat. Grasp rear of panel near rear cab.
With a quick and firm motion, pull panel forward
and outward to disengage the two rear tabs.
Pull forward and out to disengage
two rear tabs.
Step 1.
2. Place hand on top of side panel behind the fuel
tank. With a quick and firm motion, push down on
the side panel to disengage the top rear tabs.
Then pull up on side panel to disengage front
tabs.
Push down to disengage top rear
two tabs.
Step 2.
3. To reinstall side panel, align panel tabs with slots
on front cab. Push panel upward and forward until
tabs lock. Bend rear of side panel and insert the
two tabs into the rear cab.
To reinstall, align panel tabs with slots.
Push upward and forward until tabs lock.
Step 3.
