FINAL DRIVE
7.6
CONCENTRIC SWINGARM
REAR AXLE REMOV
AL

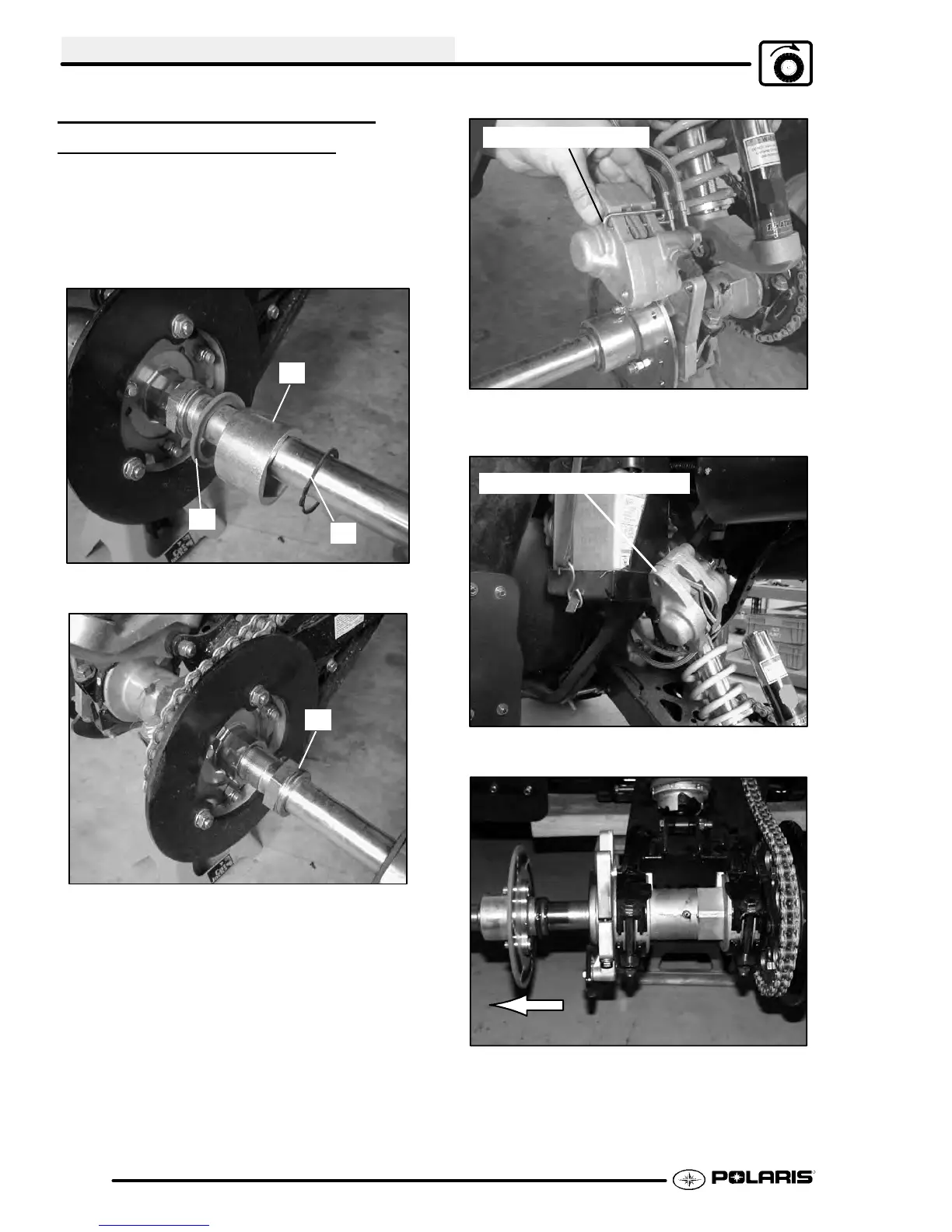

1. Securely support rear of machine with rear wheels
off the floor . Remove rear wheels and hubs.
2. Remove drive chain.
3. Remove snap ring (A), lock sleeve (B) and foam
seal (C) from axle.
A
B
C
4. Remove sprocket hub nut (D).
D
5. Remove the two rear brake caliper bolts. Remove
the rear brake caliper.
Remove Rear Caliper
6. Support rear caliper with wire or a tie strap. Do not
hang caliper by brake line.
Support Caliper from Frame
7. Slide axle assembly out left side.
