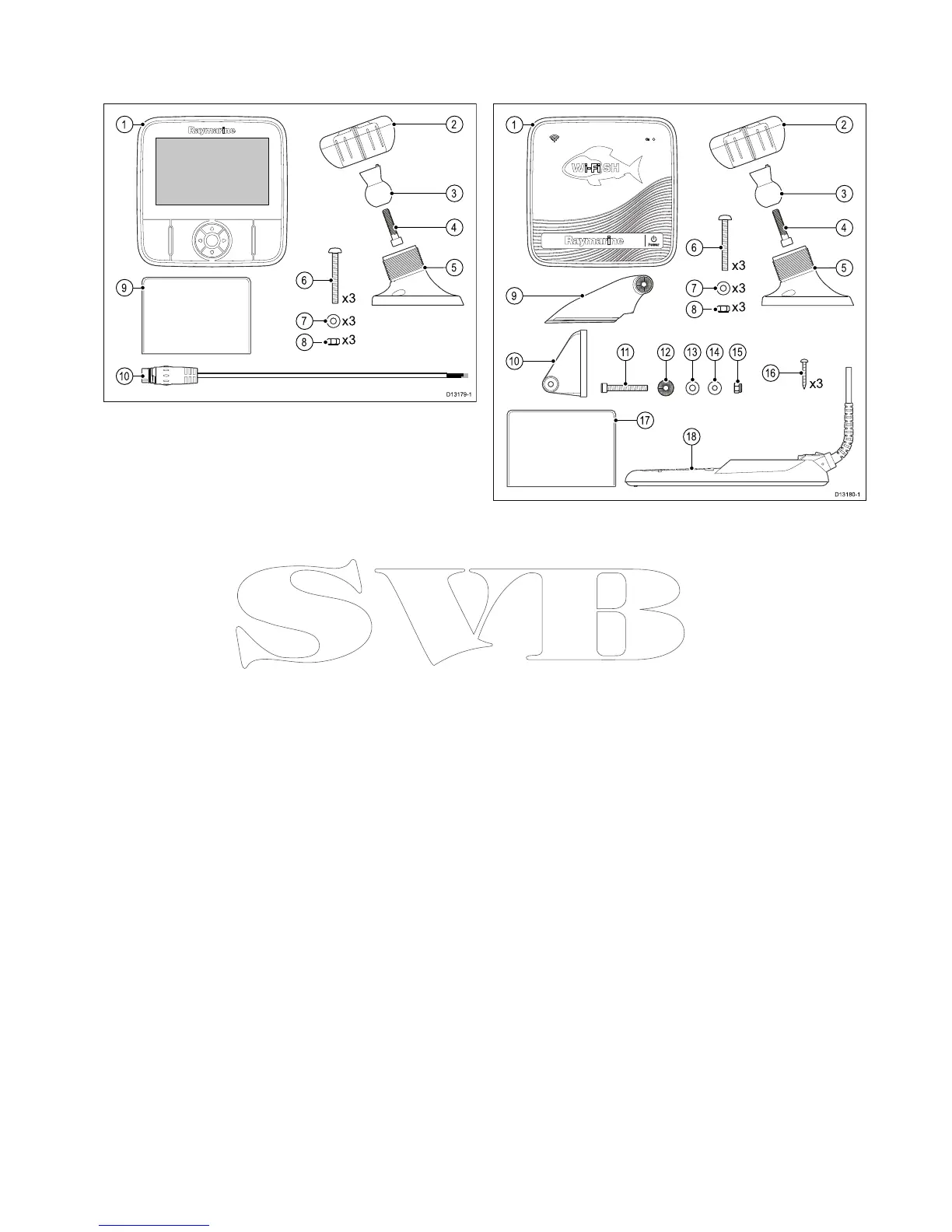

3.3Partssupplied–5M
Thepartssuppliedwithyourproductareshown
below.
D13179-1
1
9
10
6
7
8
2
3
4
5
x3
x3
x3
1.Displayunit
2.Lockingcollar
3.Pivotball
4.M6Hexbolt
5.Displaybracketbase
6.3xM5pozi-drivebolt
7.3xM5washer
8.3xM5lockingnut
9.Documentation
10.1.5m(4.9ft.)Powercable
3.4Partssupplied–Wi-Fish
TM
Thepartssuppliedwithyourproductareshown
below.
D13180-1
1
9
10
16
6
7
8
2
3
4
5
17
x3
x3
x3
x3
11
18
12 13 14 15
1.Wi-Fish
TM
unit
2.Lockingcollar
3.Pivotball
4.M6Hexbolt
5.Unitbracketbase
6.3xM5pozi-drivebolt
7.3xM5washer
8.3xM5lockingnut
9.Ratchetarm
10.Mountingbracket
11.M5Hexratchetbolt
12.Ratchetplate
13.Compressionwasher
14.M5washer
15.M5lockingnut
16.3xSelftappingscrews
17.Documentation
18.Transducerwithcombinedpowercable
Planningtheinstallation
21
