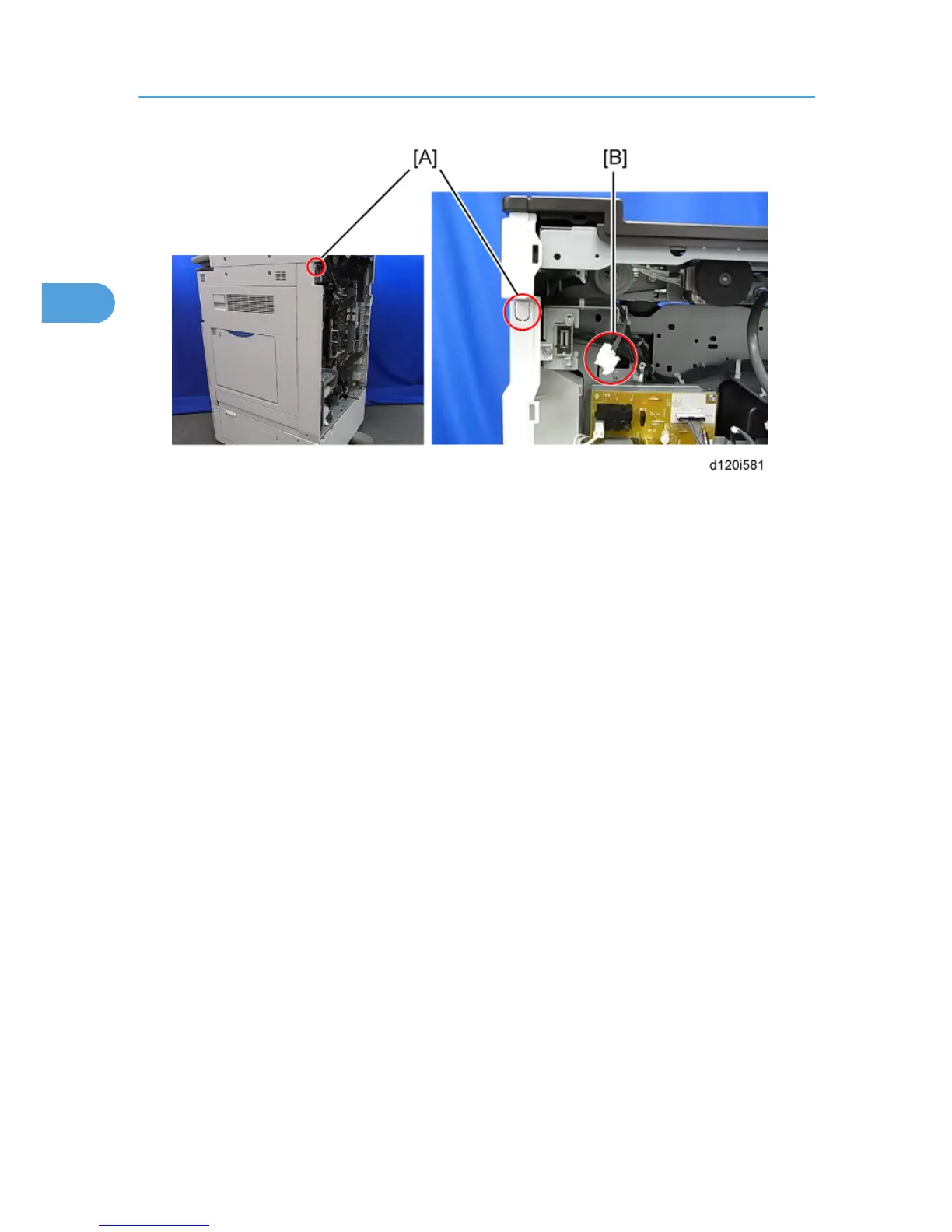

5. Cut off the part [A] of the right rear cover.
6. Connect the key counter harness to the connector [B] through the cut off part of the rear cover.
7. Peel off double sided tape on the key counter bracket and attach the key counter to the scanner
right cover.
8.
Reassemble the machine.
2. Installation
118
2
