Rear Scanner Wire
Reinstalling the Rear Scanner Wire

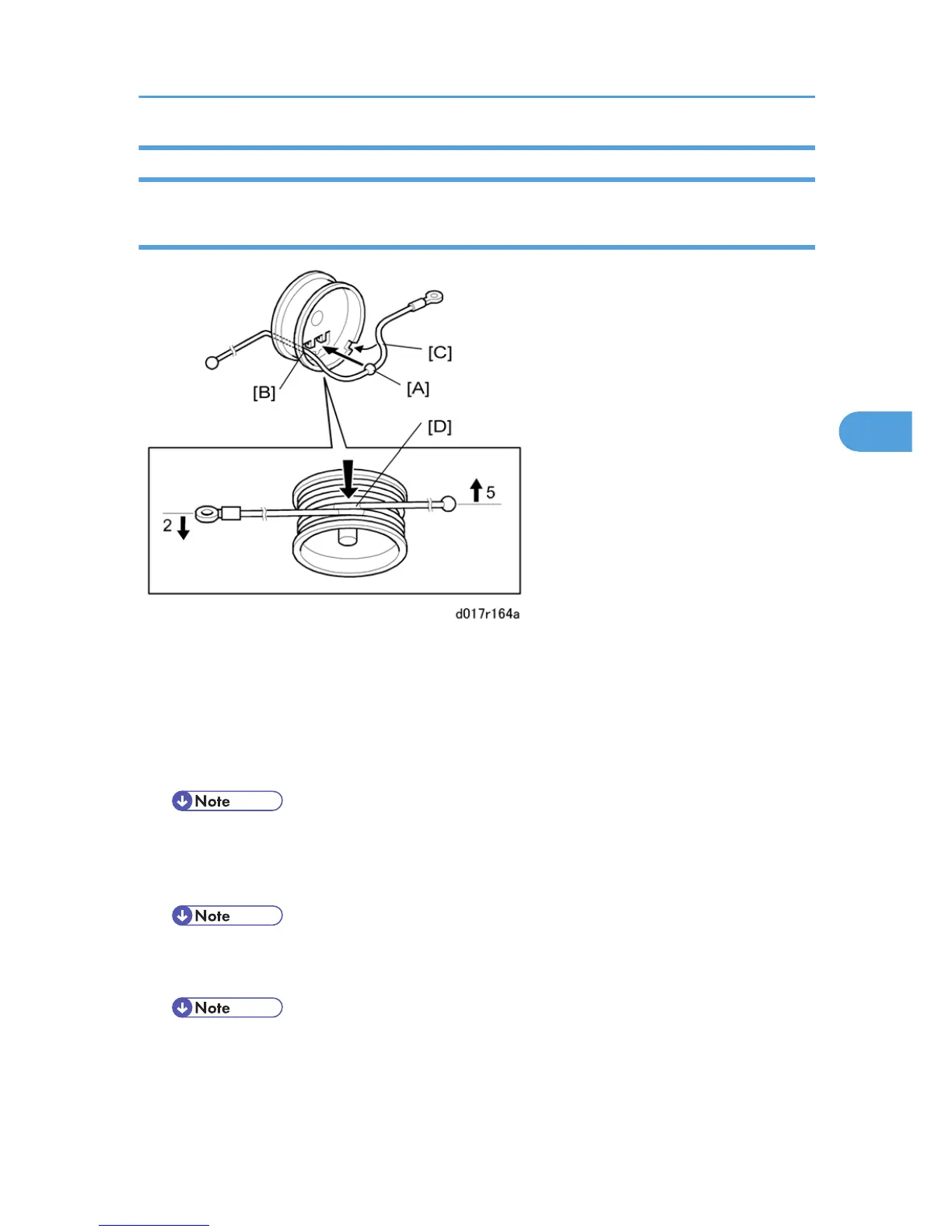

1. Position the center ball [A] in the middle of the forked holder.
2. Pass the left end (with the ball) [B] through the drive pulley notch.
3. Pass the right end (with the ring) [C] through the drive pulley notch.
4.
Wind the left end [B] clockwise (from the machine front) five times.
5. Wind the right end [C] counterclockwise twice.
• The two red marks [D] come together after winding. Attach the wire to the pulley with tape.
This lets you easily handle the assembly at installation.
6. Install the drive pulley on the shaft.
• Do not attach the pulley on the shaft with the screw at this time.
7. Install the wire.
• The winding of the wire on the three pulleys at the rear of the scanner should be the same as
the winding on the three pulleys at the front. This must show as a mirror image.
• At the front of the machine, the side of the drive pulley with the two windings must face the
front of the machine.
Scanner Unit
203
4
