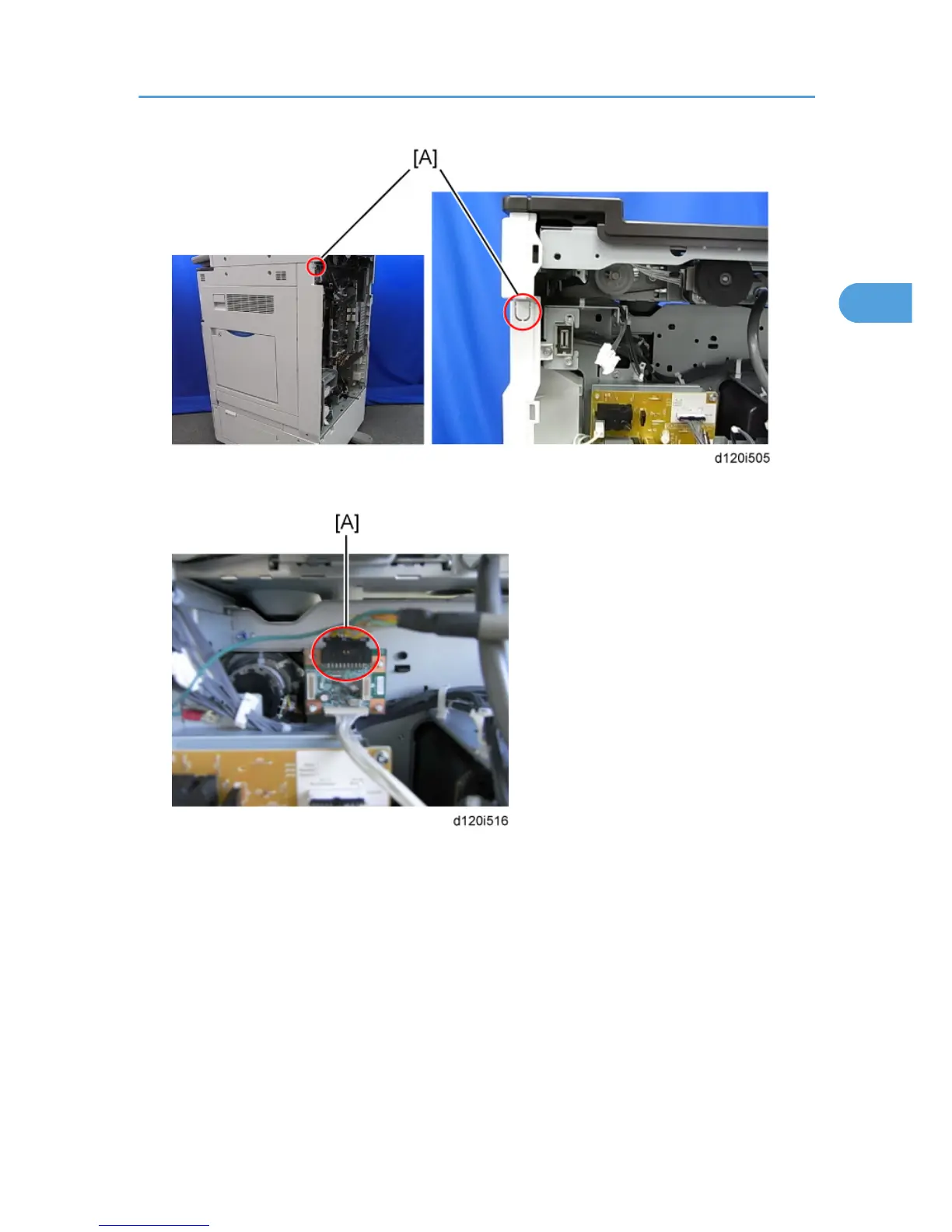

8. Cut off the part [A] of the right rear cover.
9. Connect the harness from the optional counter device to "CN4" [A] on the optional counter
interface board through the cut off part of the right rear cover.
10.
Reassemble the machine.
Optional Counter Interface Unit Type A (B870)
121
2
