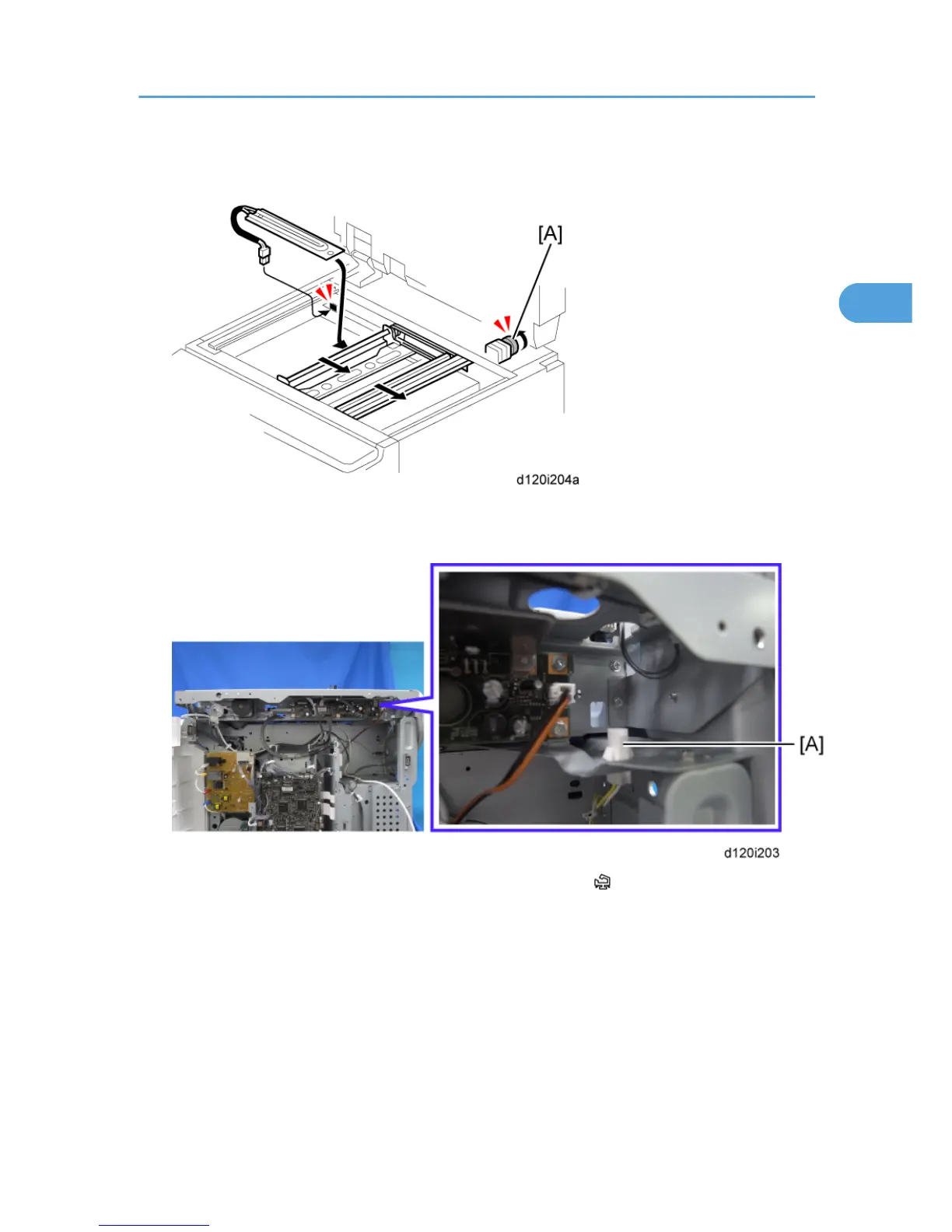

4. Move the scanner carriage to the right side by rotating the scanner motor [A].
5. Put the heater connector through the cut out.
6. Connect the heater connector to [A] in the frame of the machine ( x 1).
Heaters
123
2
