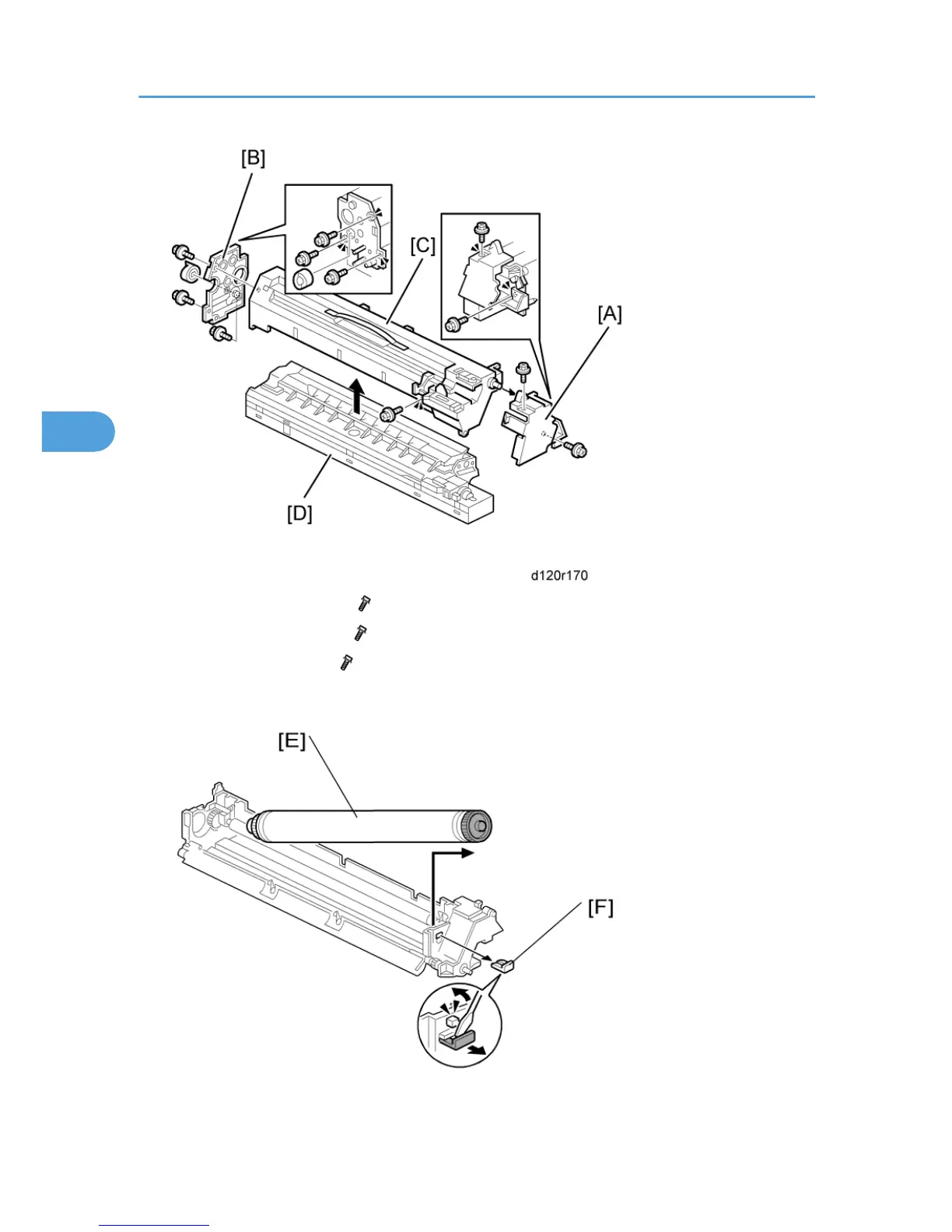

2. Remove the front cover [A] ( x2).
3. Remove the rear cover [B] ( x3, Coupling x1).
4. Remove the top part [C] ( x1).
5. Remove the bottom part [D].
6. Replace the drum [E] (White clip x1 [F]).
4. Replacement and Adjustment
212
4
