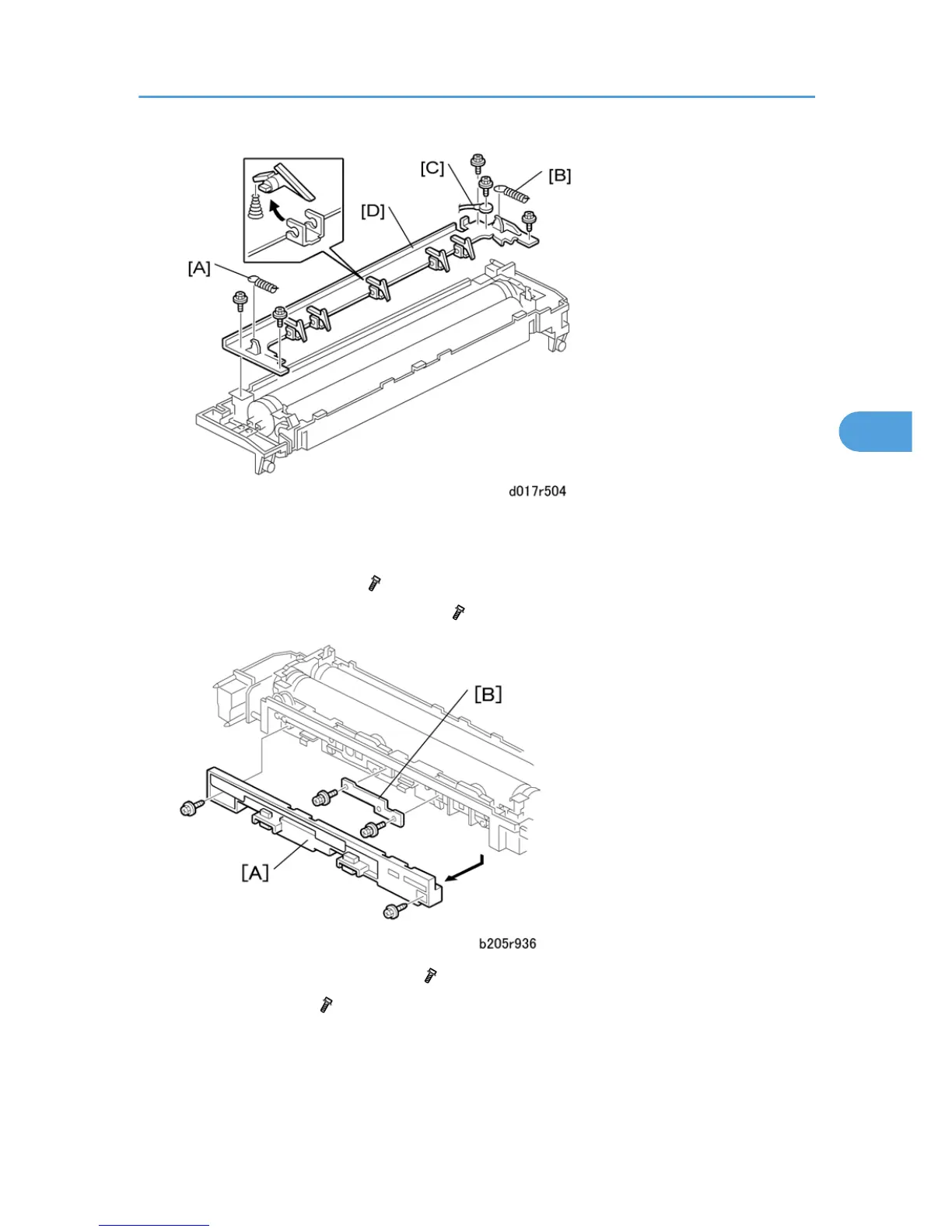

3. Remove the pressure spring [A].
4. Remove the pressure spring [B].
5. Remove the ground wire [C] ( x1).
6. Remove the hot roller stripper bracket [D] ( x4).
7. Remove the thermostat cover [A] (Tap x 2).
8.
Remove the plate [B] (
x 2 , spring washers).
Fusing/Exit
225
4
