Publication 2711C-QS001F-EN-P - November 2010 39
Configure Communication Chapter 4

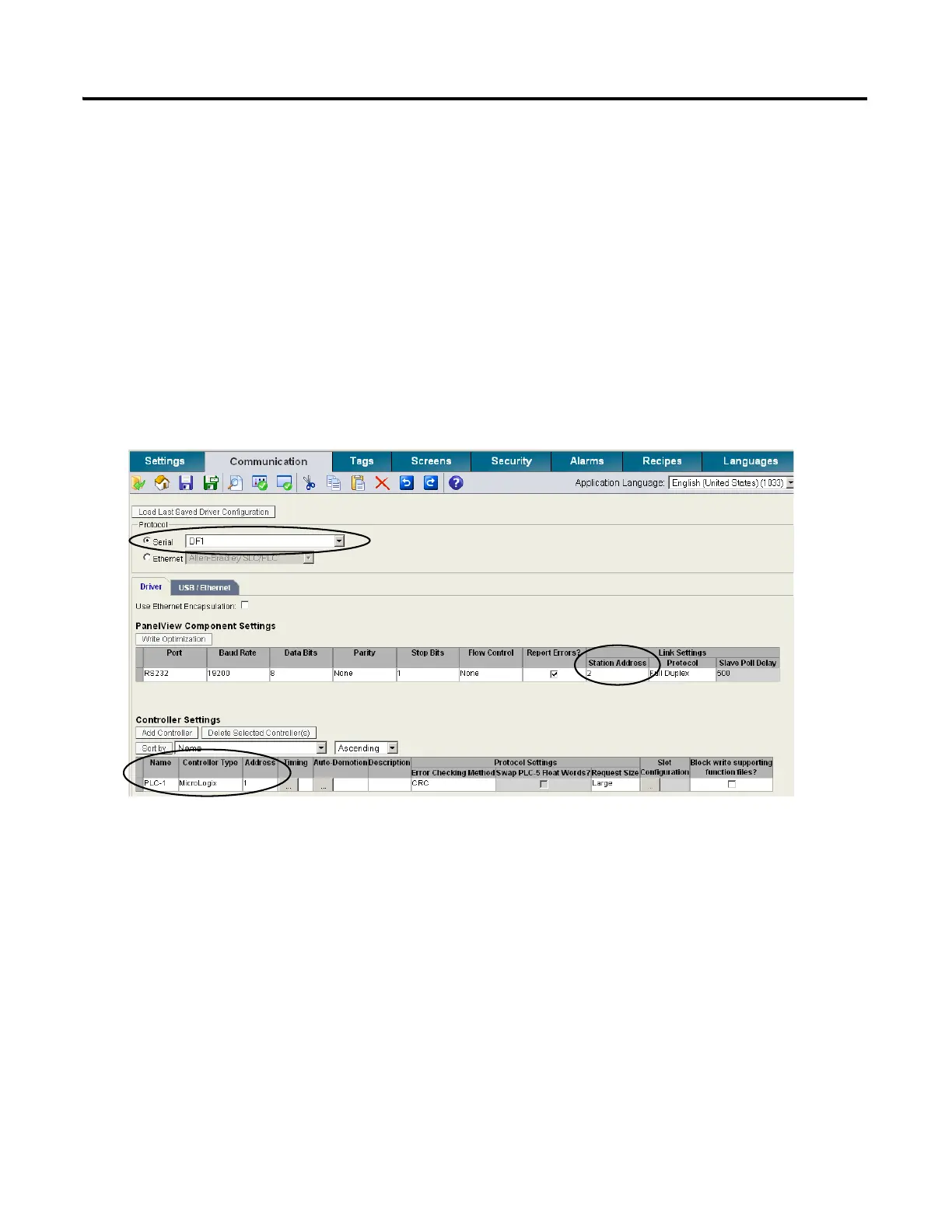

Configure DF1 Communication
This topic shows how to configure runtime settings to enable DF1 point-to-point communication between
your PanelView Component terminal and a MicroLogix 1100 controller. The DF1 settings for the PanelView
Component terminal match the default settings of the MicroLogix controller.
1. Click the Communication
tab to open the
Communication view.
2. Select Serial under Protocol
and DF1 from the pull-down
list.
3. Under PanelView
Component Settings, verify
the Station Address is 2.
4. Under Controller Settings:
a. Accept the default name
PLC-1.
b. Select MicroLogix from
the Controller Type field.
c. Type 1 in the Address
field.
To Next Page
