Rockwell Automation 2711C-F2M Quick Start Manual

Publication 2711C-QS001F-EN-P - November 2010 59
Create the Motor Status Screen Chapter 6

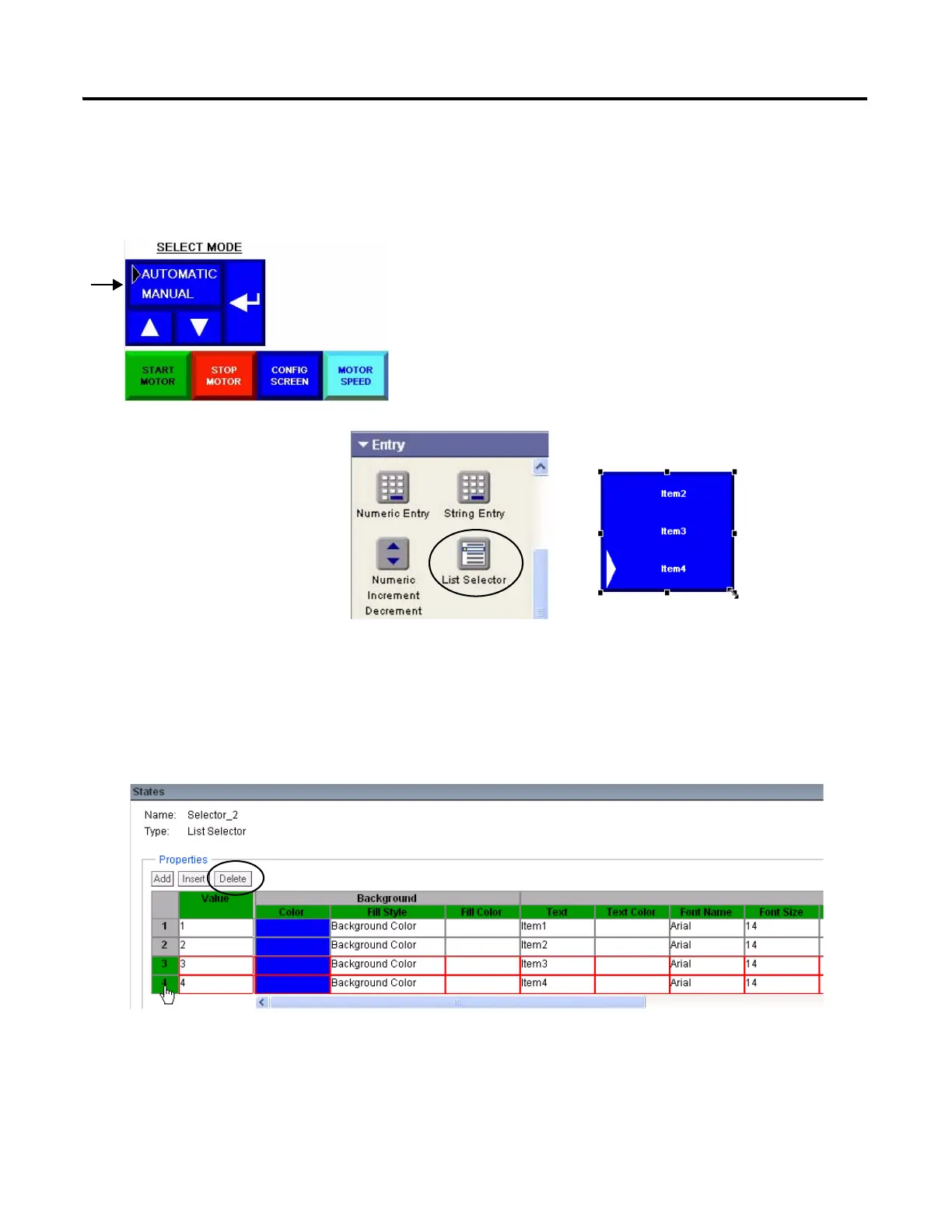

Create the Motor Control List Selector
The motor control list selector lets you switch the motor between manual and automatic mode.
1. Open the Entry tab of the
object palette.
2. Drag the List Selector object
to the area above the Start
Motor and Stop Motor push
buttons.
3. Double-click the object to
open the States editor.
The list selector is created
with four states. This
example uses only two.
