42 Publication 2711C-QS001F-EN-P - November 2010
Chapter 4 Configure Communication
Load Runtime Settings with Application
This section does not apply to the sample application but is information that you may find helpful when
creating future applications. There may be times when you want to load an application on a terminal that has
a static IP network address. Static IP addresses for a terminal are entered on the USB/Ethernet tab of the
Communication tab. It is important that you load these communication settings with the application the first
time the application is loaded on the target terminal.

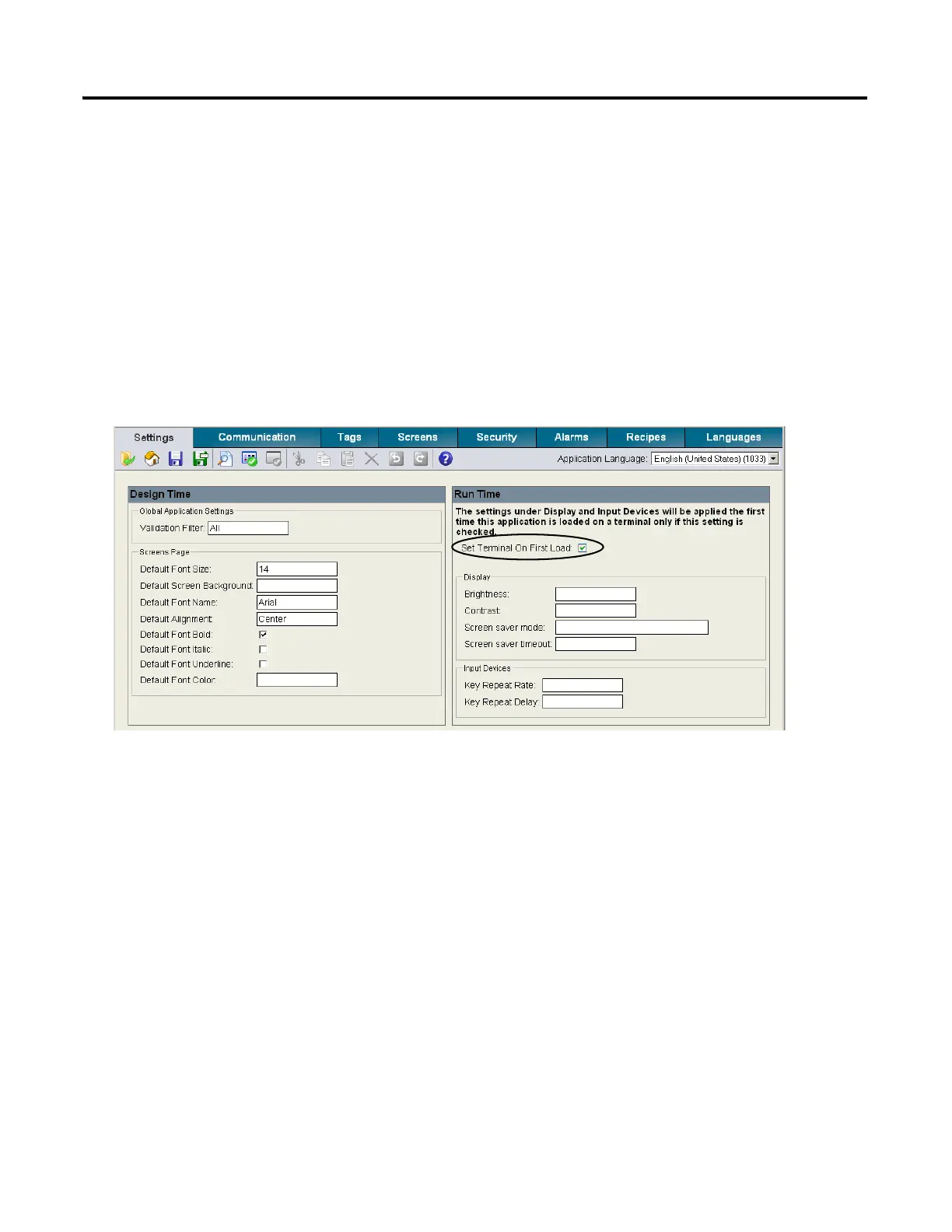

1. Click the Settings tab.
2. Check the Set Terminal On
First Load checkbox.
When the Set Terminal On First Load checkbox is checked, the first time the application is loaded to the
terminal, the communication settings and any other settings that you update under Runtime will be loaded
with the application.
