Publication 2711C-QS001F-EN-P - November 2010 85
Create the Motor Speed Screen Chapter 7

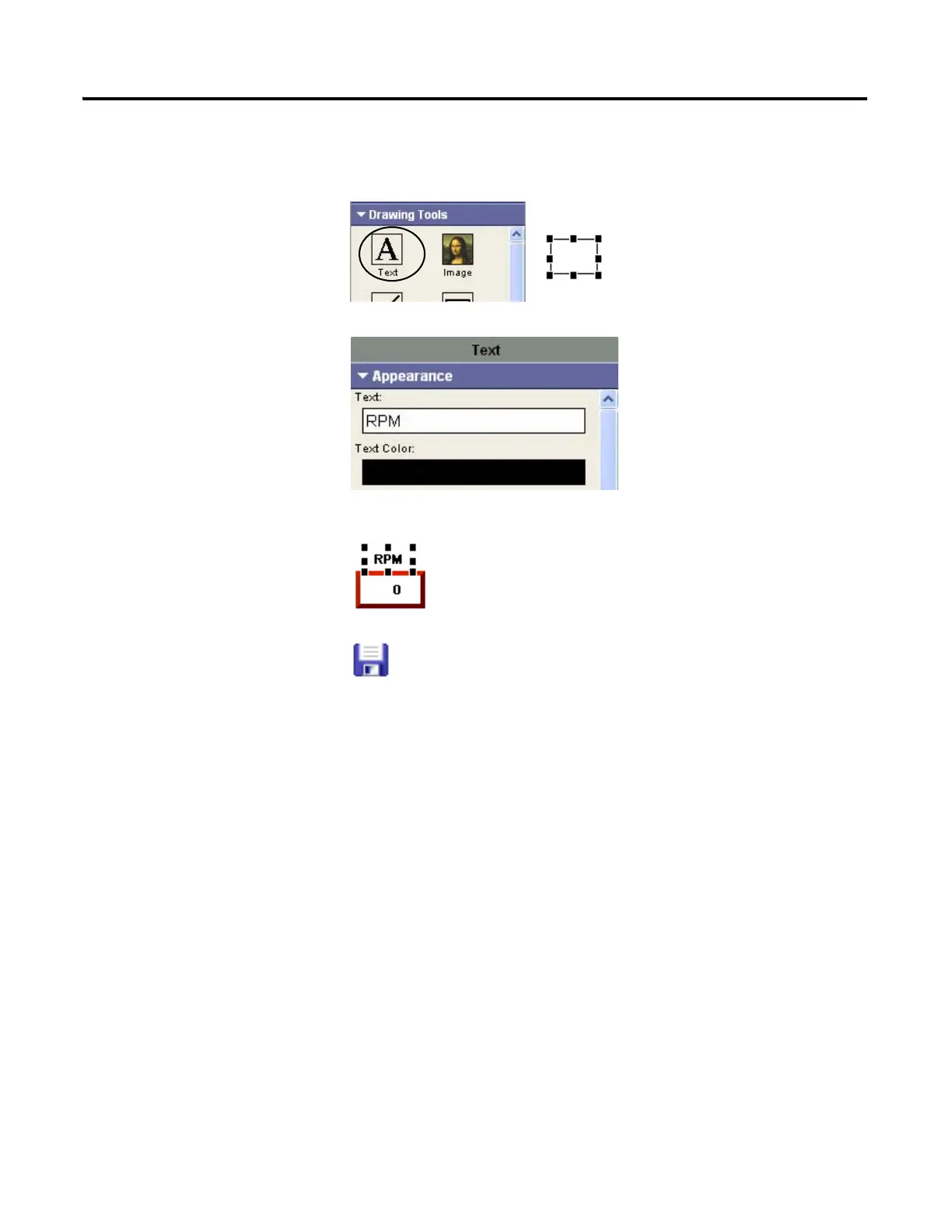

Create a Heading for the Numeric Display
1. Open the Drawing Tools tab
of the object palette.
2. Drag the Text tool above the
numeric display object.
3. On the Appearance tab:
a. Type RPM in the Text
field.
b. Set the Border Style to
None.
Scroll to see all fields.
4. Resize the object.
5. Click the Save icon to save
the application.
