78 Publication 2711C-QS001F-EN-P - November 2010
Chapter 7 Create the Motor Speed Screen

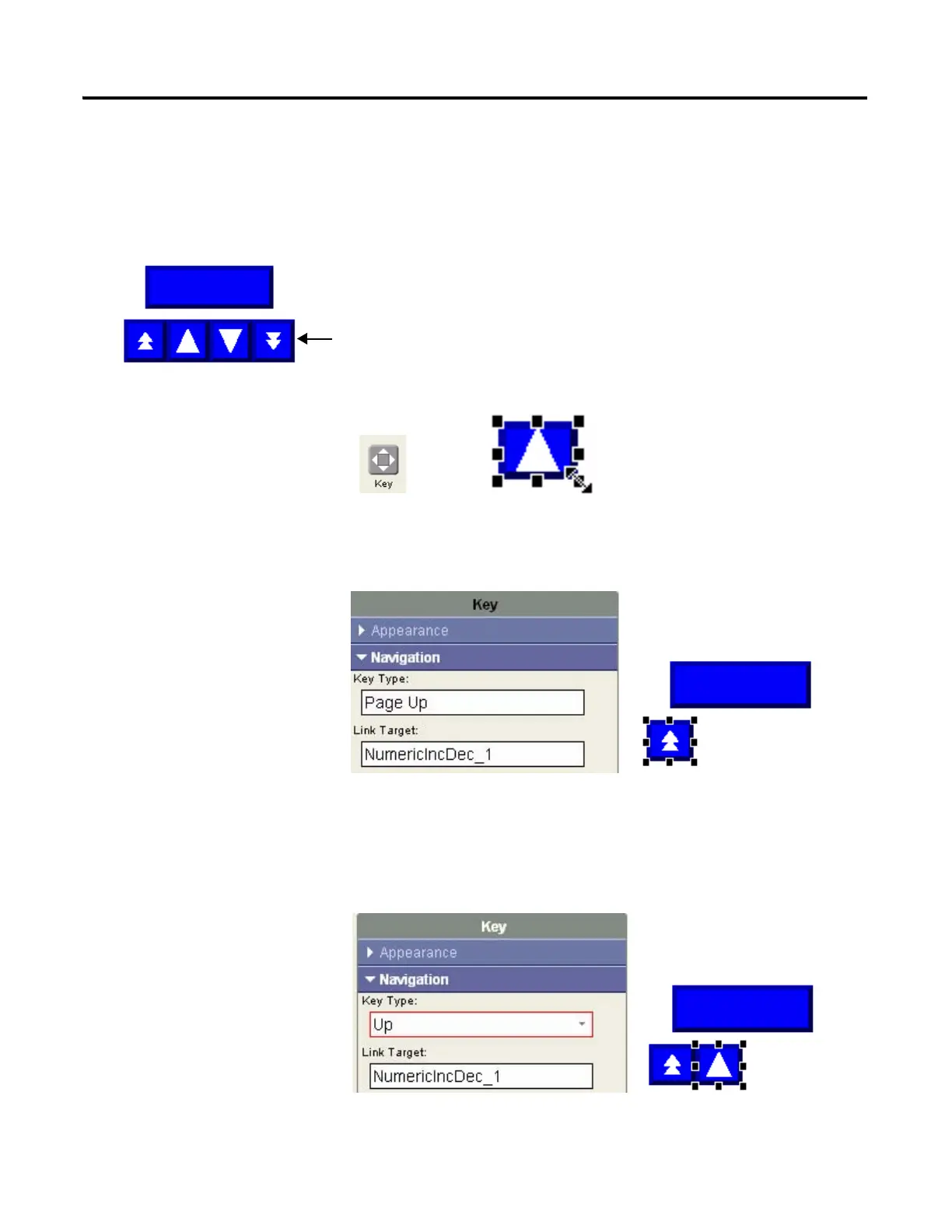

Create Increment Decrement Keys
Keys are used to increase or decrease the motor speed displayed in the numeric increment decrement object.
The double arrows increase or decrease the speed in 10 rpm increments. The single arrows increase or
decrease the speed in 1 rpm increments.
1. Open the Entry tab of the
object palette.
2. Drag the Key object below
the increment decrement
object on the left side.
3. Resize the object.
4. Open the Navigation tab of
the Properties panel.
a. Select Page Up from
the Key Type field.
b. Type NumericIncDec_1
in the Link Target field.
This links the key to the
increment decrement
object. The object name is
on the Common tab of
the Properties panel.
5. Click on the Page Up key
just created, then press
Ctrl+C then Ctrl+V to copy
and paste the key.
6. Move the pasted object to
right of the first key.
7. On the Navigation tab, select
Up as the Key Type.
