Run the Motor in Manual Mode
In manual mode, you have control of the motor. You can change the motor speed by using the numeric entry
object or the numeric increment decrement object. The numeric entry object opens a keypad where you enter
a new value. The numeric increment decrement object lets you change the motor speed in steps using keys.
To view the new motor speed, you must restart the motor.
The alarm banner will pop up over the displayed screen if the motor speed rises to 850 or above. Click the
Ack button to acknowledge each alarm and close the banner.

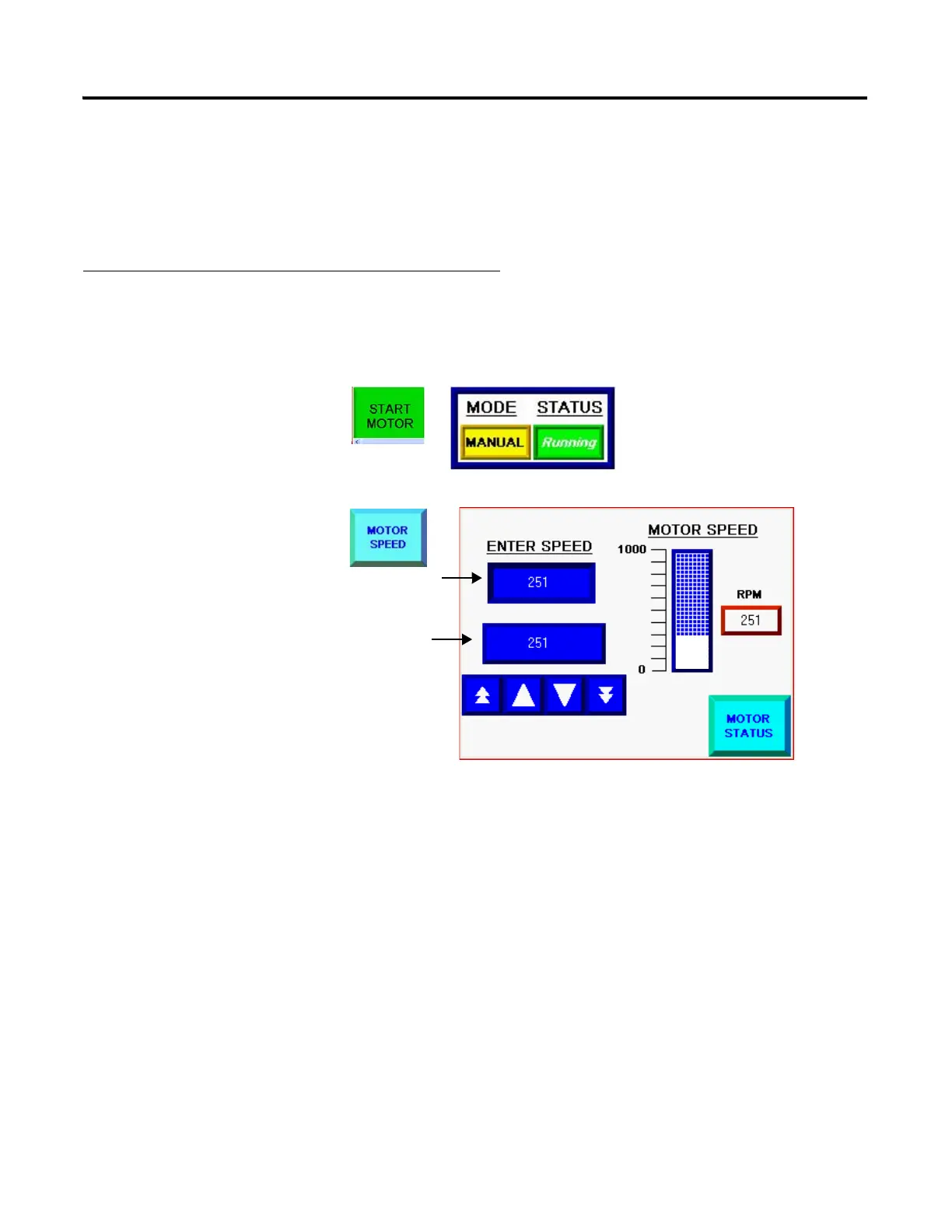

1. Press the Start Motor button
to start the motor.
The indicators shows the
motor is running and in
manual mode.
2. Press the Motor Speed
button to go to the Motor
Speed screen.
The numeric entry objects
show the current speed,
which is also displayed in
the bar graph and
numeric display.
