Create the Motor Speed Screen Chapter 7
Create a Numeric Entry Object
The numeric entry object lets you change the speed of the motor in manual mode by entering an integer
value. The object does not display a value until runtime.

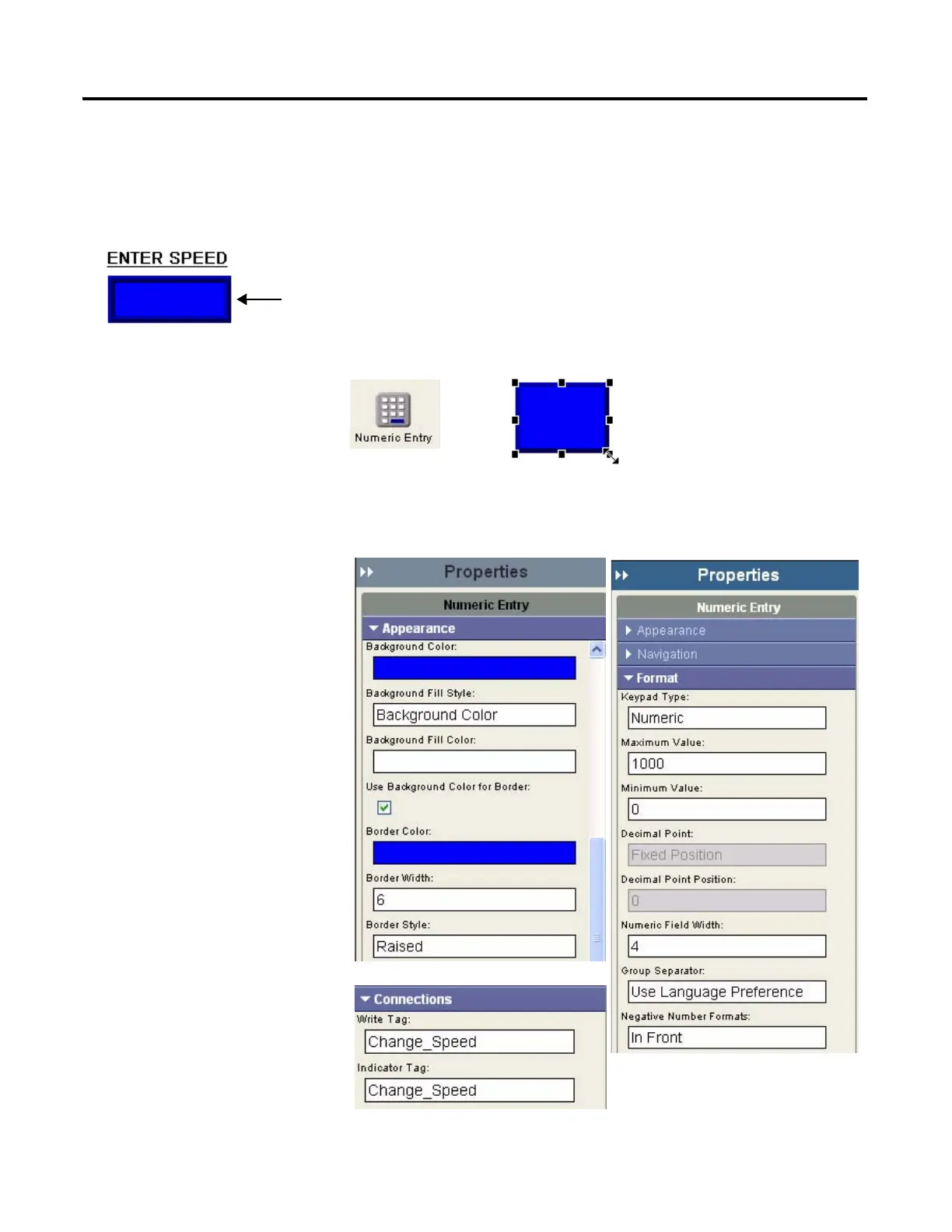

1. Open the Entry tab of the
object palette.
2. Drag the Numeric Entry
object to the left side of the
screen.
3. Resize the object.
4. On the Appearance tab of
the Properties panel:
a. Change the Border
Width to 6.
b. Set the Border Style to
Raised.
5. Open the Format tab:
a. Select Numeric as the
Keypad Type.
b. Type 1000 for the
Maximum Value.
c. Type 0 for the
Minimum Value.
d. Type 4 for the Numeric
Field Width.
6. On the Connections tab,
select Change_Speed as the
Write tag and the Indicator
tag.
