Create the Motor Speed Screen Chapter 7
Create a Bar Graph Heading

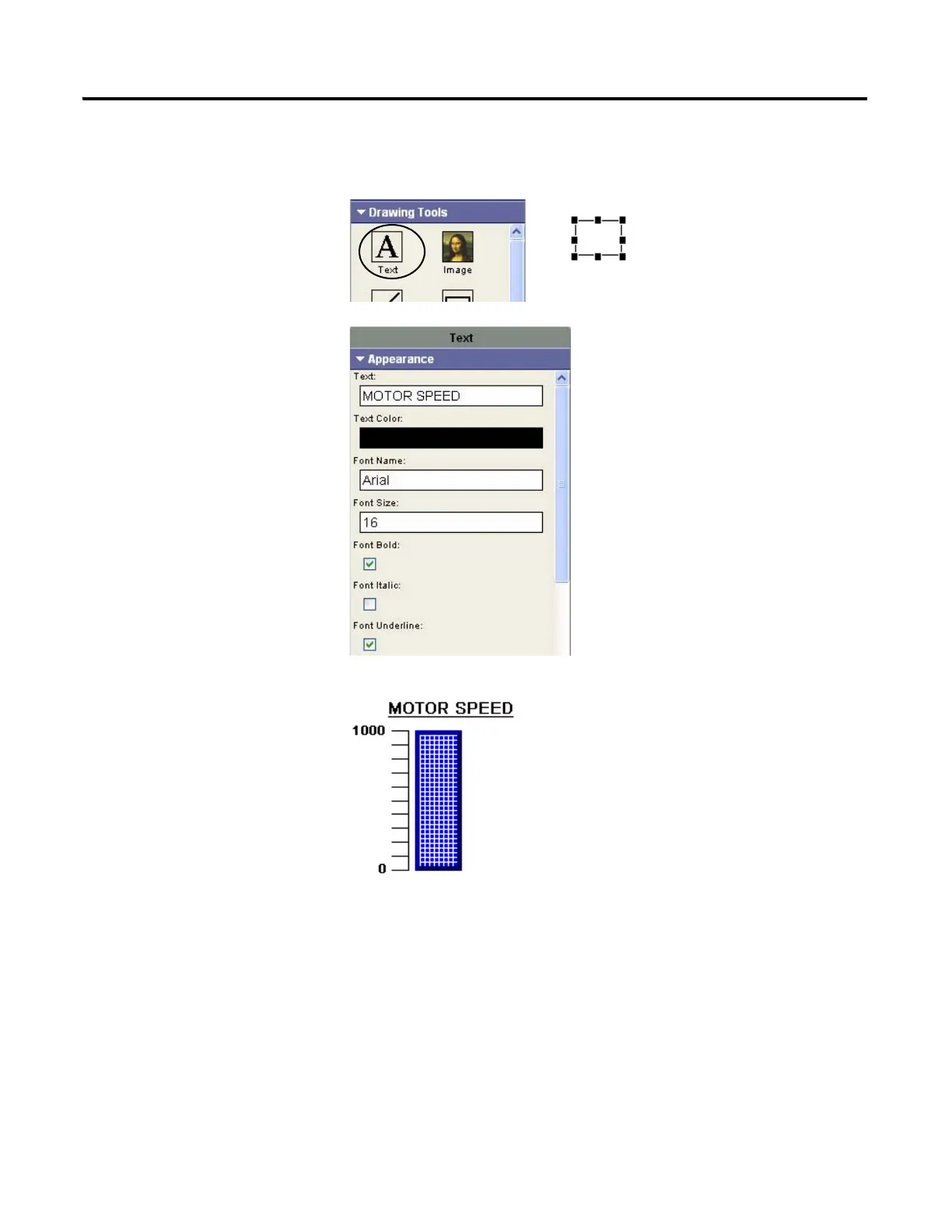

1. Drag another text object
from the object palette
above the bar graph.
2. On the Appearance tab:
a. Type MOTOR SPEED
in the Text box.
b. Set the Font Size to 16.
c. Check the Font
Underline checkbox.
d. Set the Border Style to
None.
Scroll down to see all the
properties.
3. Resize the object to fit all the
text and place above bar
graph.
