SATO CL6NX Service Manual

9
CL4NX/CL6NX Service Manual
This is supplementary information to the Chapter 4 Operation and Configuration of the CL4NX/
CL6NX operator manual. For other detailed information on operation and configuration, refer to the
CL4NX/CL6NX operator manual. In this chapter, we only explain the operation and configuration in the
Service menu.

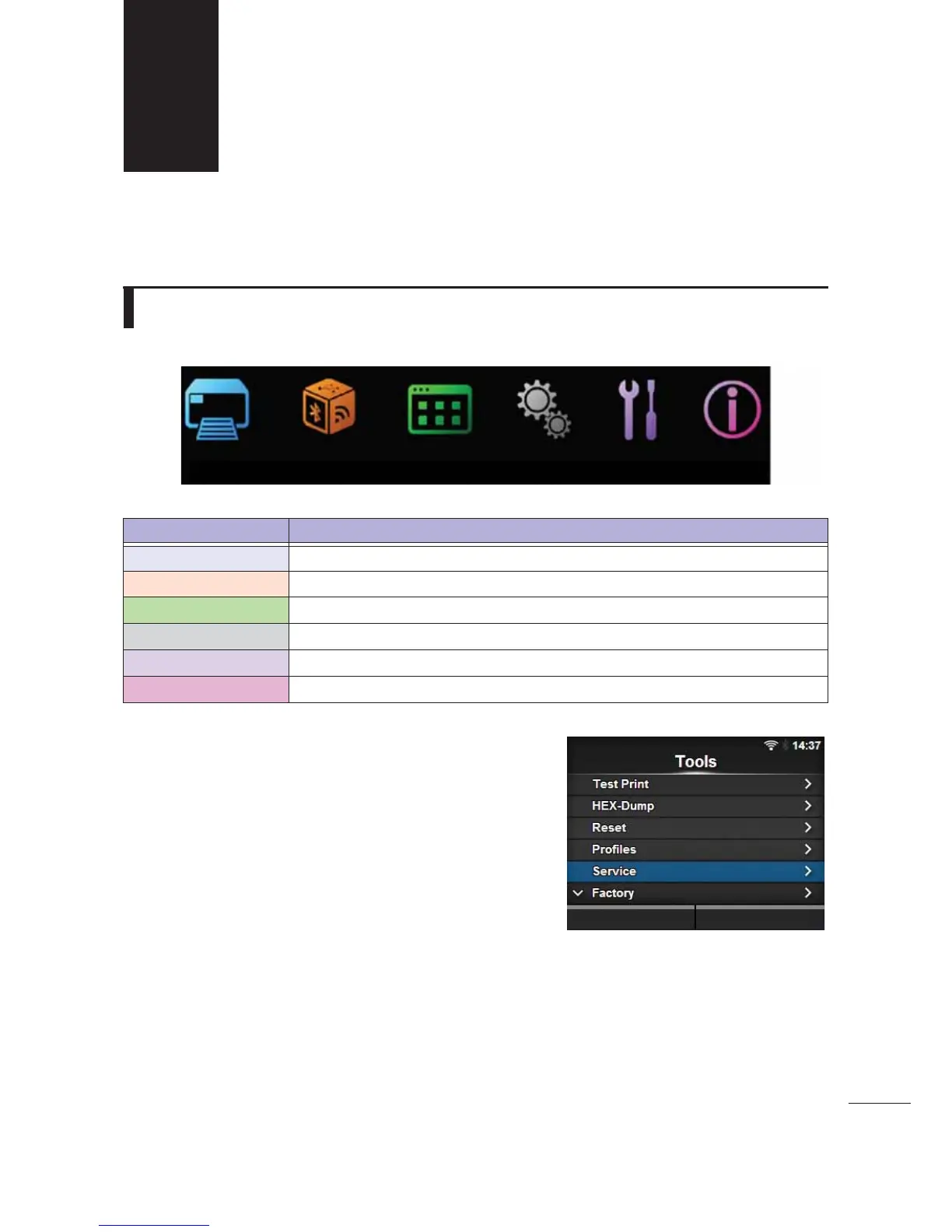

2.1 About Service Menu
In settings mode, the following menus show:
You can find the Service menu in the Tools menu.
However, users cannot access the Service menu
without password. This menu is only for SATO
authorized service personnel use.
2
Operation and
Configuration
Menu Description
Printing Access the settings related to printing.
Interface Access the settings related to the interfaces.
Applications Access the settings related to the printer command.
System Access the settings related to the display language, buzzer volume etc.
Tools Access the test print, initialization and other settings.
Information Access the printer information and help videos.
Tools InformationSystemApplicationsInterfacePrinting

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
