SATO CL6NX Service Manual

5 Replacement
81
CL4NX/CL6NX Service Manual
5.7 Replacing the Power Supply Unit
CL4NX
Required tool:
• Phillips screwdriver (JIS #2 or equivalent)
1 Make sure that the printer is in power off mode, then disconnect the power cord from
the AC outlet.
2 Remove the left housing cover.
Refer to Section 5.1.1 Remove the Left
Housing Cover.
Refer to Section 5.8 Replacing the Interface
Board to remove the interface board if
applicable.
3 Disconnect all the cables from the
connectors on the main (CONT) PCB.
Refer to the step 3 of Section 5.5 Replacing the
Main (CONT) PCB for details.

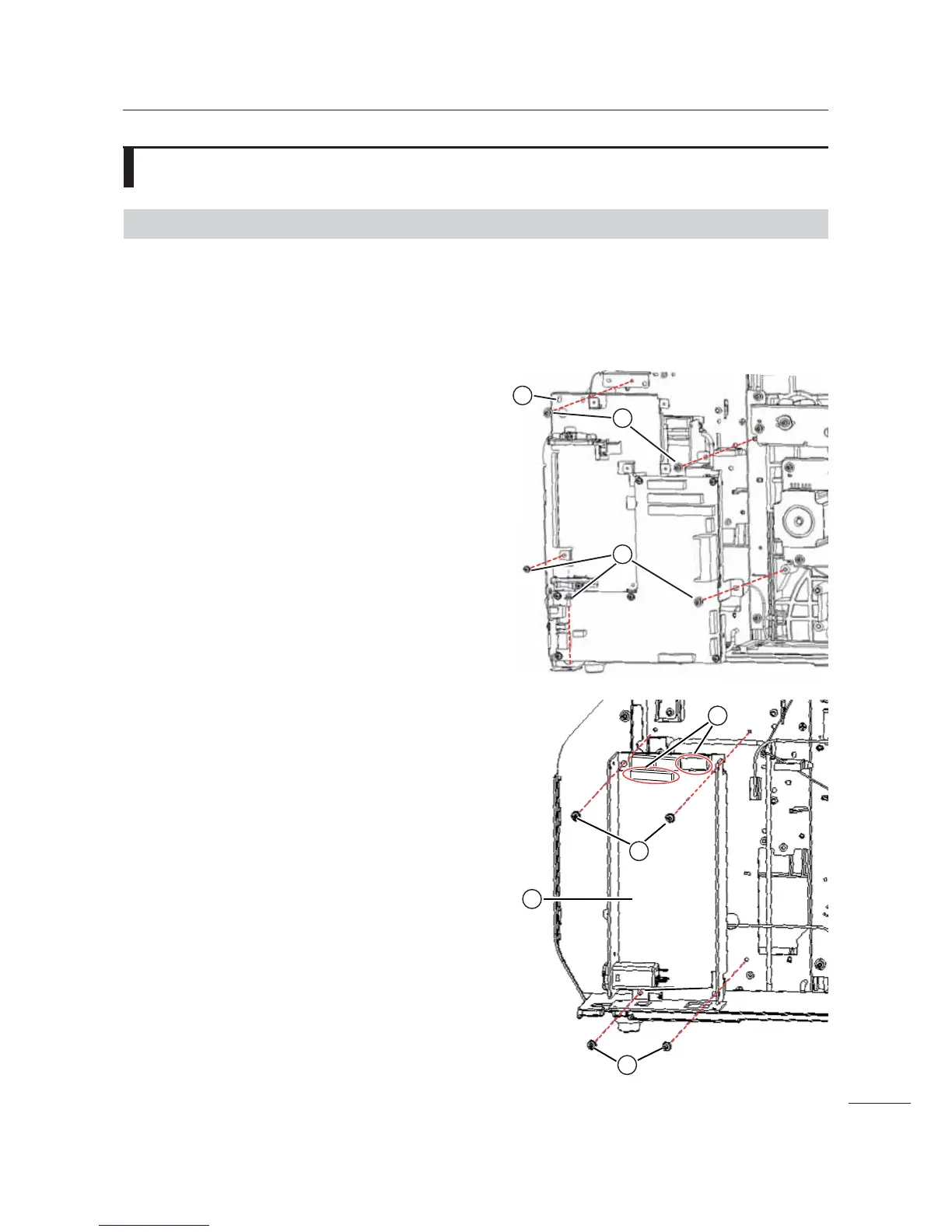

4 Remove five screws . and then remove
the main (CONT) PCB assembly (with
bracket)
3.
5 Disconnect the cables from two
connectors $ on the power supply
unit
/.
6 Remove four screws 1 and then replace
the power supply unit
/.
7 Perform the assembly with the reverse
procedure.
After the replacement
• Power on the printer, check that the
printer operates correctly.
1
1
2
5
5
4
3

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
