SATO CL6NX Service Manual

5 Replacement
90
CL4NX/CL6NX Service Manual
5.14 Replacing the Torque Limiter for Ribbon
Supply Spindle
Required tool:
• Phillips screwdriver (JIS #2 or equivalent)
1 Make sure that the printer is in power off mode, then disconnect the power cord from
the AC outlet.
2 Remove the left housing cover.
Refer to Section 5.1.1 Remove the Left Housing Cover.

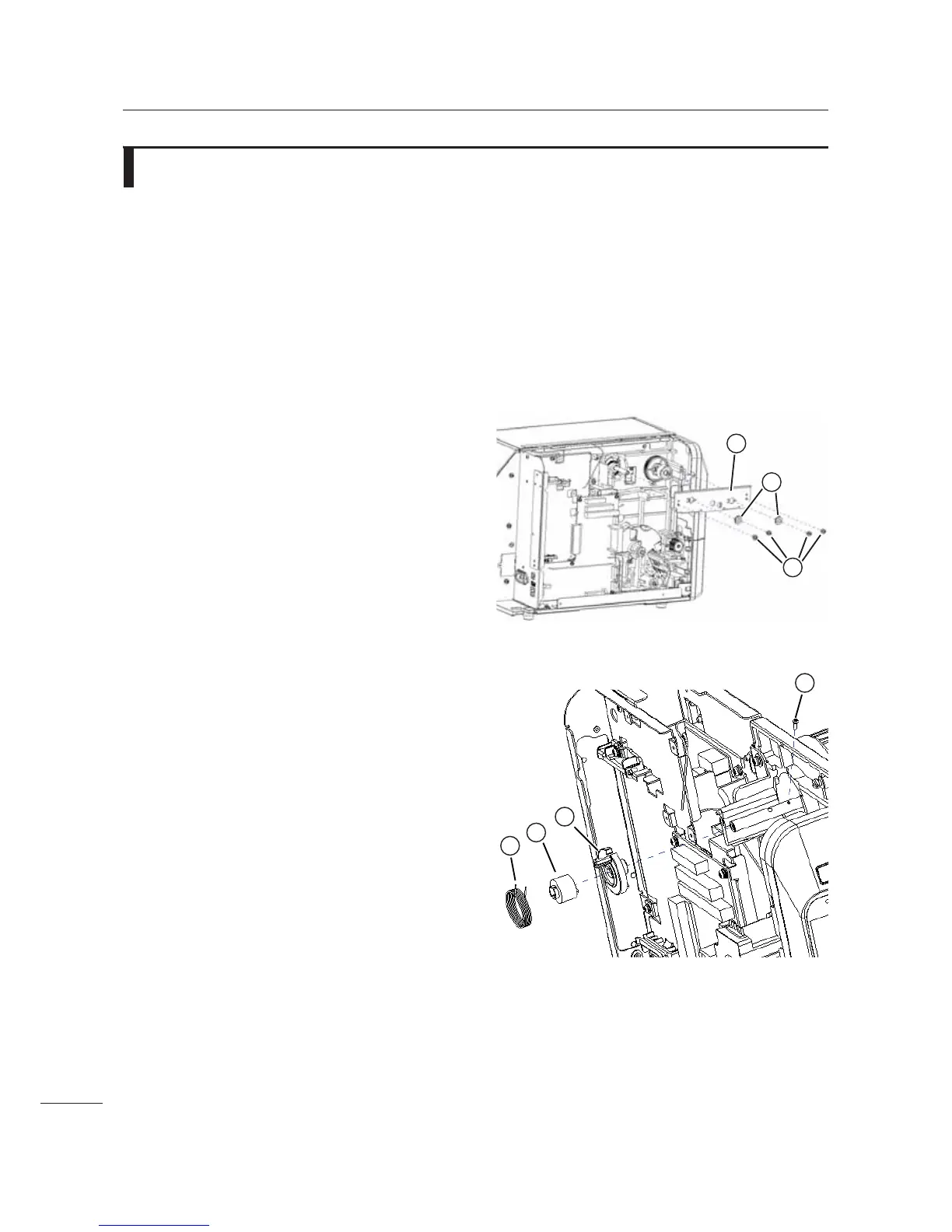

3 Remove four screws ., remove two
bearings
3 and then remove the
ribbon frame
$.
4 Remove the screw /, BF spring 1,
torque limiter
4and BF stopper 2.
5 Replace the torque limiter 4.
6 Perform the assembly with the reverse
procedure.
Refer to the Notes on installing the BF spring.
3
2
1
4
5
6
7
* Refer to Note
