4 Checking and Performing Printer Adjustments
56
CL4NX/CL6NX Service Manual
4.9.2 Adjusting the Head Pressure Balance with Adjustment Dials
Criteria of the head pressure balance adjustment
• Set the head pressure according to the media thickness, including the liner.
• Set the pressure balance according to the media width.
Head pressure setting
The adjustment procedure for the head pressure balance is as follows:
1 Open the top cover of the printer.

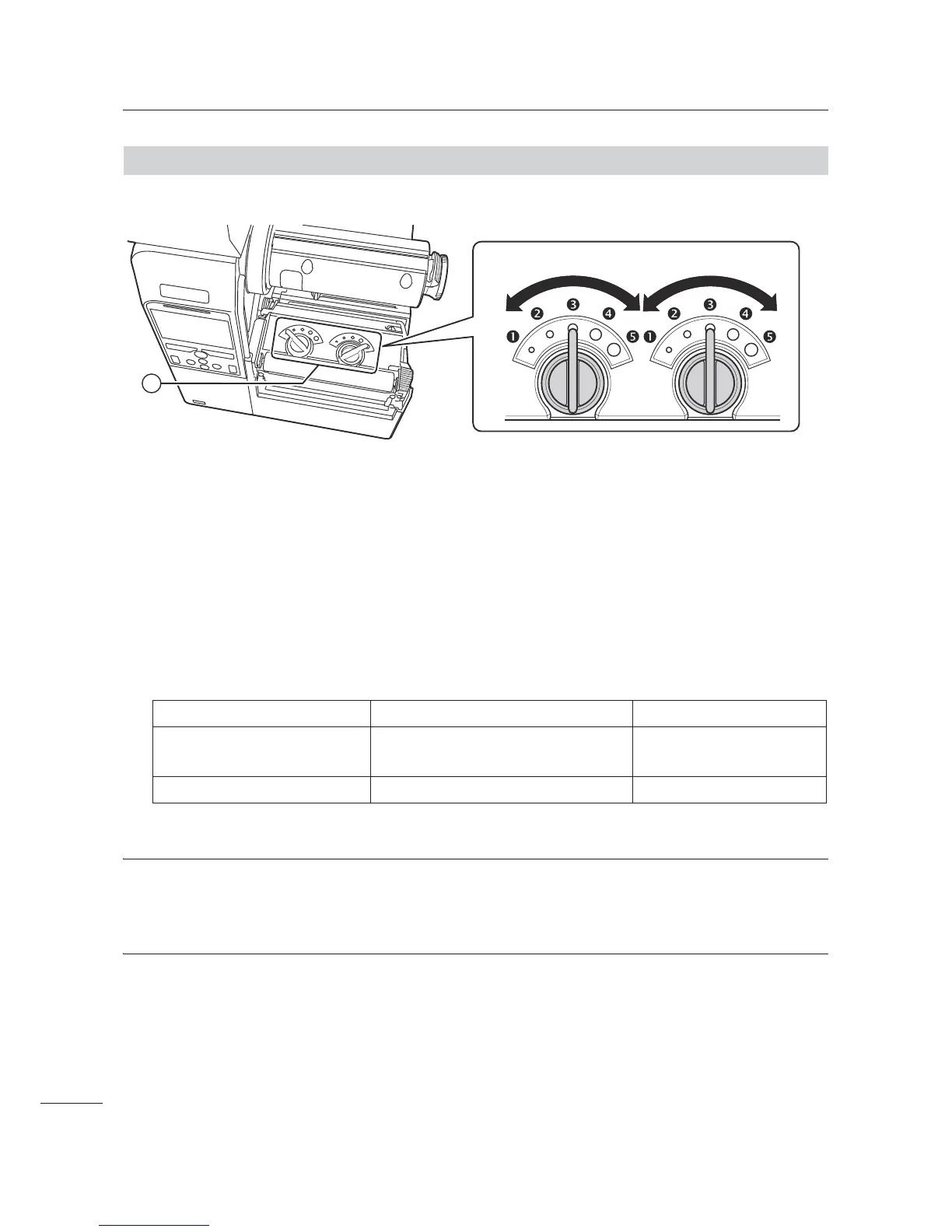

2 Find the adjustment dials . on the top of the print head assembly as shown.
3 Turn the adjustment dials . to match the media thickness.
4 Be sure to perform the pressure balance setting as explained below, after step 3.
Note
• The factory default setting is Left p and Right p.
For CL6NX dispenser model, the factory default setting is Left
q and Right q.
• The thickness of the media includes the liner.
Media Thickness (mm) 0.060 - 0.200 0.200 - 0.268
Pressure Balance Gradation
p (Left and Right, CL4NX only)
p or q (Left and Right, CL6NX only)
q or r (Left and Right)
Reference
Thin paper/normal label, etc. Thick paper/tag, etc.
1
Left Right

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
