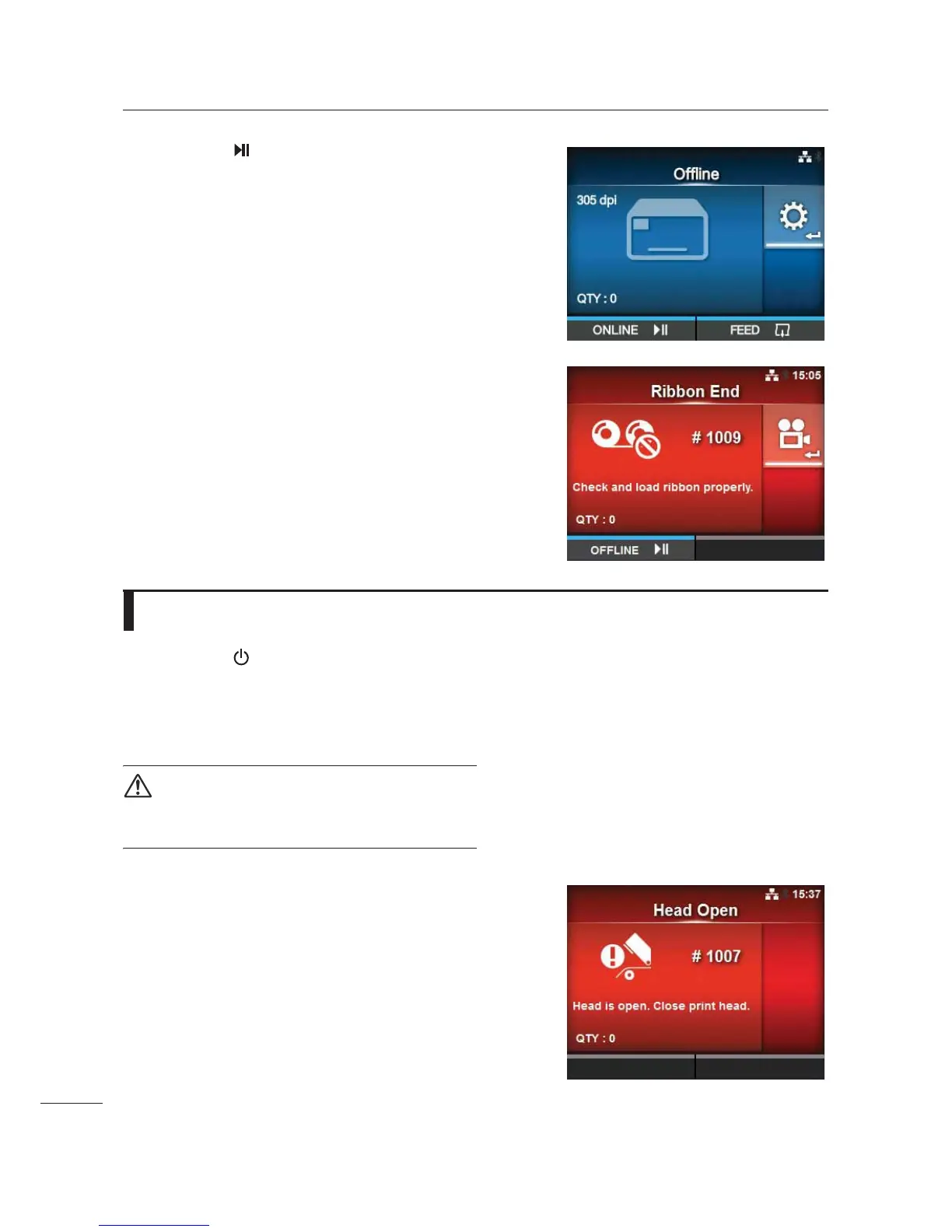

4 Checking and Performing Printer Adjustments
52
CL4NX/CL6NX Service Manual
8 Press the button to enter offline mode.
9 Remove the ribbon if you have loaded in
the printer.
10 In offline mode, press the right soft button
to feed the media.
Make sure that the printer shows a Ribbon End
error message, and along with the buzzer sounds.
11 If no error occurs, check the connection of
the ribbon sensor connector.
If there is no problem, replace the sensor. Refer to
Section 5.12 Replacing the Ribbon Sensor for
details.
4.7 Checking the Head Open Error
1 Press the power button on the
operator panel for more than one second
to power on the printer.
2 Open the top cover.
CAUTION
Open the top cover fully to prevent accidental drop of
the cover.
3 When the printer is in online mode, push
the head lock lever towards the rear to
unlock the print head.
Make sure that the printer shows a Head Open
error message, and along with the buzzer sounds.
4 If no error occurs, check the connection of
the head open sensor connector.
If there is no problem, replace the sensor. Refer to
Section 5.11 Replacing the Head Open Sensor
for details.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
