SATO CL6NX Service Manual

5 Replacement
72
CL4NX/CL6NX Service Manual

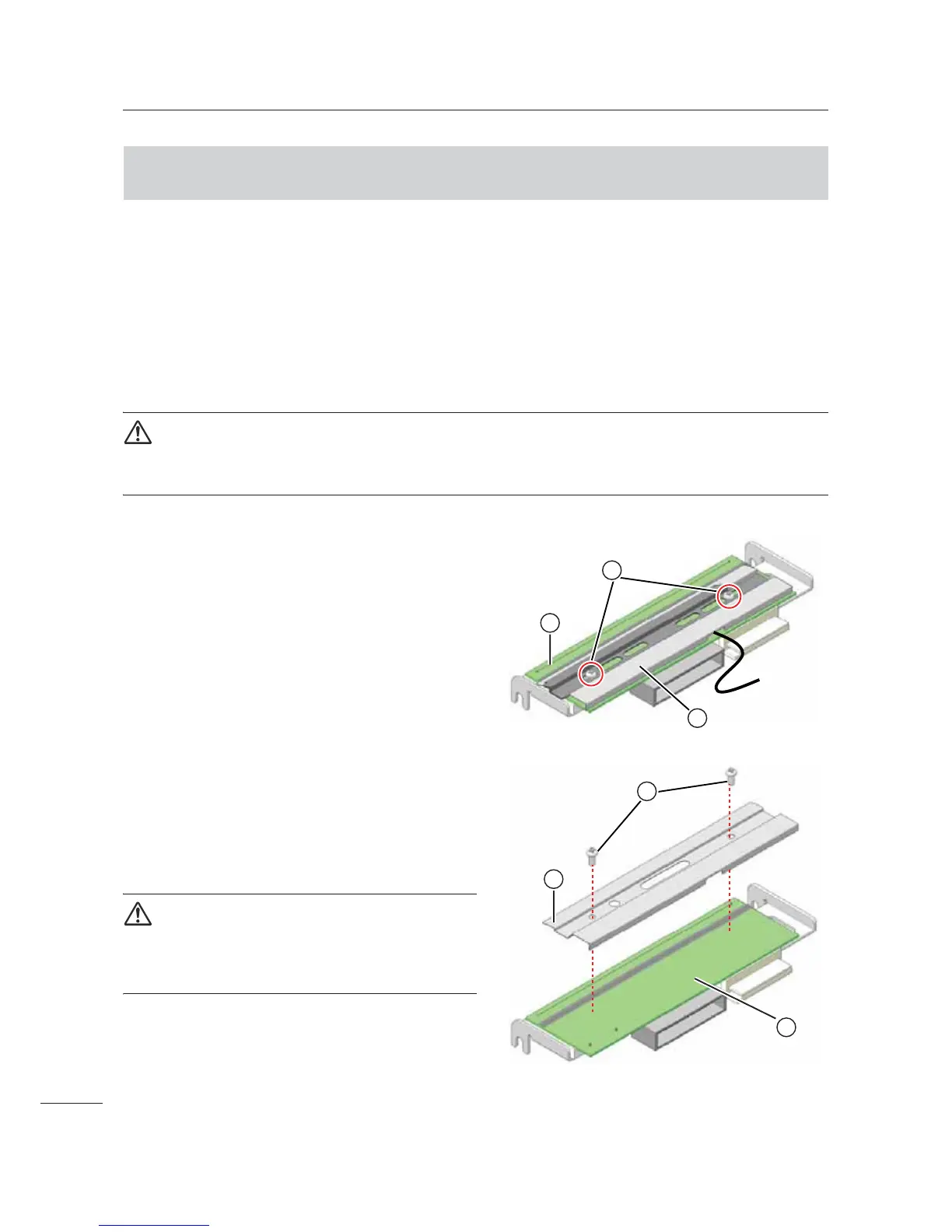

5.2.2 Replacing the Print Head (with the Optional UHF RFID Antenna
Installed - CL4NX Only)
When the printer is installed with an optional UHF RFID kit, the short antenna was installed to the print
head assembly. When replacing the print head, you need to remove the short antenna first and then
install the antenna back to the new print head assembly again.
Required tool:
• Phillips screwdriver (JIS #2 or equivalent)
1 Refer to steps 1 through 6 of Section 5.2.1 Replacing the Print Head (without the
Optional UHF RFID Antenna Installed) to remove the print head assembly from the
printer.
CAUTION
The UHF RFID antenna is installed on the print head. Be careful not to overly pull the antenna cable when
replacing the print head.
2 Remove two screws (print head) 1 and
the RFID head cover
4 from the defective
print head
$.
3 Remove two screws (print head) 2 and
the head cover
( from the new
print head
,.
The serial label of the new print head is pasted
on the head cover
(. Keep the head cover (
for future reference.
CAUTION
Handle the print head with care.
Do not contaminate or scratch the sensitive print head
surface.
6
5
3
9
8
7

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
