Appendix B Control Panel and Touch Screen
B - 14 Instructions for Use
Freeze and Archive Controls
Use the system configuration menu to assign print and/or store functions to the CLIP and
IMAGE controls.
System Config > Print/Store

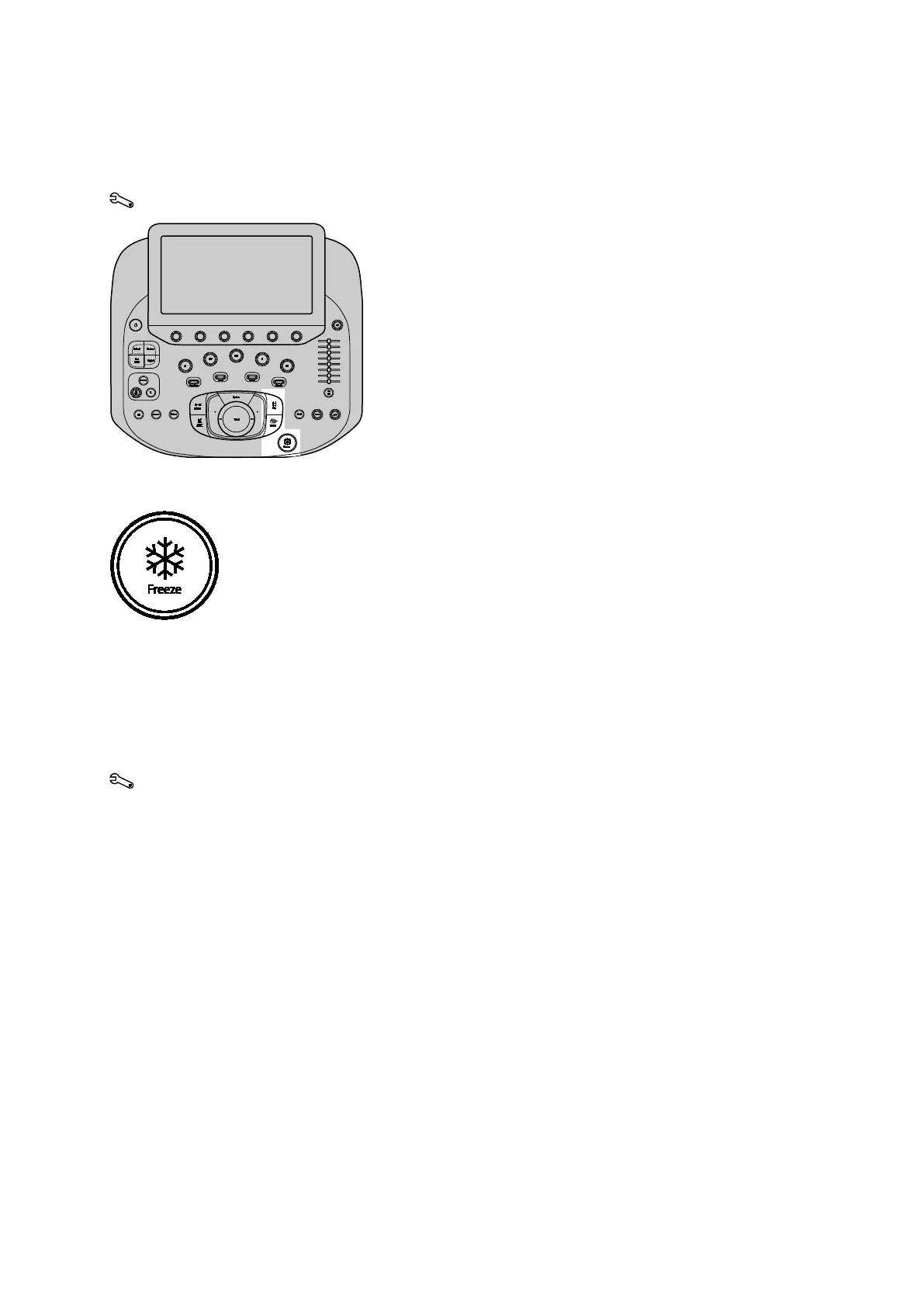

Freeze
 Freezes or unfreezes acquisition of an image, sweep, or spectrum.
 During clip capture, ends the capture.
 During data entry, closes the form and redisplays the image screen.
 During review, activates an assigned function. For example, exits review or a clinical
application program, or plays and pauses CINE data.
Use the system configuration menu to select the function assigned to the freeze function during
review.
System Config > Basic System 2
