Siemens MICROMASTER 440 User Manual

Issue 10/06 2 Installation
MICROMASTER 440 Operating Instructions
6SE6400-5AW00-0BP0
39
Cable opening for
mains conection
U1/L1, V1/L2, W1/L3
Shield connection
Mains cable PE
Hoisting eyes
C
able opening DCPA, DCNA
for connection of an
external braking unit
Mains cable
Phase U1/L1, V1/L2, W1/L3
Top adjustment rail
Bottom adjustment rail
Status Display Panel
Shield connection
control leads
Transformer adaption
Motor cable
Phase U2, V2, W2
Motor cable
PE Shield connection
Fan screws
Bottom retaining screw
Elektronic box
Top retaining screw
Connection to
Y-Capacitor
Connection DCPA, DCNA
for external braking unit
Fan fuses
Fan
Connection for dv/dt filter
DCPS, DCNS

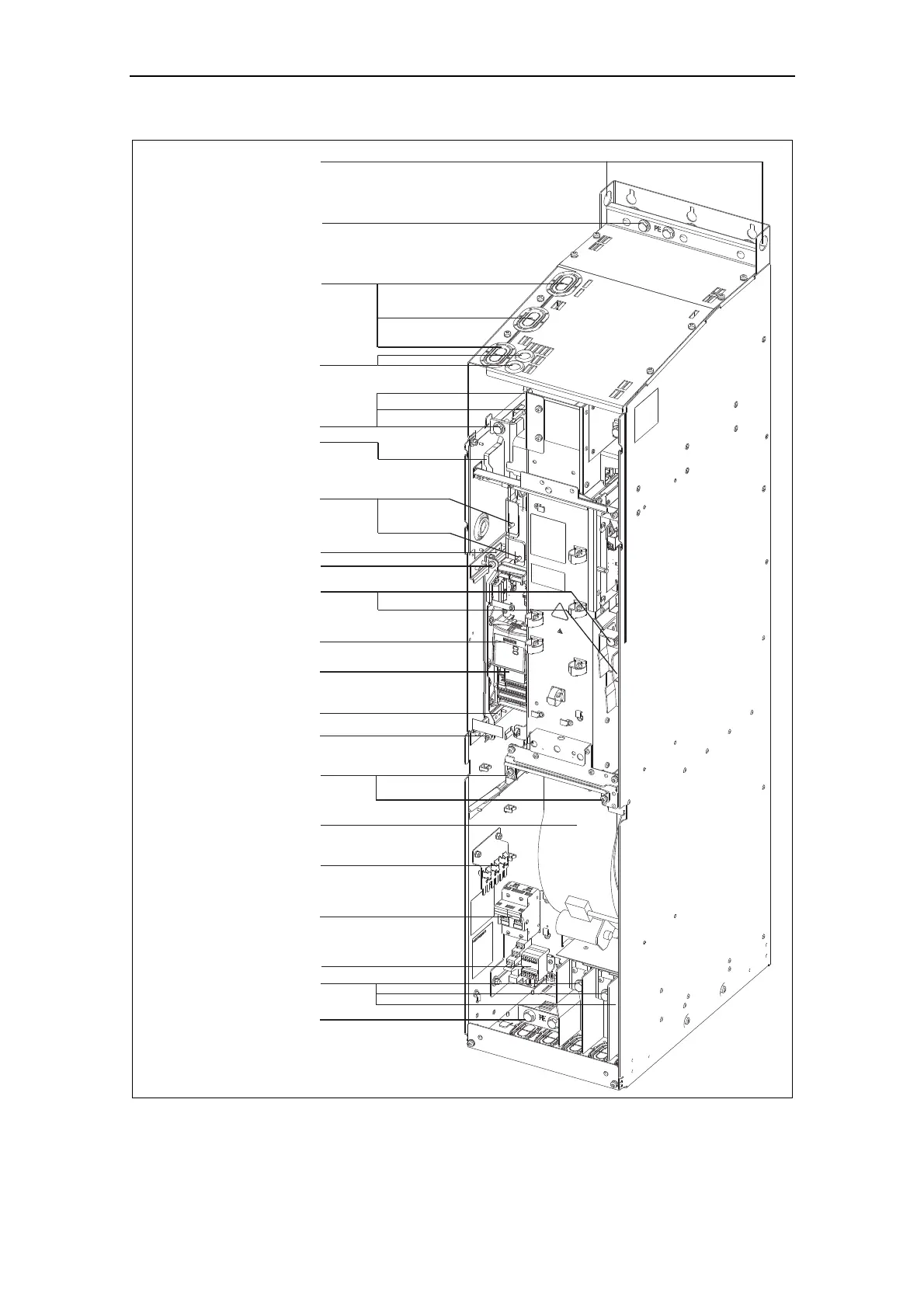

Fig. 2-10 MICROMASTER 440 connection drawing - frame size GX

Siemens MICROMASTER 440 Specifications

General

Power Range	0.12 kW to 250 kW
Output Voltage	0 V to Input Voltage
Output Frequency	0 Hz to 650 Hz
Control Modes	Vector control
Overload Capability	150% for 60 seconds
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit, Ground Fault
Communication Interfaces	PROFIBUS, DeviceNet, CANopen, Modbus RTU
Enclosure Rating	IP20
Ambient Temperature	-10°C to +50°C
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
