Siemens SIMOTION D4 5 Series User Manual

Supplementary system components
6.5 CBE30 communication board Ethernet
SIMOTION D4x5
Manual, 02/2012
103
View
The connections and LED displays are provided on the front of the CBE30.
)DXOWUHG/('
3RUW
3RUW
3RUW
3RUW
;LQWHUIDFH
$FWLYLW\/('\HOORZIRU
HDFKSRUW
/LQN/('JUHHQIRUHDFKSRUW
6\QFJUHHQ/('

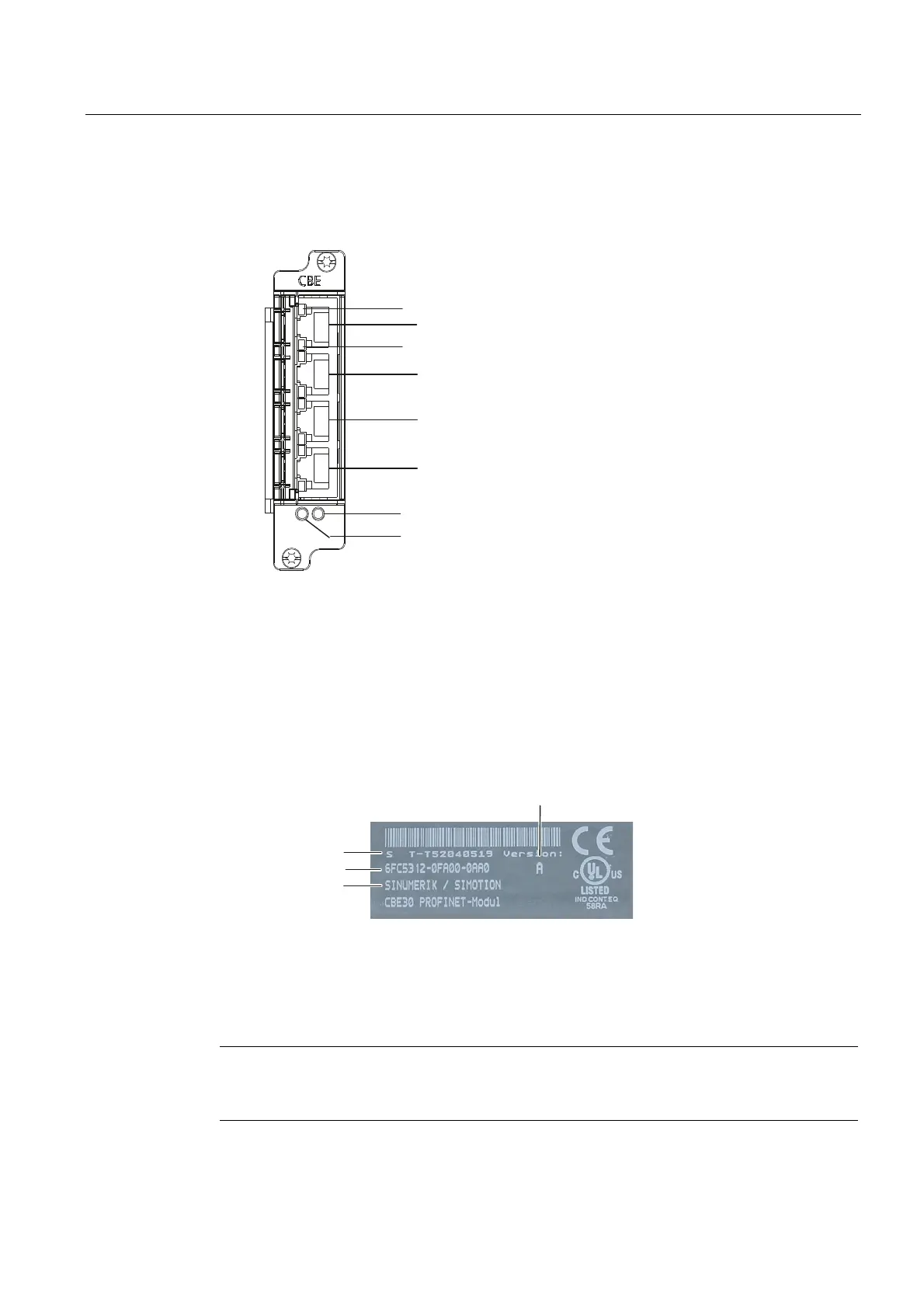

Figure 6-8 Front view of the CBE30
6.5.2 Nameplates
Type plate
The following figure shows you all the information included on the type plate.
6HULDOQXPEHU
2UGHU1R
0RGXOH
GHVLJQDWLRQ
+DUGZDUHYHUVLRQ
Figure 6-9 CBE30 nameplate
You might need to access the information provided on the type plate after the CBE30 has
been mounted. Because the type plate is mounted on the underside of the CBE30, we
recommend that you note the serial number before mounting it.
Note
The contents of the individual type plate fields of the CBE30 may differ from those described
in this manual (e.g. updated product status, approvals and markings not yet issued, etc.).
