Interfaces
3.3 Ethernet interfaces
SIMOTION D4x5
44 Manual, 02/2012
3.3 Ethernet interfaces
Interfaces for connection to Industrial Ethernet.
Industrial Ethernet is a communication network with a transmission rate of 10/100 Mbit/s.
SIMOTION D4x5 offers the following functions via Ethernet interfaces:
● Communication with STEP 7 and SIMOTION SCOUT
With STEP 7 V5.2 and lower, the "SIMATIC NET SOFTNET-PG (Protocol TPC/IP RFC
1006)" software must be installed on the PG/PC. With STEP 7 V5.3 and higher, additional
software is not needed.
● Communication between SIMOTION and SIMATIC NET OPC
The "SIMATIC NET SOFTNET-S7 (S7-OPC server)" software must be installed on the
PG/PC for this function.
● Connection of HMI systems
● Communication with other devices over TCP/IP or UDP communication
● IT communication (via SIMOTION IT DIAG, SIMOTION IT OPC XML-DA, SIMOTION IT
Virtual Machine)
Note
SOFTNET-S7 is a superset of SOFTNET-PG, i.e., SOFTNET-S7 contains Protocol
TPC/IP RFC 1006, as well.
For more information regarding the software packages, see
Catalog PM 21
, refer to the list
of references (separate document) for the order number.

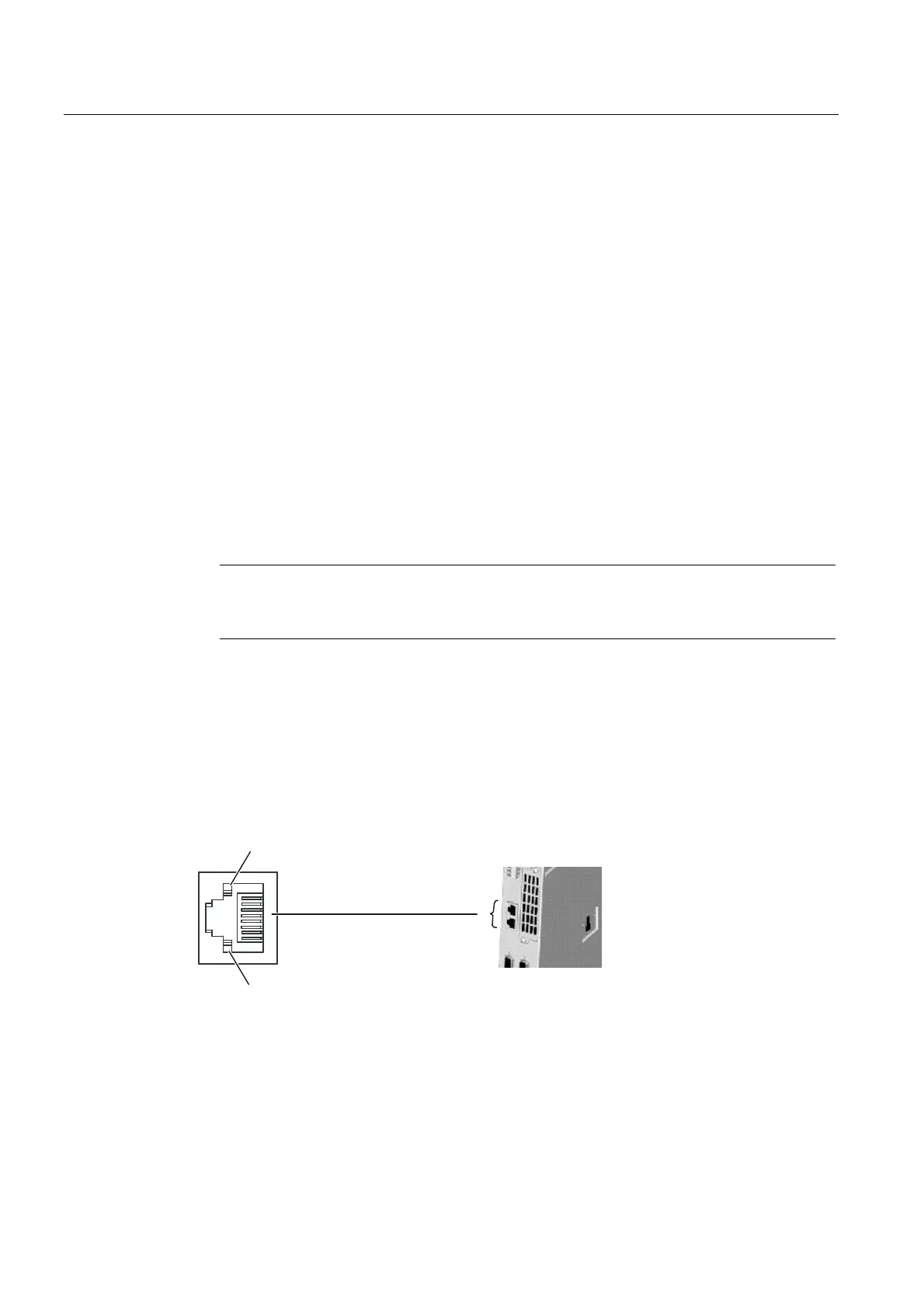

Position of connectors
The following figure shows the mounting position and designation of the Ethernet connectors
on the module.
*UHHQ/('OLJKWVXS6KRZVWKHOLQNVWDWXVLHDGLIIHUHQW
GHYLFHLVFRQQHFWHGWRWKH(WKHUQHWLQWHUIDFH
<HOORZ/('IODVKHV'DWDLVEHLQJH[FKDQJHG
Figure 3-2 Ethernet interface
