Supplementary system components
6.3 TB30 terminal board
SIMOTION D4x5
Manual, 02/2012
83
6.3.3.3 Power supply of digital outputs

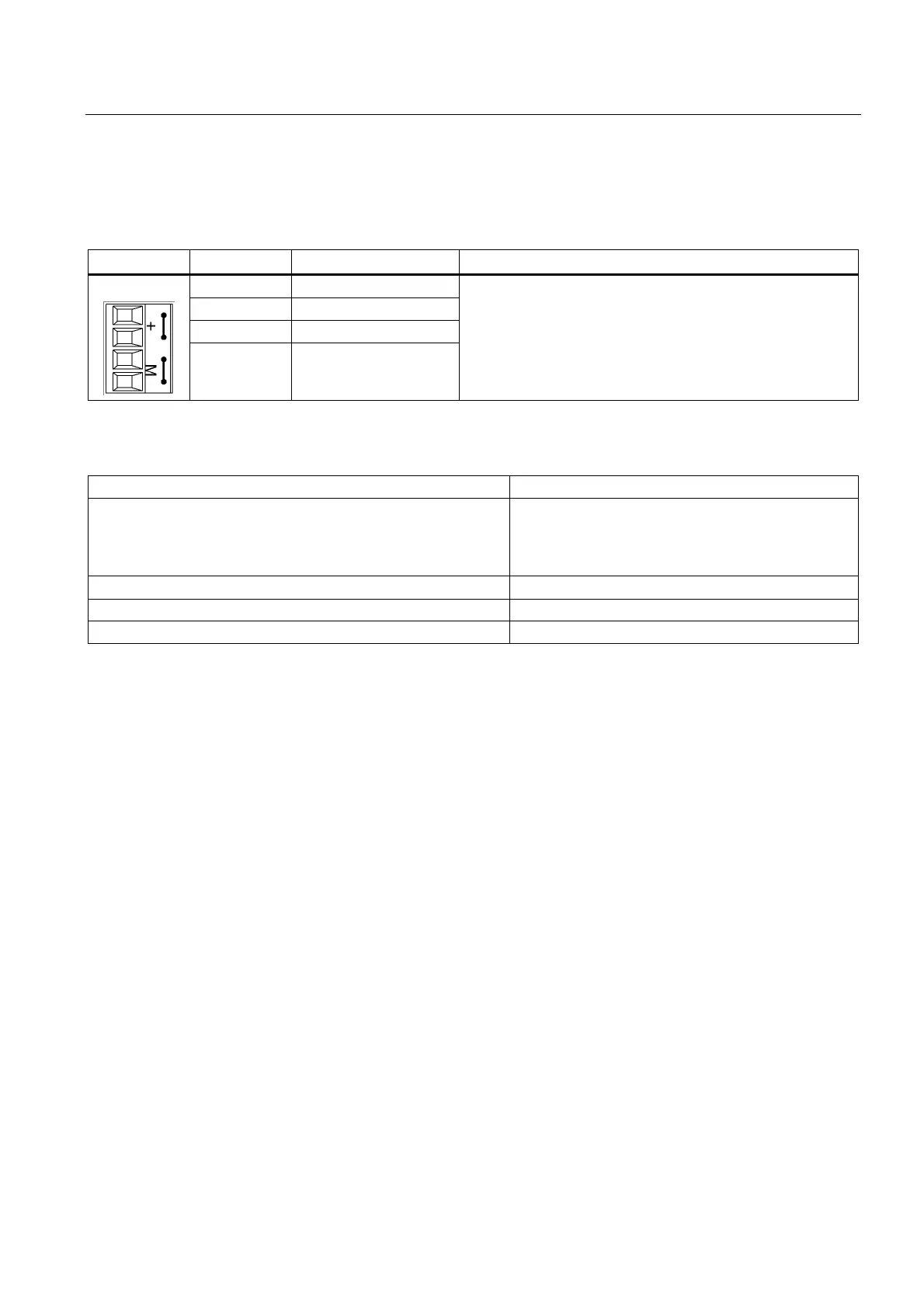

Table 6- 3 Terminal block X424
Terminal Function Technical specifications
+ Power supply
+ Power supply
G Ground
G Ground
Voltage: DC 24 V (20.4 V–28.8 V)
Max. power consumption: 4 A
Max. power consumption per digital output: 0.5 A
Max. current via bridges in the connector: 20 A
Table 6- 4 X424 wiring
Features Type
Connectable cable types and conductor cross-sections
Rigid, flexible
With end sleeve, without plastic sleeve
With end sleeve, with plastic sleeve
0.08 mm
2
to 2.5 mm
2
0.5 mm
2
to 2.5 mm
2
0.5 mm
2
to 1.5 mm
2
Stripped length 7 mm
Tool Screwdriver 0.6 x 3.5 mm
Tightening torque 0.5 to 0.6 Nm
Features
Two "+" terminals and two "G" terminals are available. These are jumpered in the connector.
This loops through the power supply.
This power supply is only required for the digital outputs.
The option slot of the D4x5 Control Unit also provides the following power supplies:
● Electronic power supply of the TB30
● Supply of the analog inputs and outputs.
The power supply of the digital outputs and the electronic power supply of the Control Unit
are isolated.
