Supplementary system components
6.5 CBE30 communication board Ethernet
SIMOTION D4x5
104 Manual, 02/2012
MAC address
A second plate for the MAC address of the Ethernet interfaces is attached to the top side of
the board:
0$&DGGUHVV

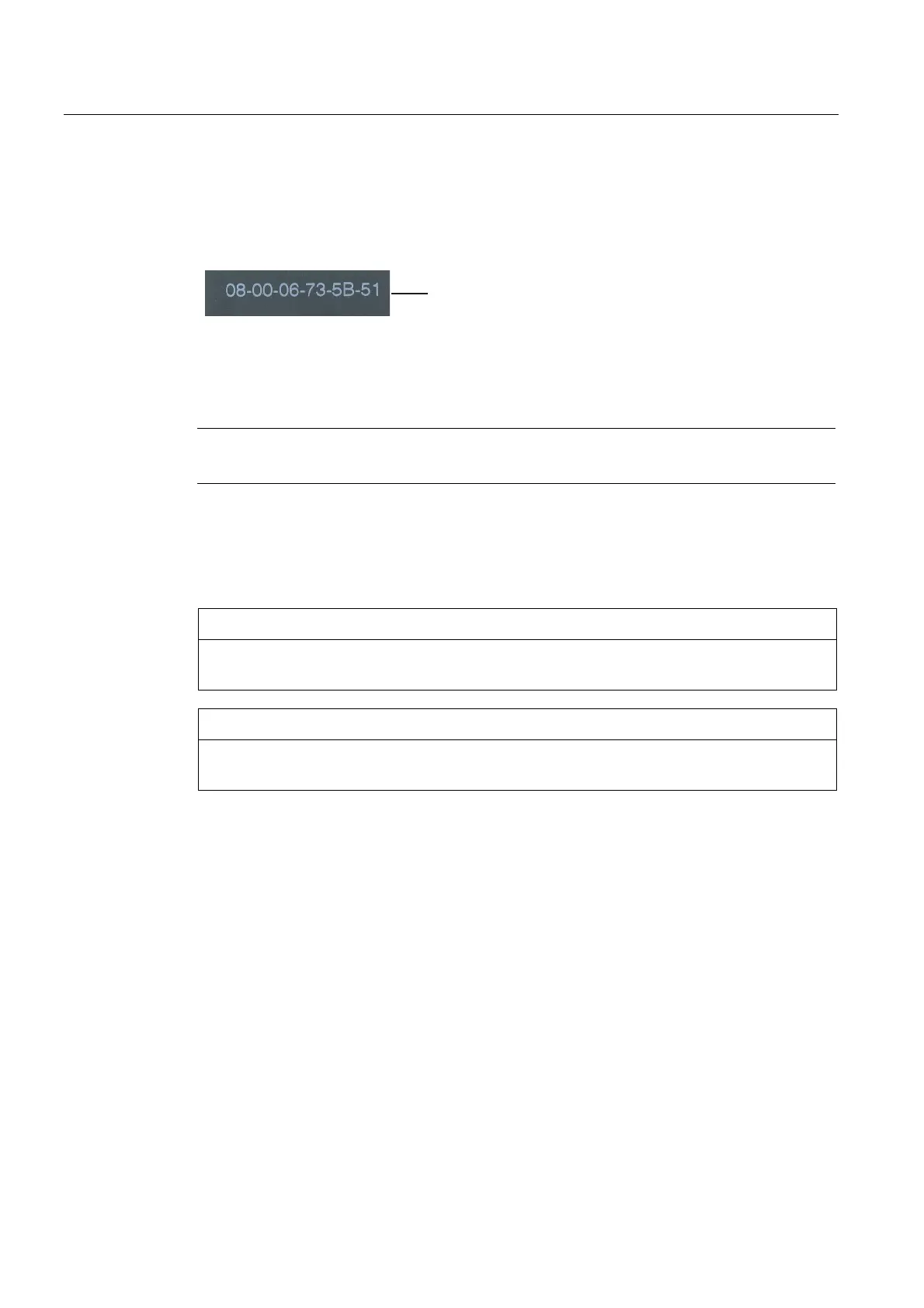

Figure 6-10 CBE30 MAC address
This plate is only visible when the CBE30 has been removed. You need the MAC address to
assign an IP address.
Note
The MAC address is affixed to the top side of the CBE30, behind the RJ45 sockets.
6.5.3 Safety Information
CAUTION
The CBE30 may only be inserted and removed when the D4x5 Control Unit and CBE30 are
in a de-energized state.
CAUTION
The CBE30 must only be installed by qualified personnel. The ESD notes must be
observed, see Section ESD guidelines (Page 123).
