Interfaces
3.4 Digital inputs/digital outputs
SIMOTION D4x5
46 Manual, 02/2012
3.4 Digital inputs/digital outputs
3.4.1 Features
Interface features
The digital inputs and outputs on the X122 and X132 connectors are for the connection of
sensors and actuators.
Table 3- 7 X122 and X132 wiring
Features Type
Connector type Micro Combicon
Connectable cable types and
conductor cross-sections
Rigid
Flexible
Flexible with end sleeve
AWG/kcmil
0.14 mm
2
to 0.5 mm
2
0.14 mm
2
to 0.5 mm
2
0.25 mm
2
to 0.5 mm
2
26 to 20
Stripped length 8 to 9 mm
Tool Screwdriver 0.4 x 2.0 mm
Max. current carrying capacity
(ground)
4 A
Position of connectors
'LJLWDOLQSXWV
3LQ
'LJLWDOLQSXWVGLJLWDORXWSXWV
3LQDQG
;;

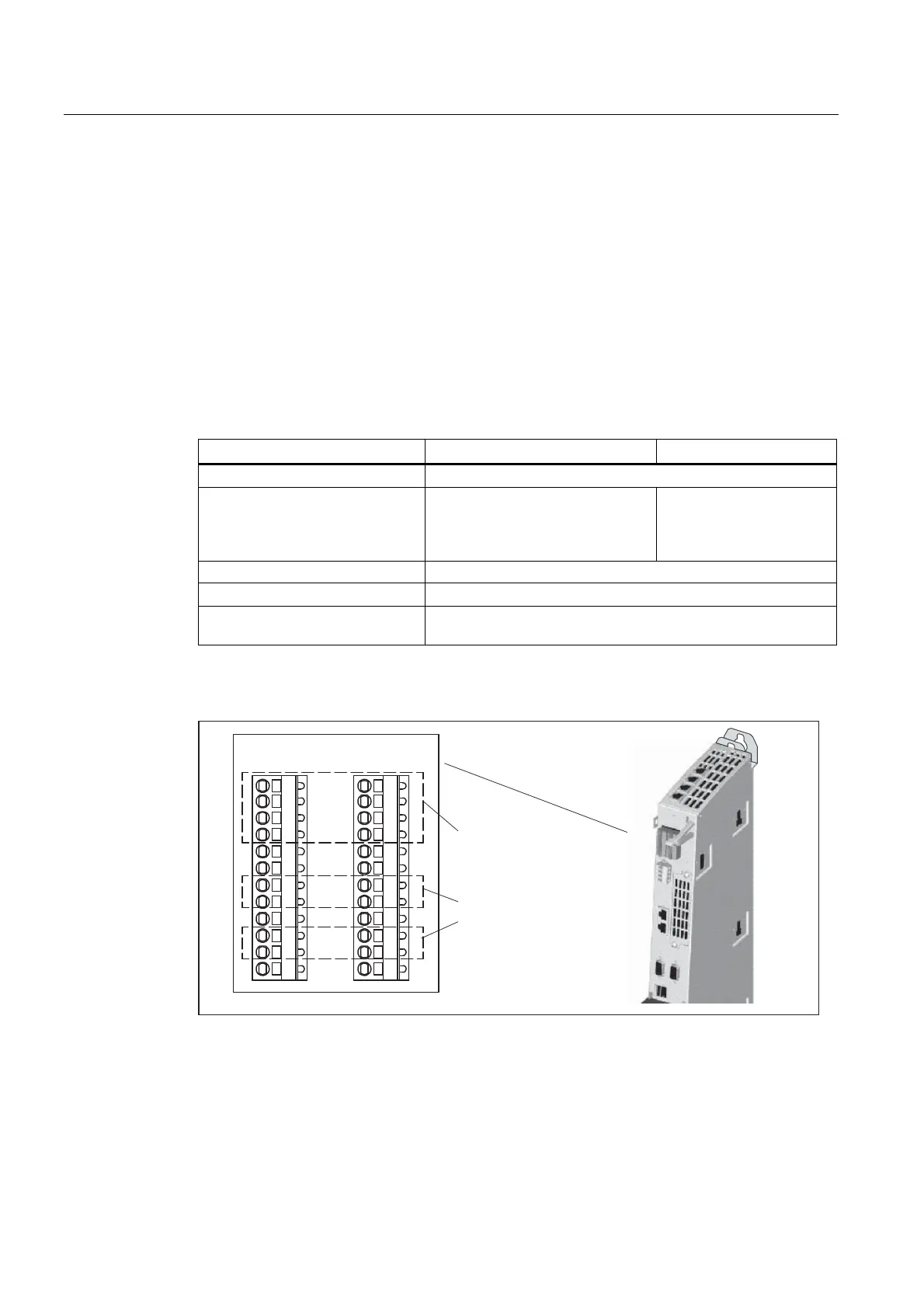

Figure 3-3 Digital inputs and digital inputs/outputs (interfaces X122 and X132)
