3.2.4 RESET button
Layout
The RESET button is located behind the blanking cover on the SIMOTION D410-2.

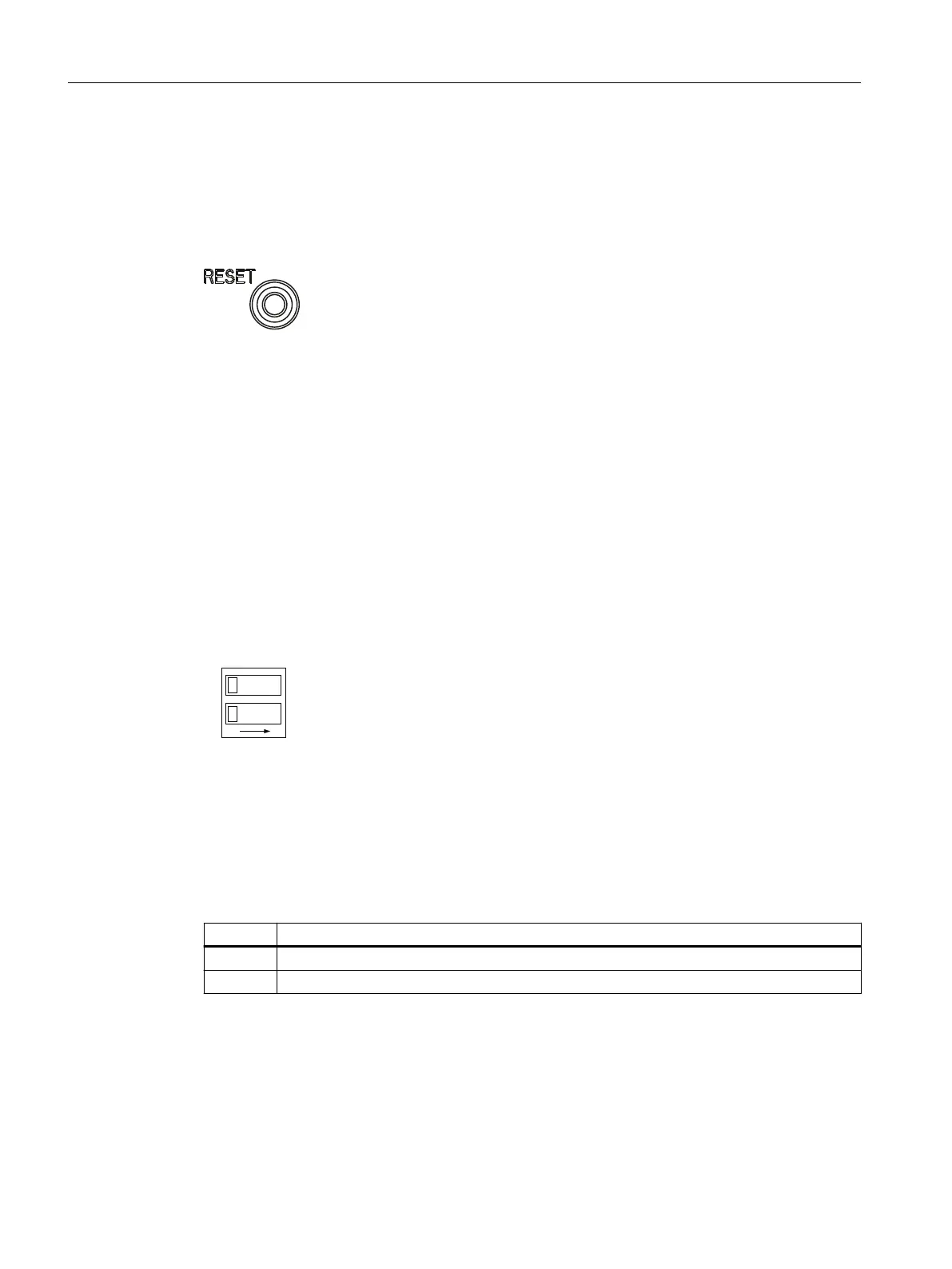

Figure 3-5 RESET button
Function
The entire system is reset when the RESET button is pressed and a new power-up of the system
forced.
3.2.5 Switch S5.0
Layout
SIMOTION D410-2 provides the S5.0 switch behind the blanking cover in the lower area of the
front panel.
8,6
6
Figure 3-6 Switch S5.0
Function
The DIP switch is used for switching the analog input (X131 connector) as voltage or current
input.
Table 3-3 S5.0 switch positions
Position Function
U The analog input is used as voltage input.
I The analog input is used as current input.
See also
Interface assignment (Page 58)
Operator control (hardware)
3.2 Operator controls
SIMOTION D410-2
44 Equipment Manual, 07/2021, A5E33446720B
