Interface assignments

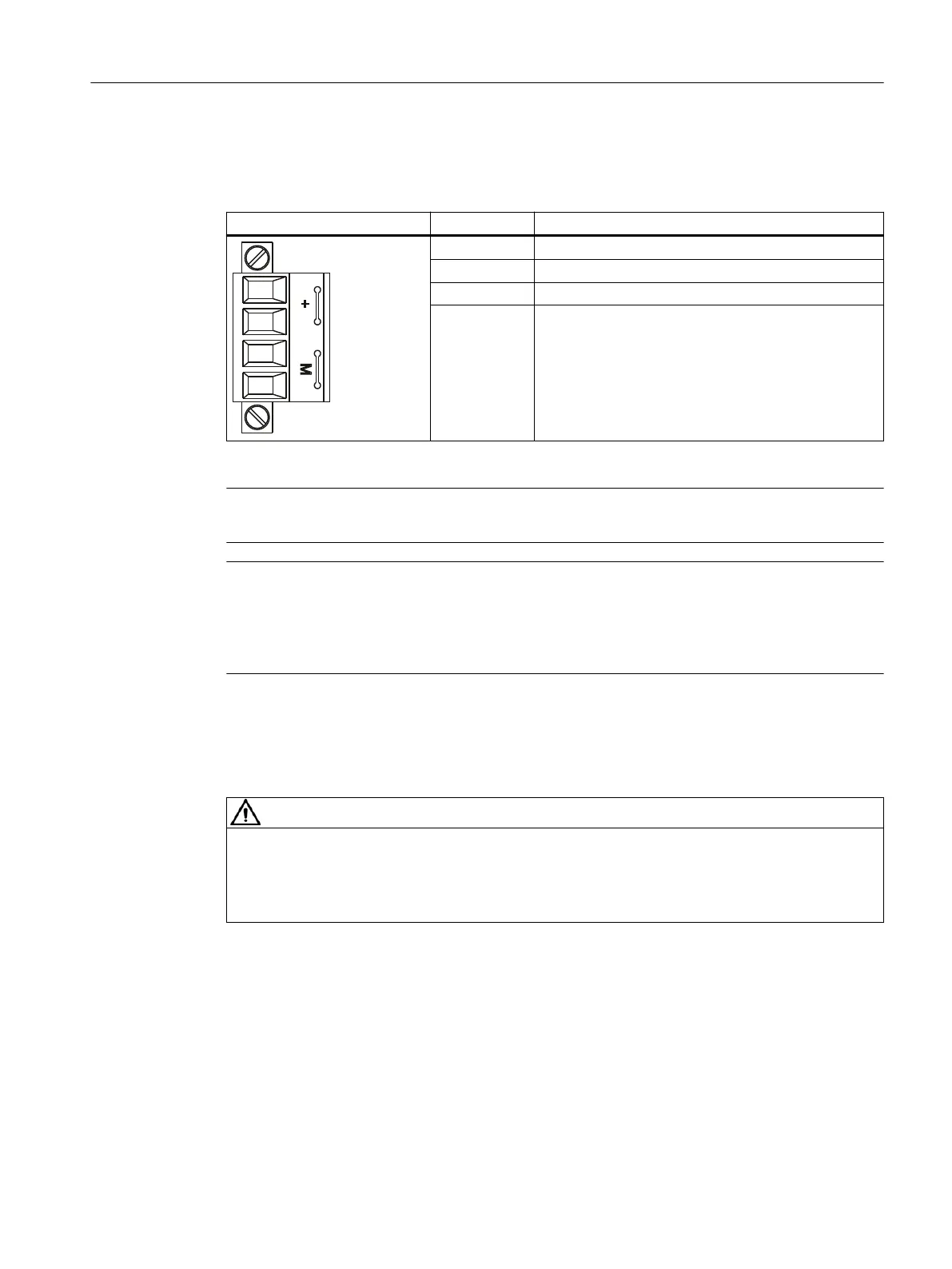

Table 4-24 Power supply X124
Representation Terminal Designation
+ Electronic power supply
+ Electronic power supply
G Electronic ground
G Electronic ground
Note
The power supply terminal strip must be screwed on tightly using a at-bladed screwdriver.
Note
The 24 V is looped through via the 24 V connector. In this case, pin 1 is jumpered with pin 2, and
pin 3 is jumpered with pin 4 in the connector. The maximum current can be limited through the
current carrying capacity of the cable. The current carrying capacity of the cable depends, for
example, on the type of cable installation (cable duct, laying on a cable rack, etc.).
Disconnection of 24 V plug-in connections during operation
Observe the following safety notice when using SIMOTION D410-2:
WARNING
Personal injury and damage to property can occur
Personal injury and property damage can occur if 24 V plug-in connections are disconnected
during operation. Disconnection of 24 V plug-in connections is only permitted when the power
is o.
4.8 Ethernet interface
Properties
SIMOTION D410-2 has an X127 interface for connection to Industrial Ethernet.
Industrial Ethernet is a communication network with a transmission rate of 10/100 Mbit/s.
Interfaces
4.8 Ethernet interface
SIMOTION D410-2
Equipment Manual, 07/2021, A5E33446720B 77
