4.2 DRIVE-CLiQ interface

Properties

DRIVE-CLiQ has the following properties:

• Automatic detection of components by the Control Unit

• Independent expansion of components possible

• Standardized interfaces to all components

• Uniform diagnostics down to the components

• Complete service down to the components

• Mechanical parts are easy to use

For the DRIVE-CLiQ interface, 24 V / 450 mA are available to connect encoders and measuring

systems.

Interface characteristics

Table 4-3 Interface X100

Characteristic Type

Connector type DRIVE-CLiQ connector

Maximum cable length 100 m

Data rate 100 Mbits

Connector type: RJ45 socket; blanking cover for DRIVE-CLiQ interface included in the scope of delivery;

blanking cover (50 pieces) Article number: 6SL3066-4CA00-0AA0)

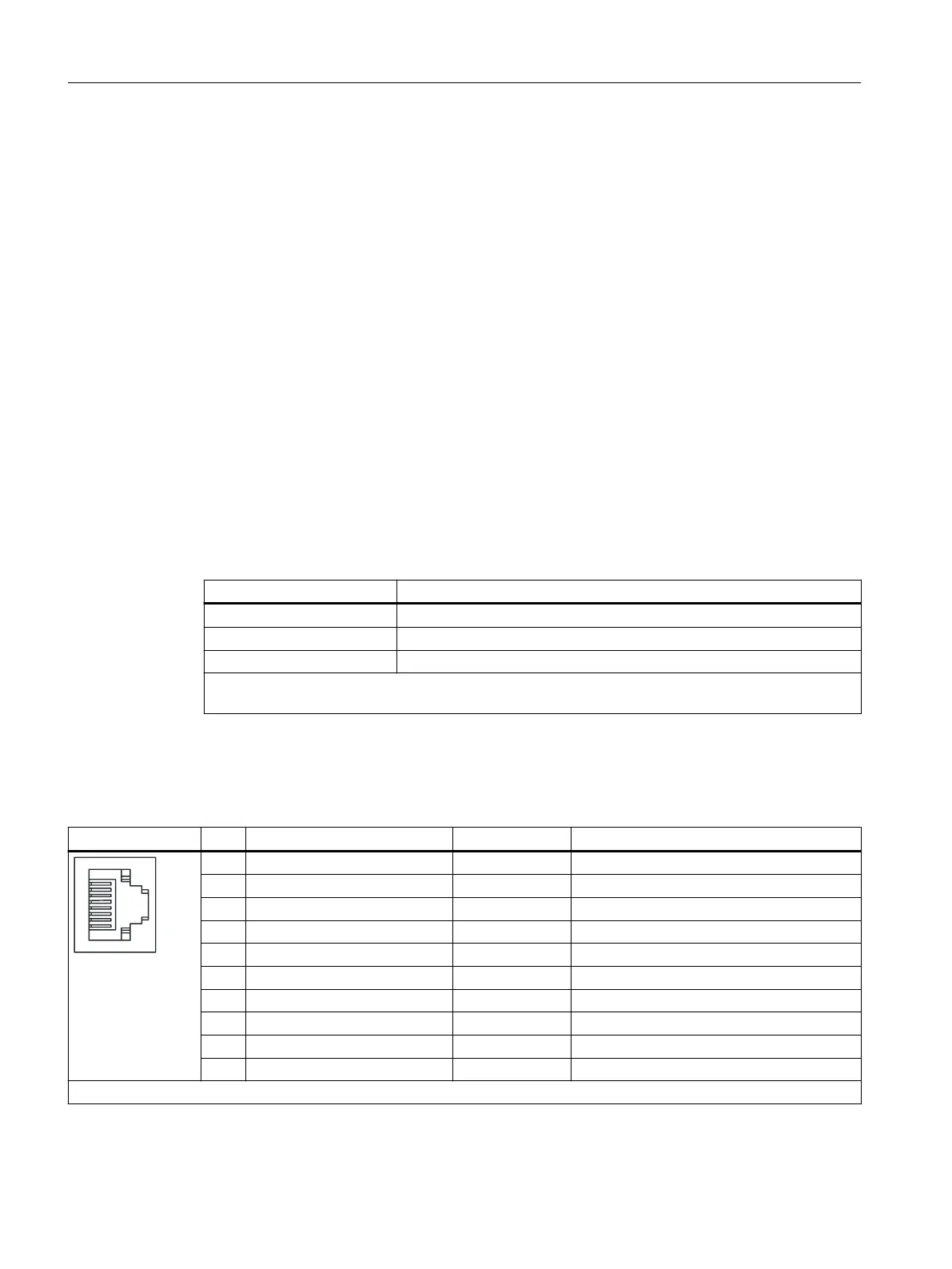

Interface assignment

Table 4-4 Interface assignment X100

Representation Pin Name Signal type Description

1 TXP O Transmit data +

2 TXN O Transmit data -

3 RXP I Receive data +

4 Reserved, do not use - -

5 Reserved, do not use - -

6 RXN I Receive data -

7 Reserved, do not use - -

8 Reserved, do not use - -

A + (24 V) VO Power supply

B M (0 V) VO Electronic ground

Signal type: I = Input; O = Output; VO = Voltage Output

Interfaces

4.2 DRIVE-CLiQ interface

SIMOTION D410-2

48 Equipment Manual, 07/2021, A5E33446720B
