Siemens SINAMICS G120C User Manual

10.2.1.4 Download from BOP-2 operator panel
Overview
You can transfer the converter settings that are backed up on the BOP-2 operator panel back into
the converter.
Precondition
The following requirements apply:
• The converter power supply has been switched on.
• The converter settings are not protected against copying.
Download with active know-how protection with copy protection (Page401)
Function description

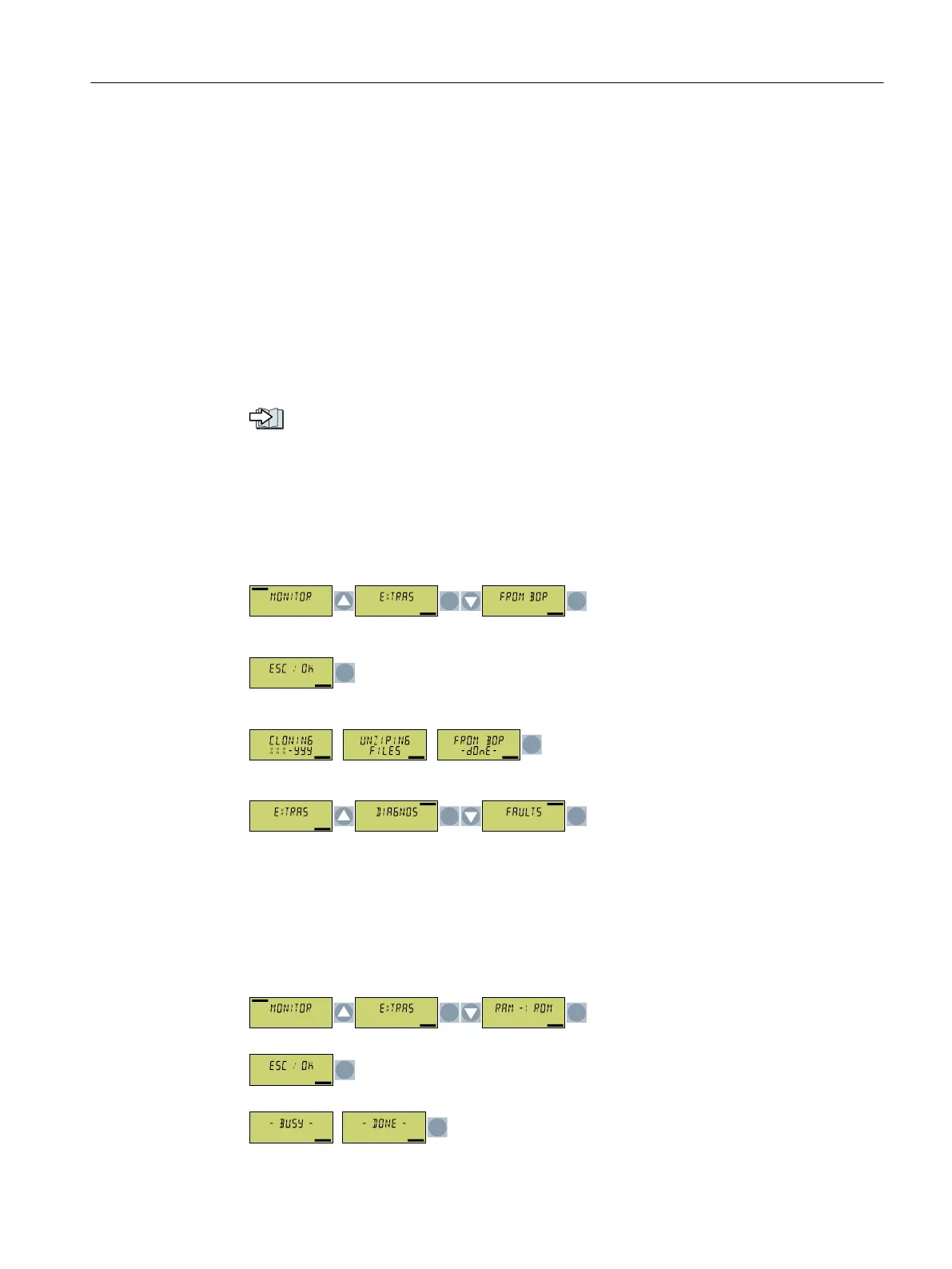

Procedure
1. Attach the Operator Panel to the converter.
2. Select the download from the operator panel to the converter.
2.2.
3. Start the download.
2.
4. Wait until the download is completed.
2.
5. After loading, check whether the converter outputs Alarm A01028.
2.2.
– Alarm A01028:
The loaded settings are not compatible with the converter.
Delete the alarm with p0971=1.
Recommission the drive.
– No alarm A01028: Proceed with the next step.
6. Back up the settings so that they are protected against power failure.
2.2.
2.
2.
Corrective maintenance
10.2Downloading the converter settings
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 385
