Feature Data
Temperature sensor PTC
• Short-circuit monitoring < 20Ω
• Overtemperature 1650Ω
KTY84
• Short-circuit monitoring < 50Ω
• Wire-break: > 2120Ω
Pt1000
• Short-circuit monitoring < 603Ω
• Wire-break > 2120Ω
Temperature switch with NC contact
Safety input
• If you enable safety function STO, then the failsafe digital input comprises the two digital inputs DI 4
and DI5.
• Input voltage ≤30V, 5.5 mA
• Response time:
– When the debounce time p9651 > 0: Typical 5ms + p9651, worst case 15ms + p9651
– When debounce time = 0: Typical 6ms, worst case 16ms
PFH (Probability of
Failure per Hour)
Probability of failure of the safety functions: 5 × 10E-8
USB interface Mini-B
11.2 High Overload and Low Overload
Permissible converter overload
The converter has two di󹪜erent power data: "LowOverload" (LO) and "HighOverload" (HO),
depending on the expected load.
RYHUORDGIRUV
RYHUORDGIRUV
RYHUORDGIRUV
RYHUORDGIRUV
%DVHORDGIRUV
%DVHORDGIRUV
3HUPLVVLEOHRYHUORDG
IRU/RZ2YHUORDG/2
3HUPLVVLEOHRYHUORDG
IRU+LJK2YHUORDG+2
N:N:N:N:
%DVHORDG/2
%DVHORDG+2





W





W

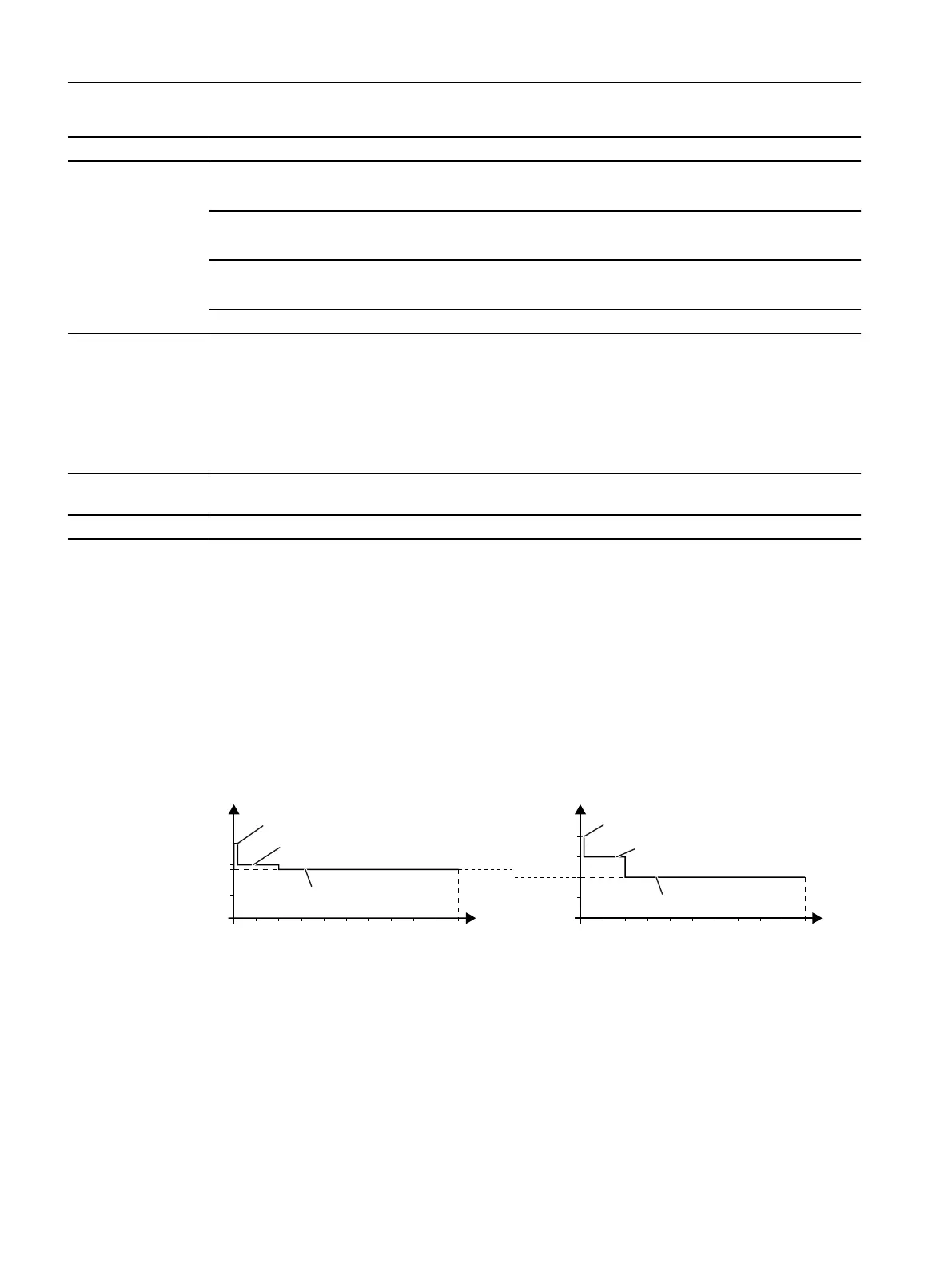

Figure11-1 Duty cycles, "High Overload" and "Low Overload"
Technical data
11.2High Overload and Low Overload
SINAMICS G120C Converters
422 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
