Siemens SINAMICS G120C User Manual

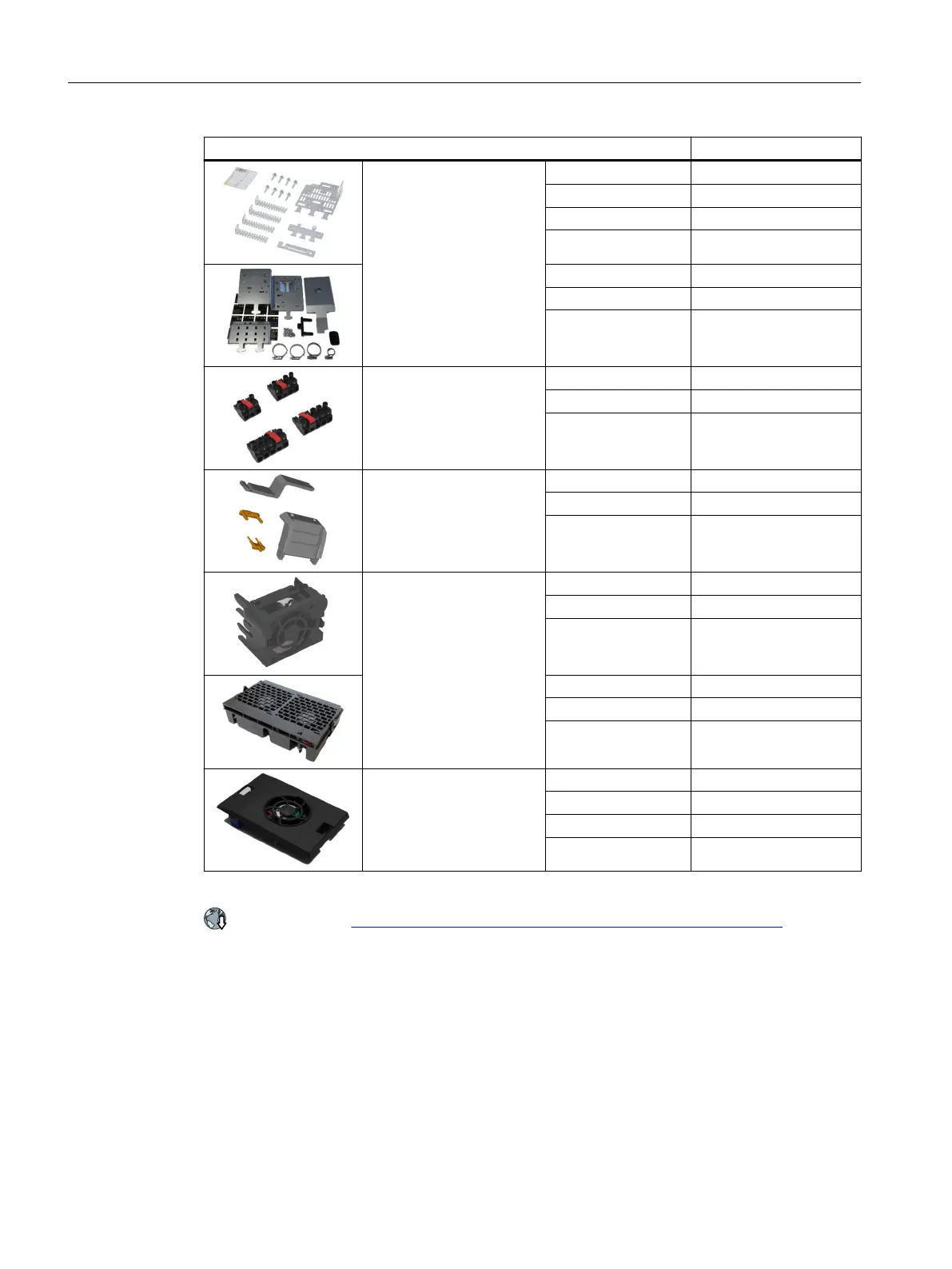

Spare part Article number
1 set of shield plates and
mounting accessories
Frame size AA 6SL3266-1ER00-0KA0
Frame size A 6SL3266-1EA00-0KA0
Frame size B 6SL3266-1EB00-0KA0
Frame size C 6SL3266-1EC00-0KA0
Frame size D 6SL3262-1AD01-0DA0
Frame size E 6SL3262-1AE01-0DA0
Frame size F 6SL3262-1AF01-0DA0
1 set of plug connectors for
line supply, motor and brak‐
ing resistor
Frame sizes AA, A 6SL3200-0ST05-0AA0
Frame size B 6SL3200-0ST06-0AA0
Frame size C 6SL3200-0ST07-0AA0
1 set of connection covers Frame size D 6SL3200-0SM13-0AA0
Frame size E 6SL3200-0SM14-0AA0
Frame size F 6SL3200-0SM15-0AA0
Fan unit for the heat sink,
comprising a housing that
can be plugged on with in‐
tegrated fan
Frame size A 6SL3200-0SF12-0AA0
Frame size B 6SL3200-0SF13-0AA0
Frame size C 6SL3200-0SF14-0AA0
Frame size D 6SL3200-0SF15-0AA0
Frame size E 6SL3200-0SF16-0AA0
Frame size F 6SL3200-0SF17-0AA0
Upper fan, comprising up‐
per cover with installed fan
Frame size AA 6SL3200-0SF38-0AA0
Frame size A 6SL3200-0SF40-0AA0
Frame size B 6SL3200-0SF41-0AA0
Frame size C 6SL3200-0SF42-0AA0
Further information is provided on the Internet:
Spares on Web (https://www.automation.siemens.com/sow?sap-language=EN)
Corrective maintenance
10.4Spare parts
SINAMICS G120C Converters
404 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
