• For converters with rated input currents > 160 A referred to LO, use a Siemens modular RCCB
device (MRCD type B 5SV8111-4KK) with a current transformer (5SV870.-2K), a circuit
breaker (series 3VA1) and a trip element (3VA9988-0BL30).
0RGXODUUHVLGXDO
FXUUHQWSURWHFWLYH
GHYLFH05&'
0HDVXULQJFXUUHQW
WUDQVIRUPHU
&LUFXLWEUHDNHU
9$
7ULSHOHPHQW
&LUFXLWEUHDNHU
59
2WKHUb9ORDGV
7RWKHFRQYHUWHU
,! ,!,!
/
3(
/
/
,! ,!,!
8
$
//

/
$


6,723$

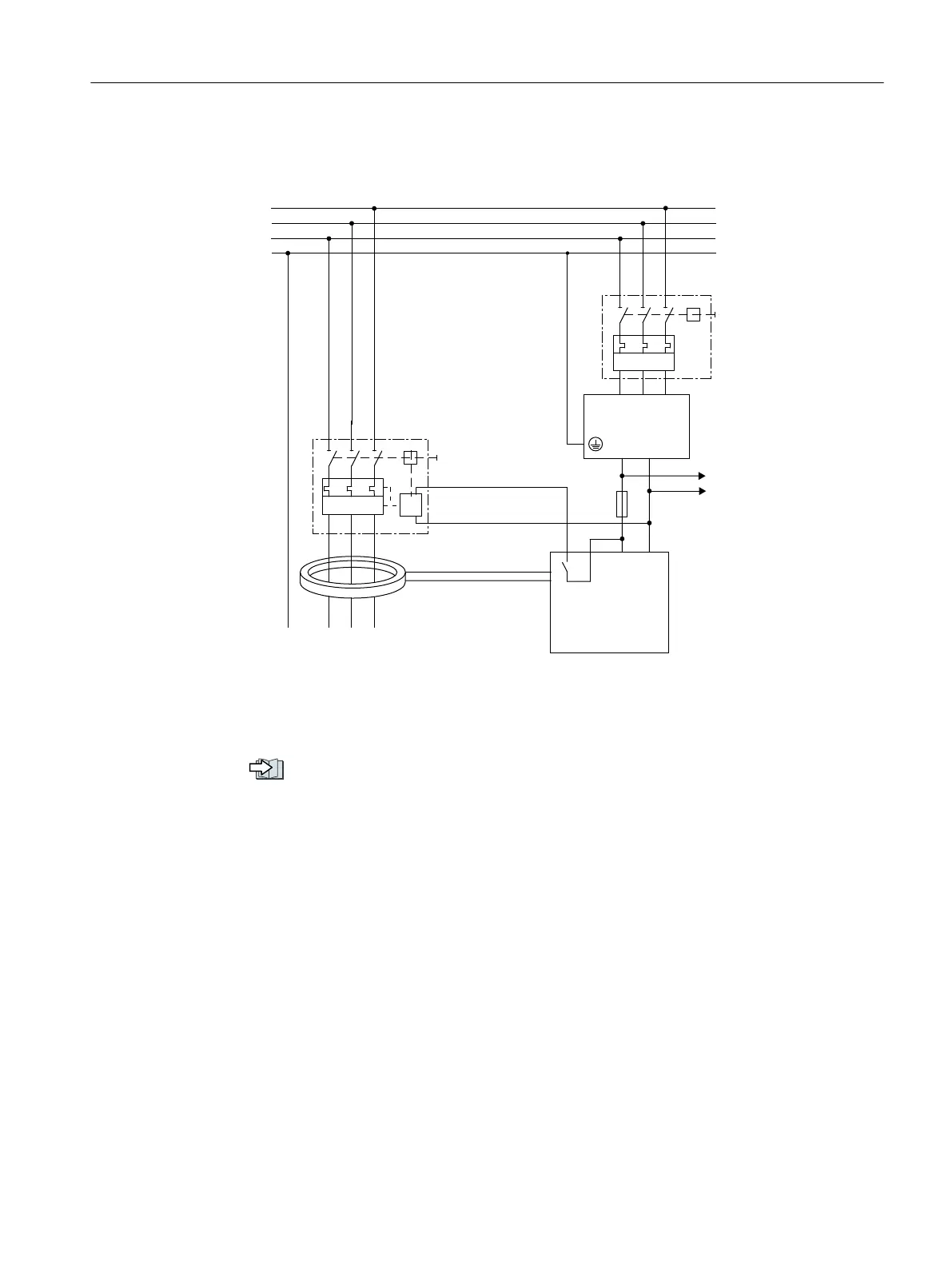

Figure4-32 MRCD
• A dedicated RCD is used for every converter.
• The motor cables are shorter than 50 m (164 ft) shielded, or 100 m (328 ft) unshielded.
Additional information about motor cables:
Maximum permissible motor cable length (Page80)
Installing
4.9Connect the line supply, motor and braking resistor
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 79

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
