Installation
5.1 Installation guideline
SIWAREX WT241
20 Manual, 05/2015, A5E36046748A
5 Installation
5
5.1 Installation guideline
The weighing electronic SIWAREX WT241 is equipped with 4 lugs on the backside of the
product. These can be used for fastening the device at a wall.
Please consider material and condition of the wall, when choosing the mounting equipment.
The lugs holes shall be used with M5 screws.

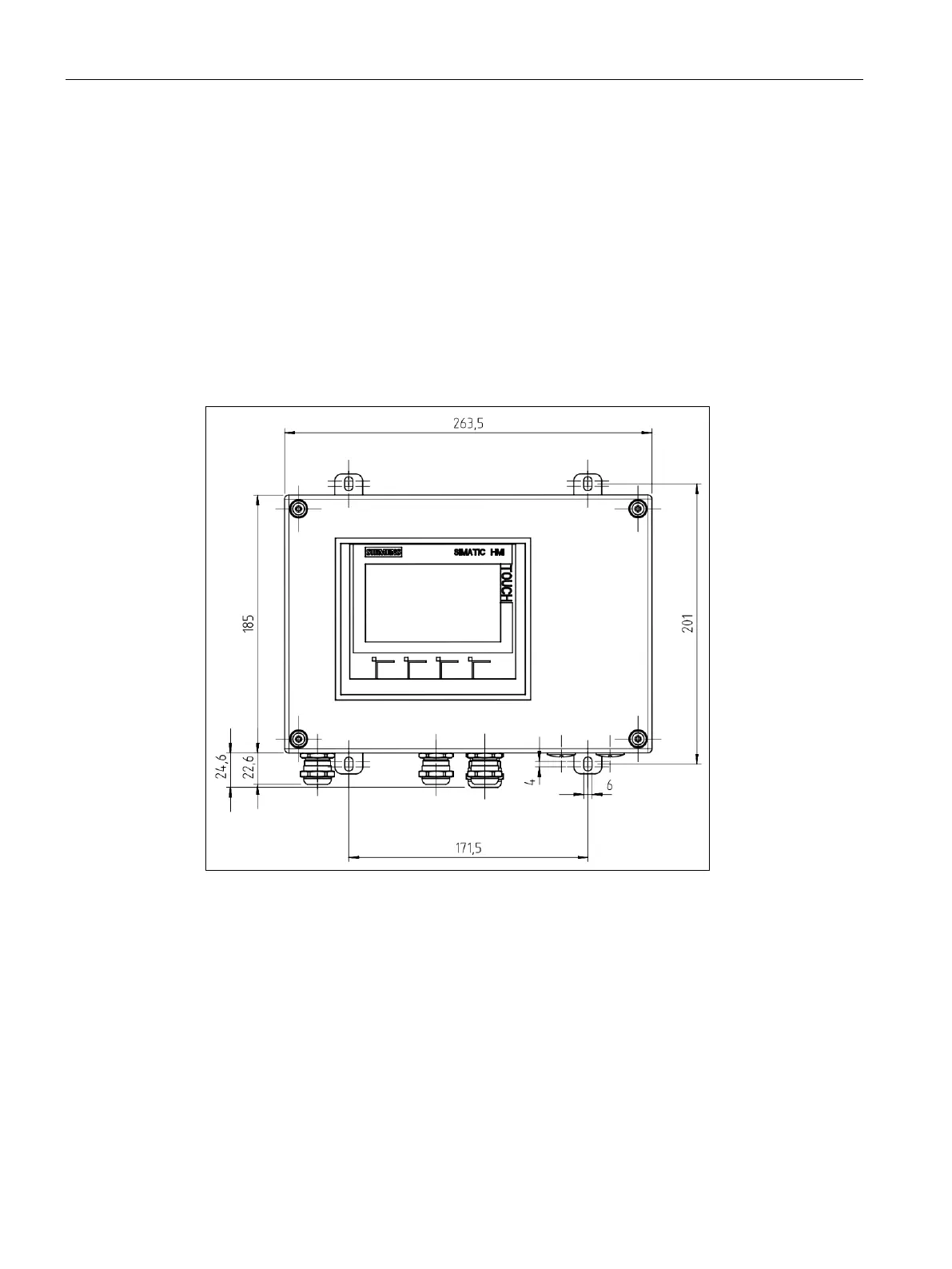

Figure 5-1 SIWAREX WT241 weighing terminal – dimensions and hole pattern
