36 / 176
Siemens Web server OZW772... V6.0 CE1C5701en
Building Technologies Commissioning 2015-10-12
2.6 Commission network components
The Web Server can be operated from a PC with web browser on a local area
network (LAN) or via the Internet.

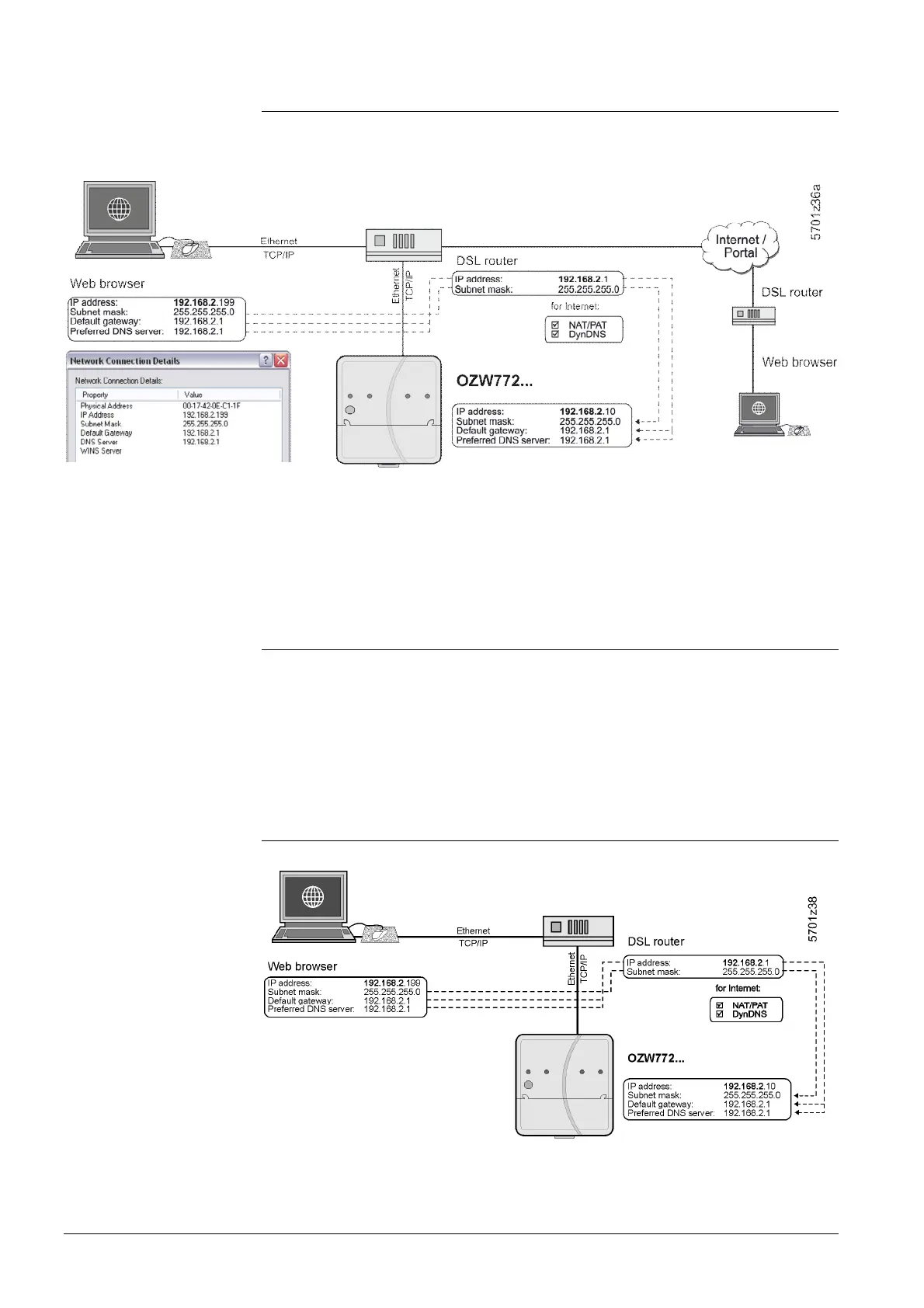

The illustration shows a typical application with operation via Internet and home
network. Use can use "Network connection" to issue IP address, subnet mask,
standard gateway and preferred DNS server if the PC is connected to the home
network.
2.6.1 Access via portal
OZW registers automatically on the portal during commissioning as soon as it is
connected to the Internet.
All functions are available after the user also logs on to the portal and the plant is
activated. No additional settings required on the router. The workflow for access via
portal is described in Section 3.1 "Set up access via portal".
2.6.2 Access via a local area network (LAN)
Commissioning
