Siemens Web server OZW772... V6.0 CE1C5701en
Building Technologies "Energy indicator" function 2015-10-12
The device name is displayed if defined (prior to creating the "Device list"),
otherwise the device type.
The devices are sorted by device address in ascending order.
Network address (area.line.device address)
Device type (technical device designation)
Indication of the number of actively monitored data points (x) for possible number
of data points to be monitored (y) for each device; see Section 7.2.4.
Clicking the column title
· Device name
· Device address
· Device type
sorts the column contents in the table in ascending or descending order.

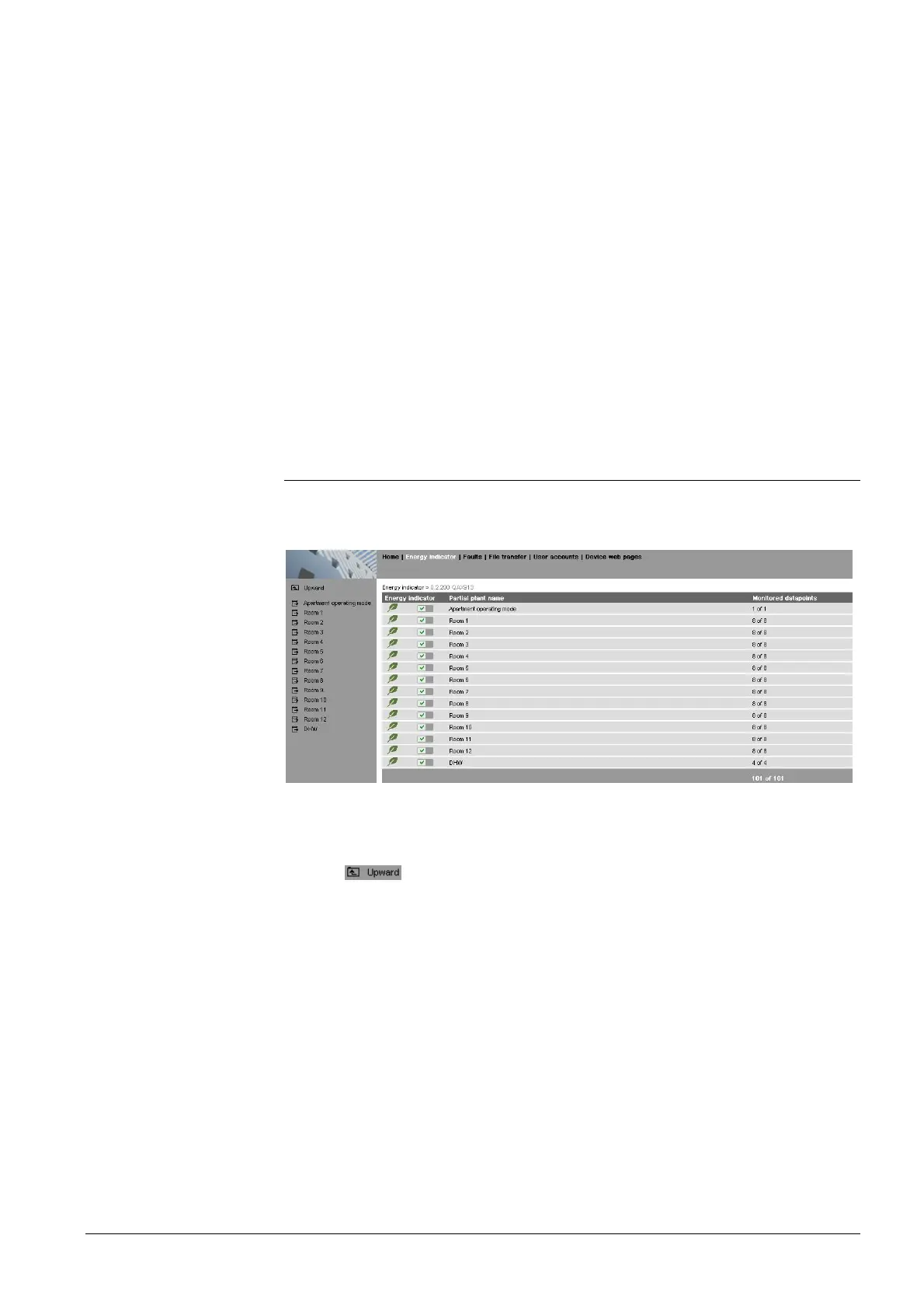

7.2.2 "Partial plants" level
The "Partial plants" level shows the partial plants of functionally complex devices
(see partial plants below for QAX913 central apartment unit).
Clicking the name of a partial plant in secondary navigation or in the "Partial plant
name" column opens the next lower level for that partial plant.
Clicking (in secondary navigation) opens the next higher level.
"Energy indicator" (tree leaf) for each actively monitored partial plant.
This column also contains the checkboxes to activate/deactivate "Energy indicator"
monitoring of the data points for the selected partial plant (deactivate without
confirmation message).
Name of the partial plant (taken over by device).
Indication of the number of actively monitored data points (x) for possible number
of data points to be monitored (y) for each partial plant; see Section 7.2.4.
Device name,
device type
Device address
Device type
Monitored data points
Note
"Partial plants" level
Next lower level
Next higher level
Table columns
Energy indicator
Partial plant name
Monitored data points
