Siemens Web server OZW772... V6.0 CE1C5701en
Building Technologies "Energy indicator" function 2015-10-12
7.4 Dialog boxes, data points, and "Green limits"
7.4.1 General dialog boxes
Clicking the red pen symbol opens the dialog box for the selected data point.
This allows you to either change the data point value and/or the "Green limit".
The dialog box contains the following information (example: Comfort heating
setpoint):
· Name (data point) Comfort heating setpoint
· Value (data point) 21.0
· "Energy indicator" as:
"Green leaf" Green tree leaf
"Orange leaf" Orange tree leaf
· "Green limit(s)" 22.0
· Setting range 20.0 °C to 24.0 °C for data point and "Green limit(s)"
The set data point value is displayed in the field above the setting range. There
are 3 ways to change the data point value:
· Change the data point value in the entry field.
· Move the data point slider to the right or left.
· Arrows ◄ ► to adjust the value step by step.
The data point slider is green for as long as the data point value is within the green
setting range (up to and including
"Green limit"). If the data point value is moved to
the orange range, the slider turns orange.
The setting range for the data point value and its "Green limit" corresponds to the
green/orange bar limited by value indications to the right and left of the bar.
Each data point monitored with the "Energy indicator" function has its own "Green
limit". There are 3 ways to change the "Green limit":
· Change the value for the "Green limit(s)" in the entry field.
· Move the "Green limit(s)" slider to the right or left.
· Arrows ◄ ► to adjust the value step by step.
The "Green limit" slider is always "green/orange". If the slider is moved to the
setting range limit value, the bar color disappears in the direction of the movement.
Open a dialog box

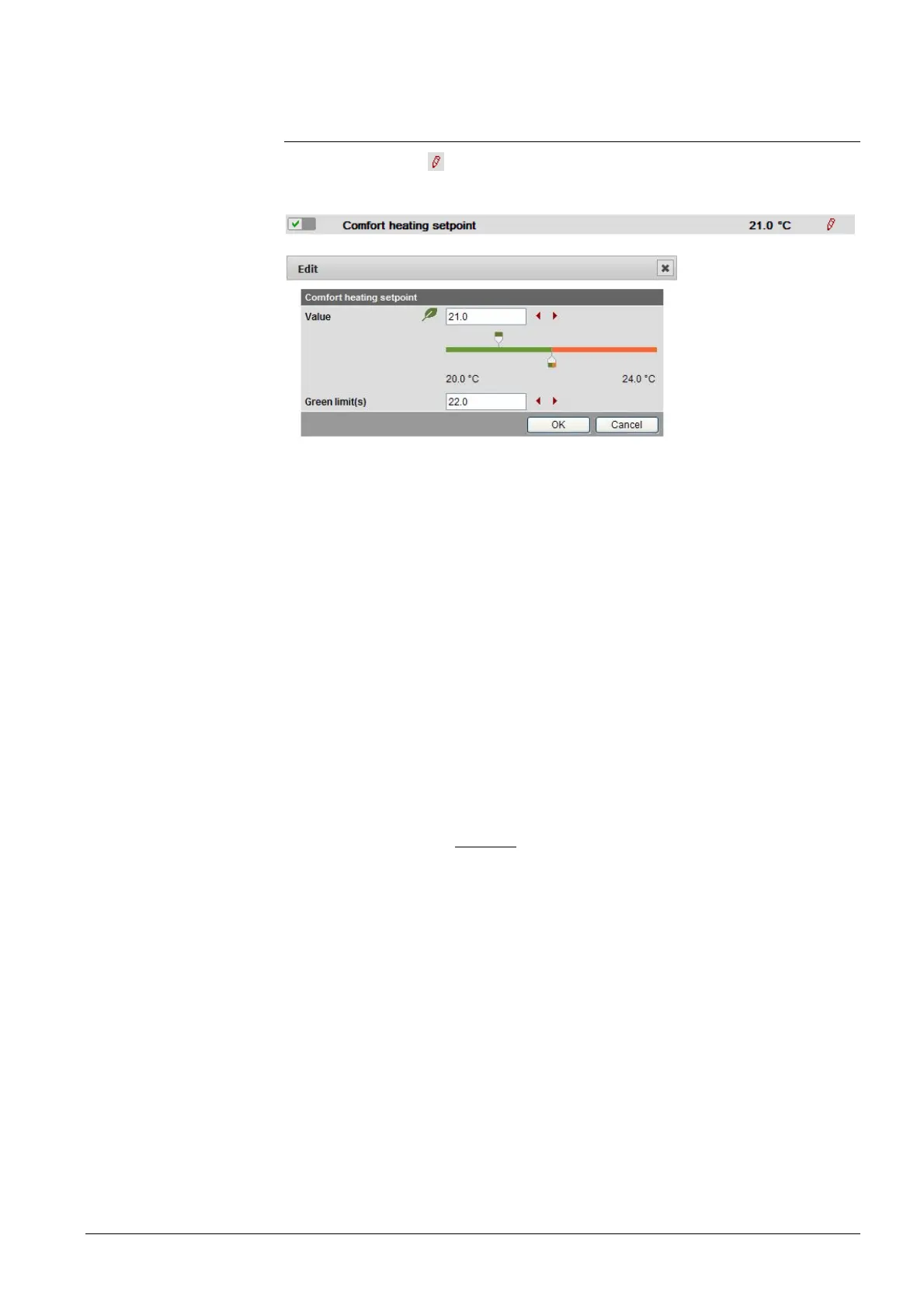

Example: Dialog box
Comfort heating setpoint
Contents
Value
Data point value
Setting range
Bars
Green limit(s)
