Siemens Web server OZW772... V6.0 CE1C5701en
Building Technologies Record consumption data 2015-10-12
The listed values are available for the first time on the QAX9…:
· For initial commissioning: After the connection test of WRI982 or automatically
after 4 hours.
· For meter replacement: After two connection tests of WRI982 or automatically
after 8 hours.
· Web Server copies data to "Last but one due date" (F2) from "Last due date"
each time a new "Last due data" is read from QAX9….
· Web Server maps the data in "Start value Web Server" (H) as soon as it
receives the first measured value from each meter.
6.2 Time ratios
· Consumption data from pulse meters is added up once an hour on WRI982.
· Consumption data from M-bus meters are read by WRI982 every 4 hours.
QAX9… reads the current values pending on WRI982 every 4 hours.
· Web Server OZW772… reads the current consumption on the QAX9… daily
between 5 and 10 am.
· Individual meter values are available immediately after reading.
· Reading is finished earlier accordingly on plants that do not fully use the
maximum number of 512 meters.
· The Synco 700 controller adds up the pulses every 5 minutes.
· Web Server reads the current values daily between 5 and 10 am.
· The KNX S-Mode values are transmitted by meters with COV to the OZW772…
· Current values, defined for a meter media, are taken over in the consumption
data file daily between 5 and 10 am.
Initialize QAX9…

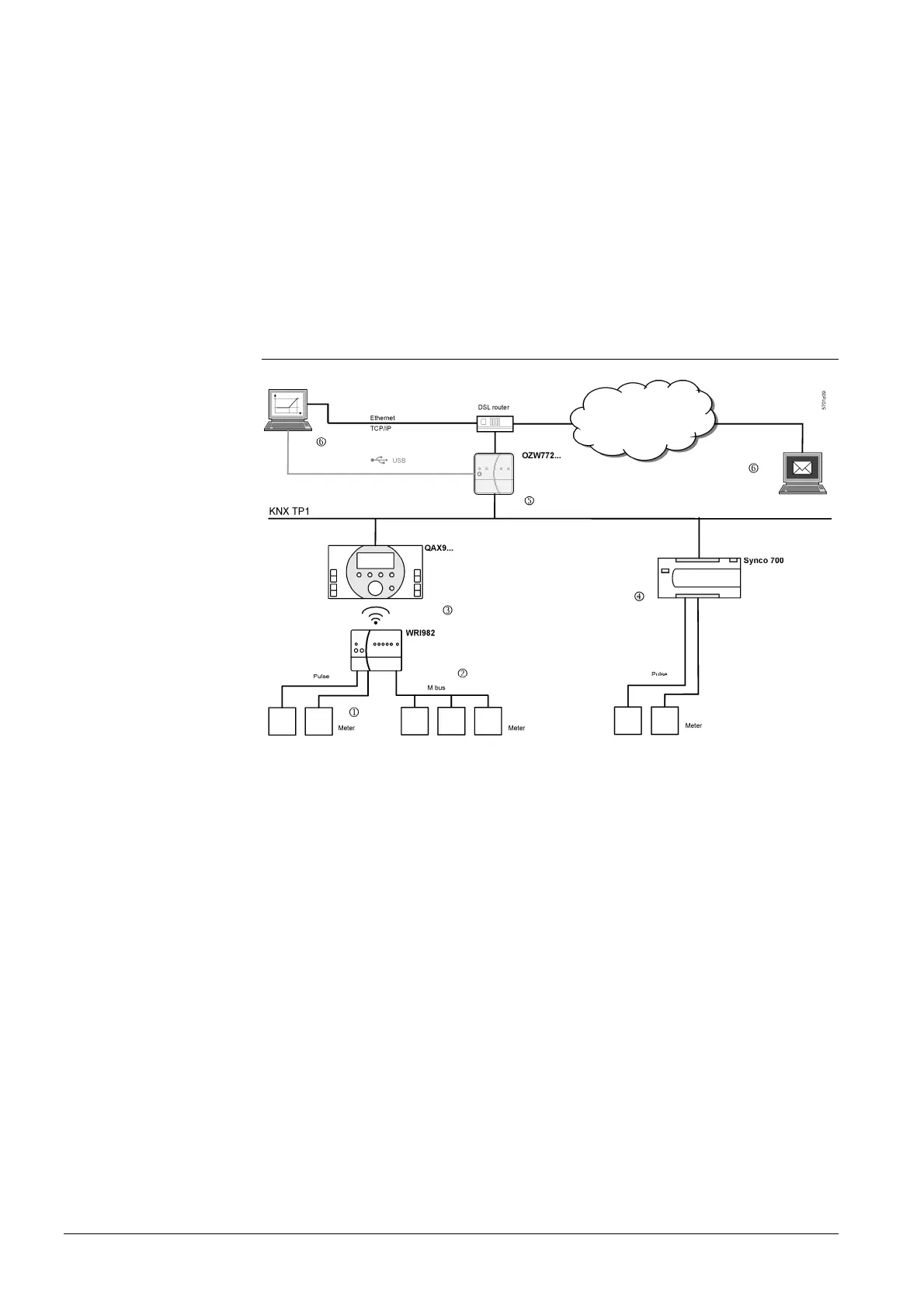

Web Server constructs
Current value
Meter à WRI982
WRI982 à QAX9…
QAX9… à OZW772…
Synco 700 à OZW772…
S-Mode à OZW772…
