9 / 176
Siemens Web server OZW772... V6.0 CE1C5701en
Building Technologies Overview 2015-10-12

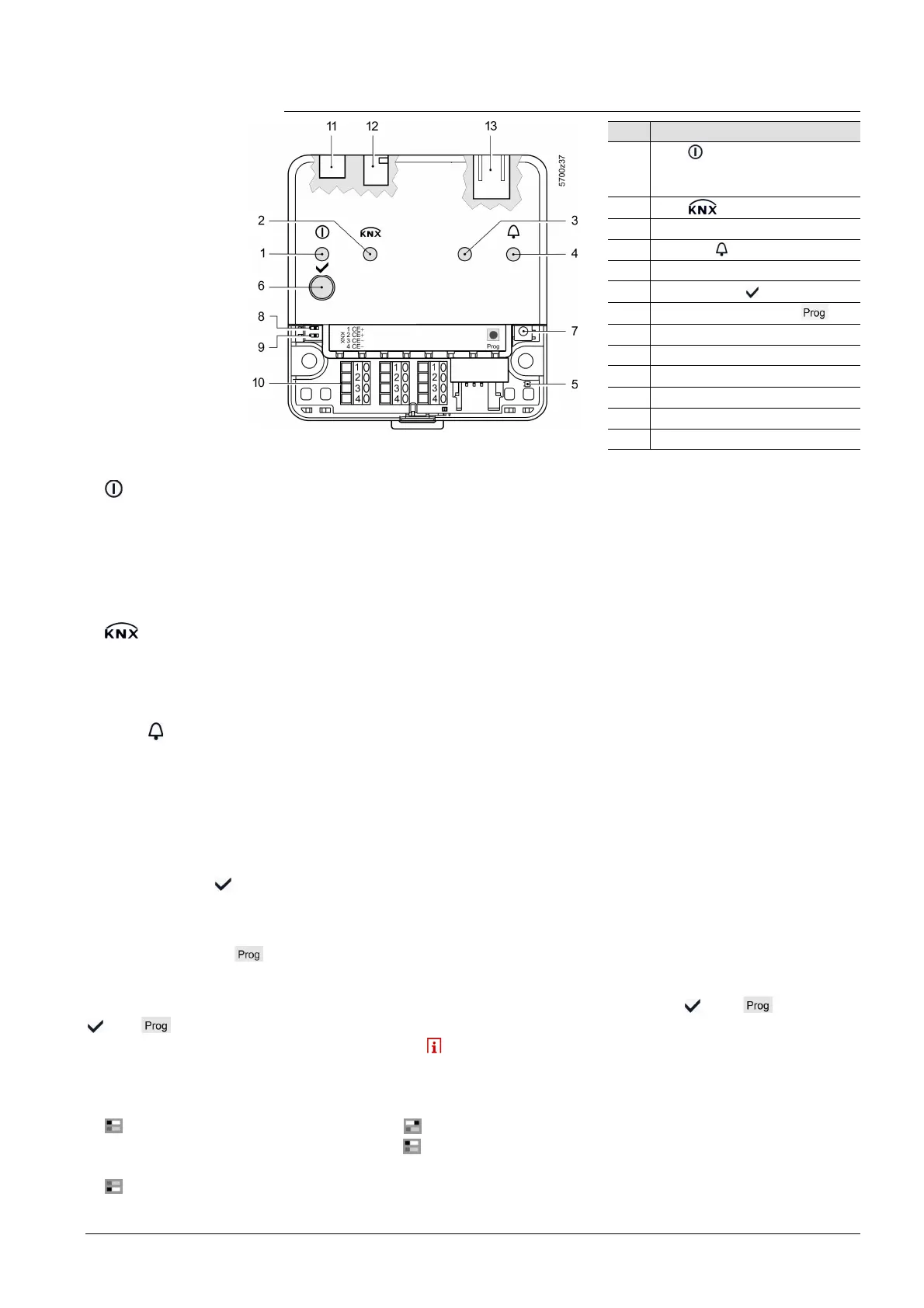

1.2 Web Server display and operating elements
Pos Designation
1 LED Operation, portal
connection display and "Energy
indicator"
2 LED
3 LED field bus 2 (reserve)
4 LED fault
5 LED addressing mode
6 Remote button
7
Addressing mode button
8 "Message suppression" switch
9 Switch 2 (no function)
10 KNX bus connection terminals
11 Operating voltage connection
12 USB connection Mini-B
13 Ethernet connection, RJ45 plug
· Dark No operating voltage DC 24 V
· Steady red Web Server starts operating system
· Flashing red Web Server starts application
· Steady green Web Server operational, "Energy indicator" = "Green leaf"
· Steady orange Web Server operational, "Energy indicator" = "Orange leaf"
· Flashing Web Server operational, connected to portal
green / orange (LED 0.8 s on, 0.2 s off)
· Dark No bus power
· Lit KNX operational
· Flashing Communication on KNX
· Dark No function
· Dark No fault (normal operating state)
· Lit Acknowledged fault
· Flashing Unacknowledged fault
· Dark KNX addressing mode off
· Lit KNX addressing mode o
· Short (< 2 s) Acknowledges fault message
· Long (> 6 s) Sends system report to fault e-mail Receivers
(not to consumption data and "Energy indicator" Receivers)
· Short (< 2 s) Press once: KNX addressing mode on
Press again: KNX addressing mode off
· Long (> 6 s) Simultaneously pressing the buttons
and restores
defaults
All configuration data and settings are reset. The
device list, plant diagrams, and unsent messages are
deleted. History data is not deleted.
· Position ON
Sending messages is suppressed
· Position OFF Sending messages permitted
· Switch settings No function
Overview
LED displays
1 (red/green/orange)
2 (green)
3 Field bus 2 (reserve)
4 Fault
(red)
5 Addressing mode (red)
Operating buttons
6 Remote button
7 Addressing mode
Button combinations
and
Switches
8
Message
suppression
9
DIP switch 2
