DCR-TRV725E/TRV730/TRV730E/TRV828/
TRV828E/TRV830/TRV830E
4-75 4-76
VTR FUNCTION SWITCH
FP-315

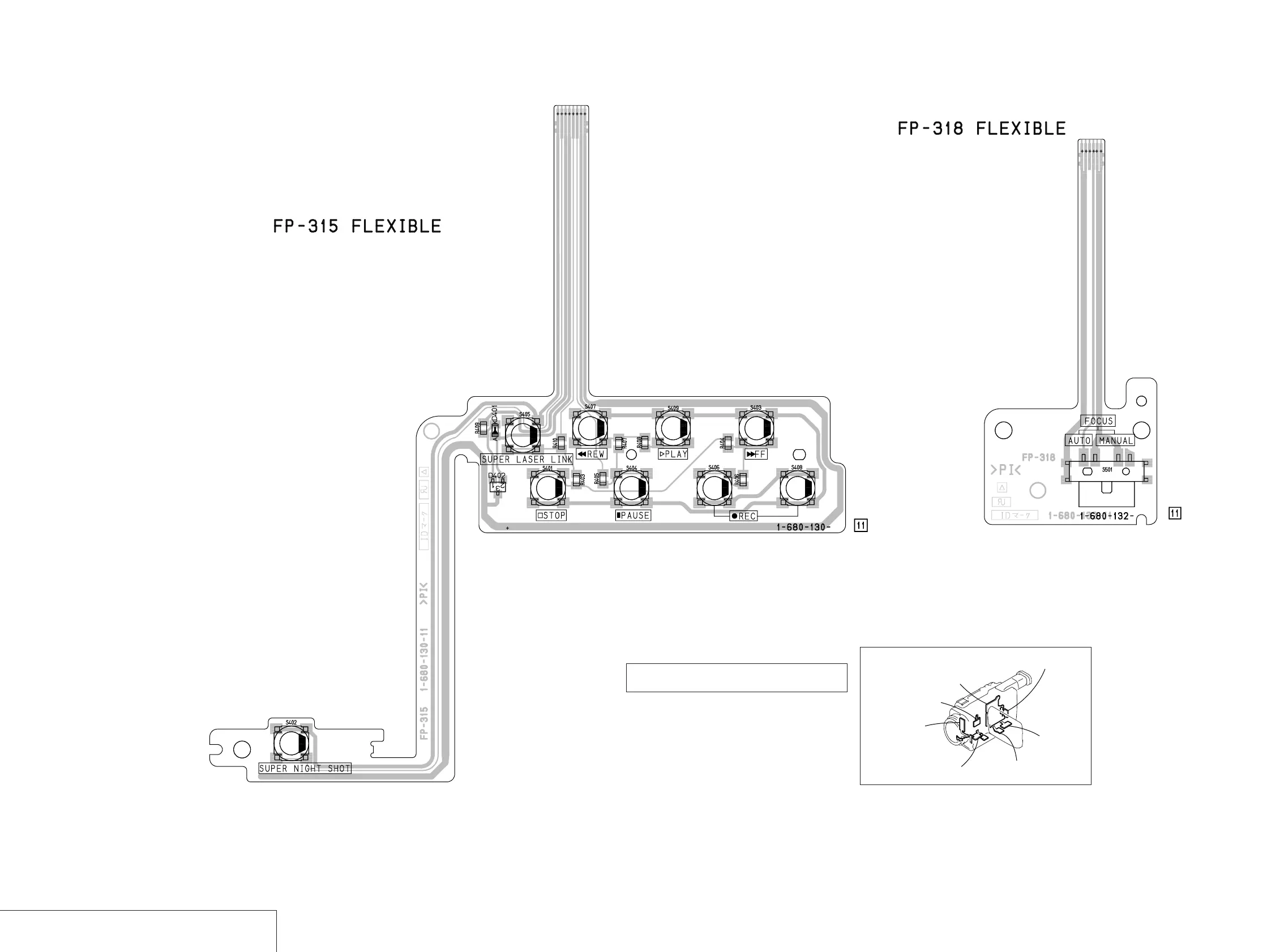

FP-315 (VTR FUNCTION SWITCH), FP-318 (FOCUS SWITCH) FLEXIBLE BOARDS
— Ref. No. FP-315, FP-318 Flexible Boards; 20,000 Series —
• Refer to page 4-72 for schematic diagram.
FOCUS SWITCH
FP-318
/
FU-155
(POWER SUPPLY)
FP-272
(LANC, DV IN/OUT)
FP-270
(S VIDEO, AUDIO/VIDEO)
FP-273
(MIC, HEADPHONES)
FP-318
(SWITCH)
MM-043
(MEMORY)
FP-332
(USB CONNECTOR)
• Refer to page 4-72 for schematic diagram.
For printed wiring boards
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
