2-15

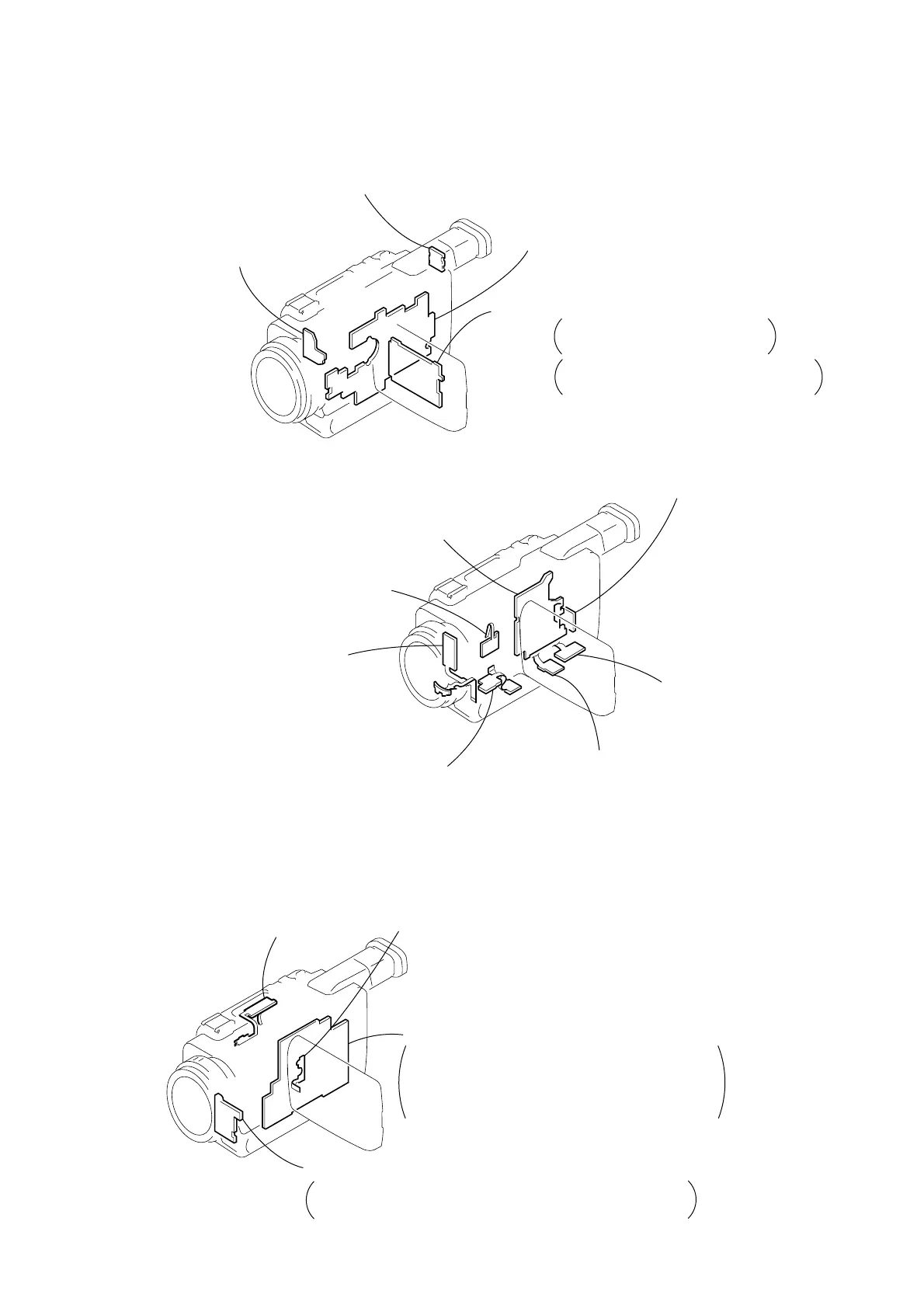

2-16.CIRCUIT BOARDS LOCATION
CD-329
(CCD IMAGER)
LB-071
(EVF BACK LIGHT)
CF-084
(EVF DRIVE, USER FUNCTION)
FU-155
(POWER SUPPLY)
FP-272
(LANC, DV IN/OUT)
FP-270
(S VIDEO, AUDIO/VIDEO)
FP-273
(MIC, HEADPHONES)
FP-318
(SWITCH)
FP-315
(VTR FUNCTION SWITCH)
FP-283
(PANEL REVERSE)
PD-138 (TRV730)
PD-139 TRV725E/TRV730E/TRV828/
TRV828E/TRV830/TRV830E
SI-030
STEADY SHOT, REMOTE COMMANDER RECEIVER,
LASER LINK
VC-262
CAMERA PROCESS, LENS DRIVE,
JPEG/MPEG PROCESS, VIDEO PROCESS,
DV PROCESS, MODE CONTROL, SERVO,
AUDIO PROCESS, DC/DC CONVERTER
MM-043
(MEMORY)
FP-332
(USB CONNECTOR)
RGB DRIVE, TIMING GENERATOR,
LCD DRIVE, BACK LIGHT DRIVE
