Sony DCR-TRV725E - 6.REPAIR PARTS LIST; 6-1. EXPLODED VIEWS; 6-1-1. OVERALL SECTION

6-1
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND : Canadian model
HK : Hong Kong model
AUS : Australian model
CN : Chinese model
KR : Korea model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
DCR-TRV725E/TRV730/TRV730E/TRV828/
TRV828E/TRV830/TRV830E

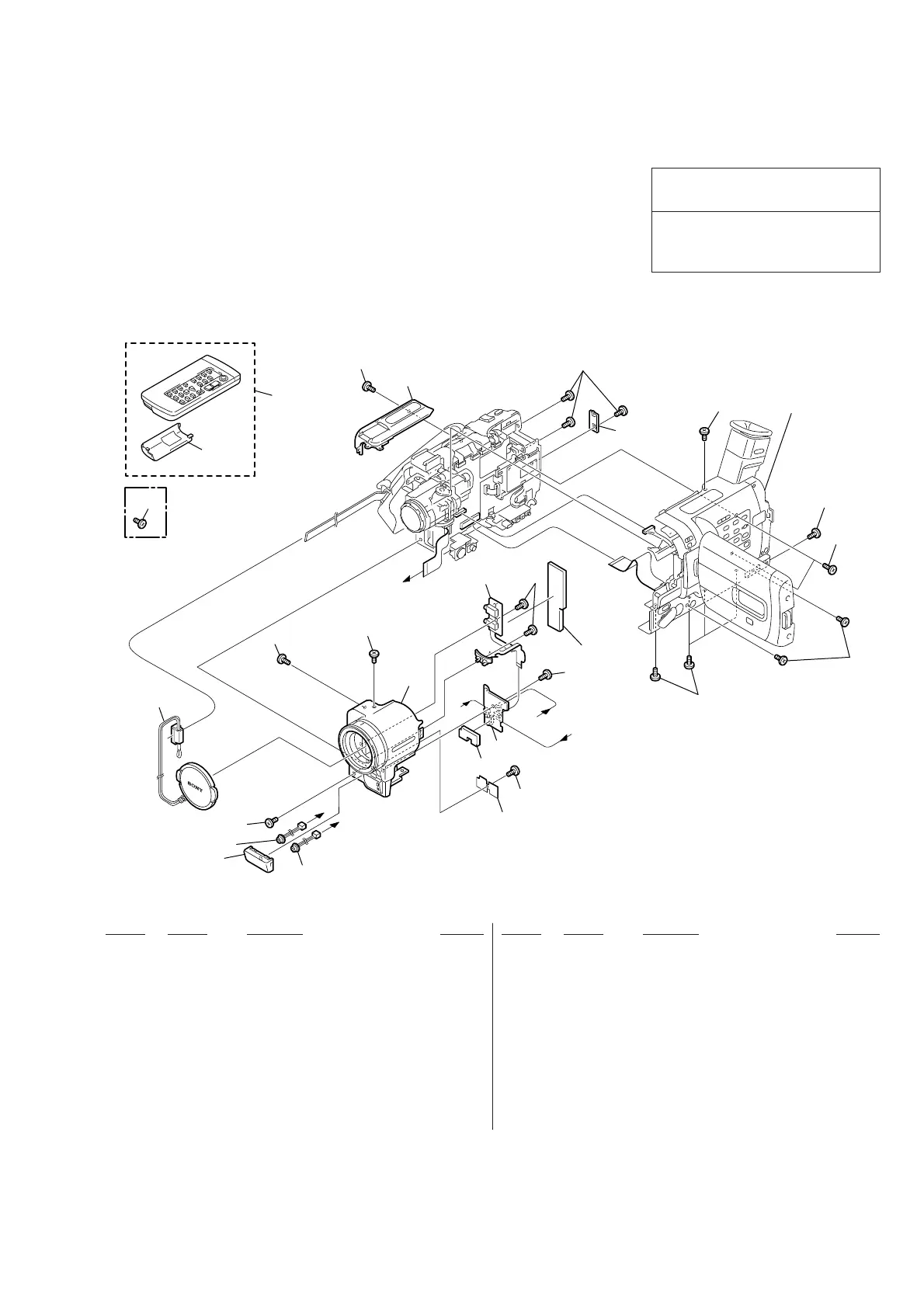

6-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3951-161-1 GRILLE ASSY, MICROPHONE
2 3-065-567-01 TAPPING (M1.7)
3 3-067-347-01 MI SCREW M2 (H)
4 X-3949-376-1 CAP (N) ASSY, LENS
5 X-3951-496-1 PANEL ASSY (M), FRONT
6 3-066-720-01 CUSHION (SI)
7 3-948-339-61 TAPPING
8 A-7074-759-A SI-030 (GT) BOARD, COMPLETE
(TRV730/TRV828/TRV830)
8 A-7074-816-A SI-030 (GM) BOARD, COMPLETE
(TRV725E/TRV730E/TRV828E/TRV830E)
9 A-7074-651-A FP-273 BOARD, COMPLETE
10 3-065-327-01 CUSHION (MI)
11 3-742-854-01 LID, BATTERY CASE (FOR RMT-814)
12 1-475-141-61 REMOTE COMMANDER (RMT-814)
13 3-065-326-01 CABINET (UPPER)
14 3-065-325-01 LID(BT), CPC
15 3-989-134-01 SCREW (T), L LOCK (TRV830/TRV830E)
MIC901 1-542-312-11 MICROPHONE (Lch)
MIC902 1-542-312-11 MICROPHONE (Rch)
Digital 8
S
O
N
Y
A
C
C
A
B
B
3
3
1
3
13
3
3
2
3
7
8
6
10
3
14
7
3
4
3
5
9
7
MIC902
MIC901
not supplied
12
11
Cabinet (R) section
(See page 6-4)
15
Screw fixing the printer
(PVP-MSH)
during transportation.
(TRV830/TRV830E)
