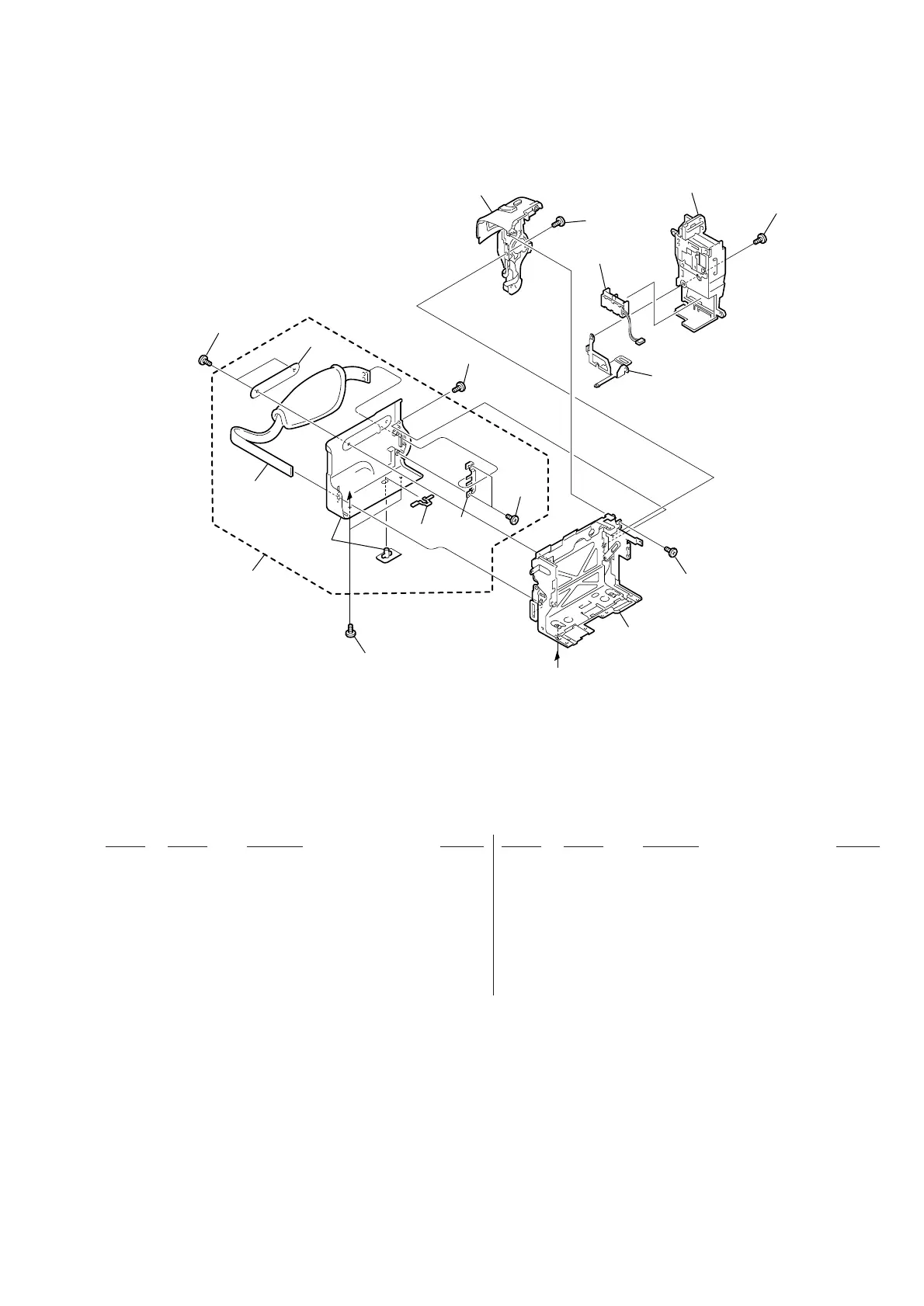

6-1-3. CABINET (L) SECTION-2
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 X-3951-159-1 CABINET (L) ASSY
102 3-052-815-01 BELT (ES), GRIP
103 3-067-347-01 MI SCREW M2 (H)
104 3-065-308-01 LABEL (L)
105 3-978-765-01 SLIDER, G LOCK
106 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
107 1-476-415-11 SWITCH BLOCK, CONTROL (SS-1380)
(TRV730/TRV730E/TRV828/TRV828E/TRV830/TRV830E:E,HK)
107 1-476-415-31 SWITCH BLOCK, CONTROL (SS-1380)
(TRV725E/TRV830E:AEP,UK)
108 X-3951-495-1 FRAME ASSY (M), CS
* 109 3-065-324-01 SHEET METAL (LOWER), STRAP
110 X-3951-157-1 PANEL ASSY, BATTERY
111 3-065-567-01 TAPPING (M1.7)
112 4-974-725-01 SCREW (M1.7X2.5), P
BT901 1-694-772-11 TERMINAL BOARD, BATTERY
A
A
not
supplied
not
supplied
103
112
102
103
111
107
110
109
105
104
103
101
103
BT901
106
108
