6-4

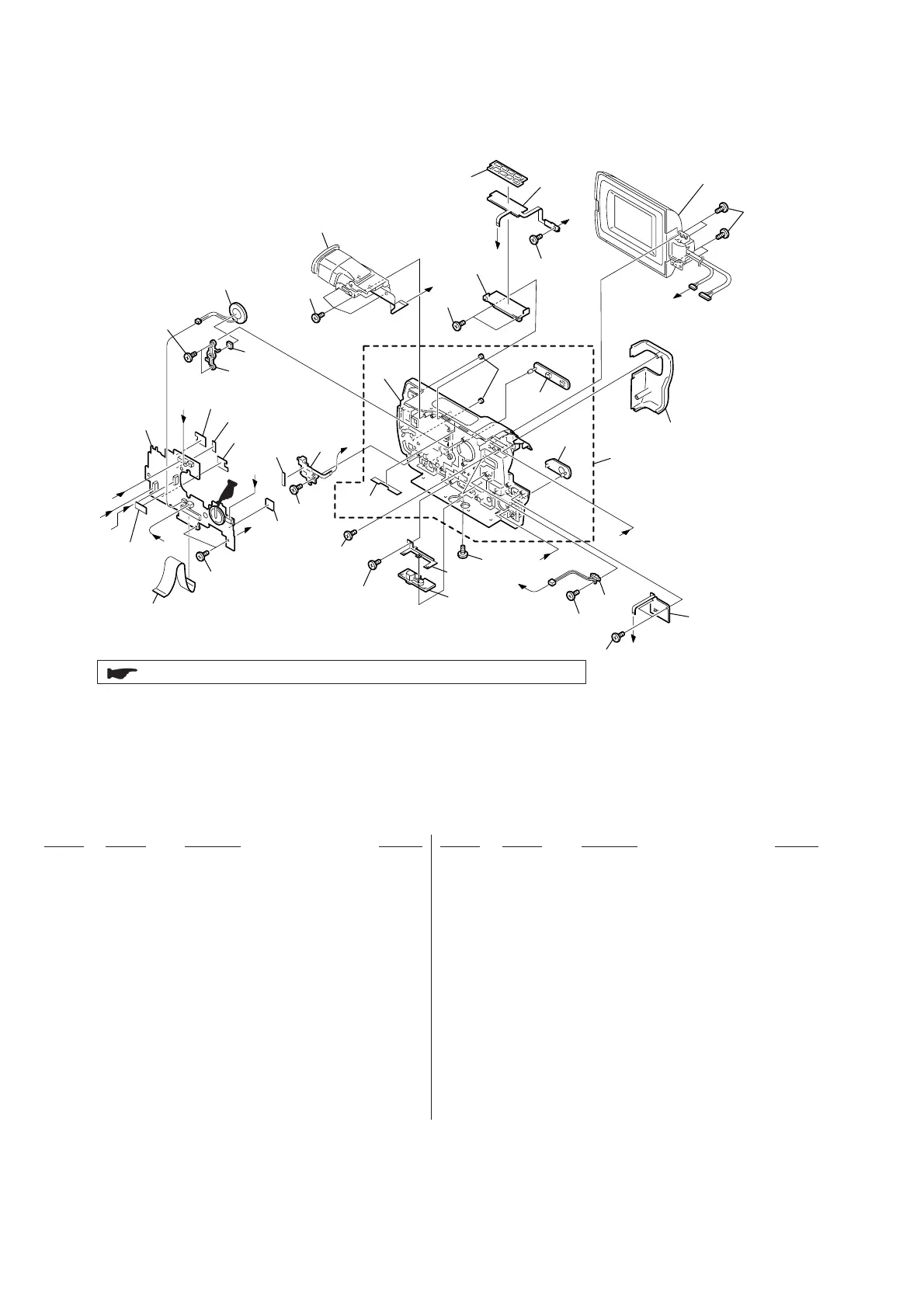

6-1-4. CABINET (R) SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 1-791-948-11 CABLE, FLEXIBLE FLAT (FFC-001)
152 A-7074-756-A CF-084 (SB) BOARD, COMPLETE
153 3-948-339-61 TAPPING
154 1-476-416-11 SWITCH BLOCK, CONTROL (SE-1380)
* 155 3-065-398-01 RETAINER, SPEAKER
* 156 3-058-658-01 SPACER (101), SPEAKER
157 3-067-272-01 HOLDER (M), VTR
158 3-067-271-01 BUTTON (M), VTR
159 A-7074-761-A FP-315 BOARD, COMPLETE
160 A-7074-762-A FP-318 BOARD, COMPLETE
161 3-067-301-01 COVER R (M), HINGE
162 3-067-347-01 MI SCREW M2 (H)
163 3-959-978-02 CUSHION, PANEL
164 X-3951-490-1 CABINET R (530) ASSY
(TRV730/TRV828/TRV830)
164 X-3951-564-1 CABINET R (531) ASSY (TRV725E)
164 X-3951-565-1 CABINET (R) (531R) ASSY
(TRV730E/TRV828E/TRV830E)
165 3-065-353-01 COVER (B), JACK
166 3-065-352-01 COVER (F), JACK
167 3-067-273-01 RETAINER (M), TRIPOD
168 3-065-373-01 SCREW (Y), TRIPOD
* 169 3-065-521-01 SHEET, MUFFLE
170 3-941-343-21 TAPE (A)
171 3-067-824-01 SHEET (M1), CF ELECTROSTATIC
172 3-068-833-01 SPACER, CULUPON
173 3-067-825-01 SHEET (M2), CF ELECTROSTATIC
S910 1-771-848-11 SWITCH, PUSH
SP901 1-529-590-11 SPEAKER (2.0CM)
CF-084
Board
A
D
B
D
C
F
F
I
I
E
E
C
A
B
H
H
152
171
171
166
162
S910
151
173
170
158
159
153
153
153
160
153
153
153
153
153
154
157
161
164
165
163
167
168
153
LCD section
(See page 6-5)
EVF section
(See page 6-6)
153
not
supplied
not
supplied
169
172
156
155
153
SP901
: BT101 (Lithium battery) CF-084 board on the mount position. (See page 4-68)
