DCR-TRV725E/TRV730/TRV730E/TRV828/
TRV828E/TRV830/TRV830E
4-64
MEMORY
MM-043

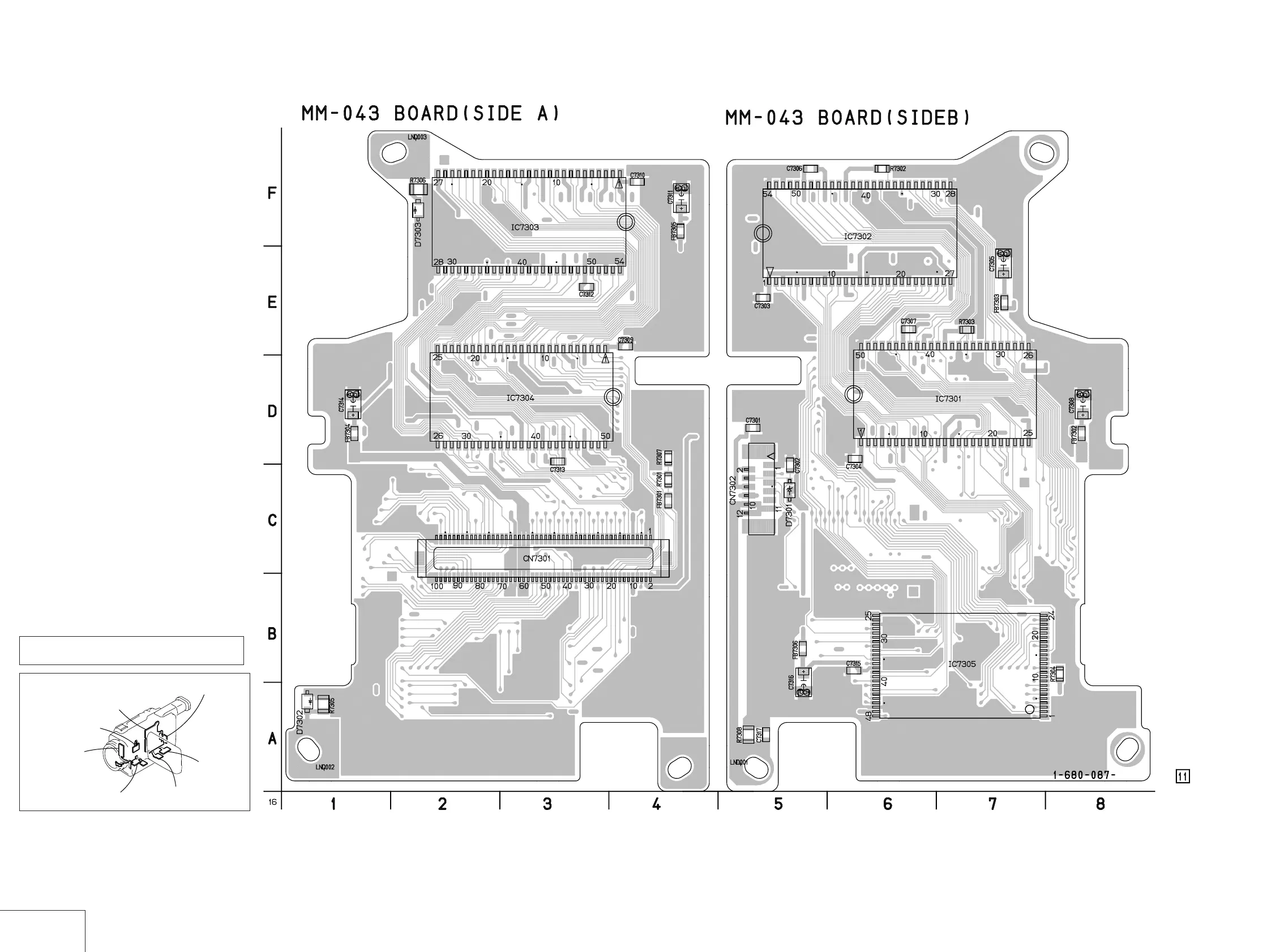

MM-043 (MEMORY) PRINTED WIRING BOARD
— Ref. No. MM-043 Board; 10,000 Series —
For printed wiring boards
• Refer to page 4-105 for parts location.
• MM-043 board consists of multiple layers. However,
only the sides (layers) A and B are shown.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
4-63
FU-155
(POWER SUPPLY)
FP-272
(LANC, DV IN/OUT)
FP-270
(S VIDEO, AUDIO/VIDEO)
FP-273
(MIC, HEADPHONES)
FP-318
(SWITCH)
MM-043
(MEMORY)
FP-332
(USB CONNECTOR)
To Next Page
