Sony SA-WST9 User Manual

HT-ST9
24

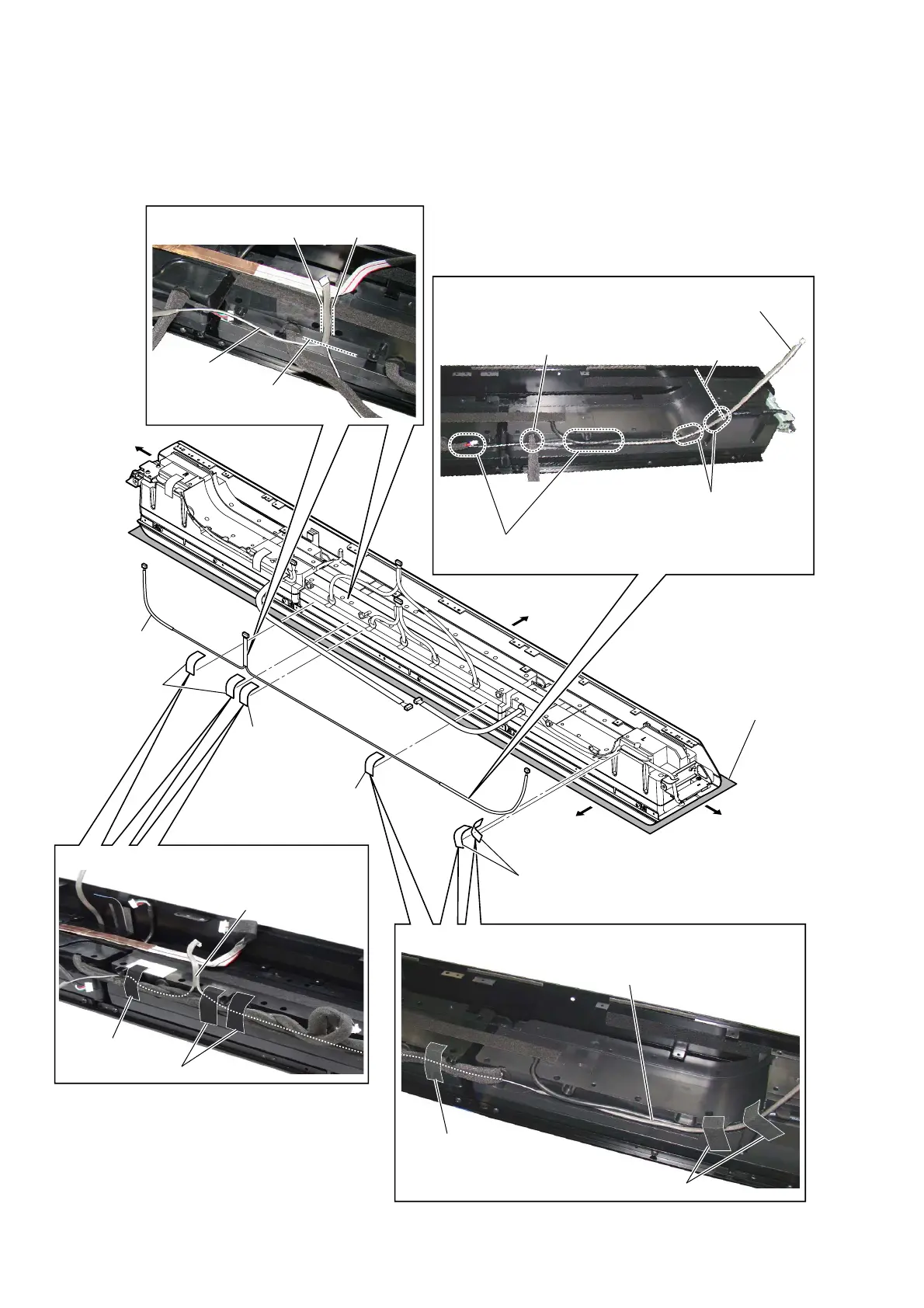

2-15. RF MODULATOR BLOCK-1
• Continued on 2-16 (page 25).
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
– Rear view –
1 two cushions
(H15)
3DVWLQJSRVLWLRQRIWKHFXVKLRQ+
guide line
guide line
guide line
:LUHVHWWLQJ
2 cushion
(H15)
2 two cushions
(H15)
1 cushion
(H15)
3 REPEATER_REP
board cable
two cushions (H15)
cushion (H15)
two cushions (H15)
cushion (H15)
3DVWLQJSRVLWLRQRIWKHFXVKLRQ+
REPEATER_REP
board cable
Right side
Top side
Left side
Bottom side
:LUHVHWWLQJ
guide line
REPEATER_REP1
board cable
REPEATER_REP2
board cable
Note 2:
When installing the REPEATER_REP2
board cable, pressed into the groove.
Note 3:
When installing the REPEATER_REP2
board cable, pass the underneath of
the L-ch speaker cable.
REPEATER_REP2
board cable
Note 2:
When installing the REPEATER_REP2
board cable, pressed into the groove.
